Key Features & Benefits
1. 48×25G SFP28 + 8×100G QSFP28 for scalable bandwidth.
2. 4.0 Tbps switching for line-rate L2/L3 performance.
3. Flexible breakout: 50G, 25G, 10G for scalable connectivity.
4. Scalable fabrics with VXLAN/EVPN and MLAG.
5. Strong Security Features (ACL, DHCP Snooping, ARP Inspection)
6. Redundant power ensures high reliability and uptime.
PRODUCT CATEGORIES
32 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 2S+ 32QSFP56-DD AC D
16 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 16S+ 4QSFP28 AC D
24 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 24S+ 6QSFP28 AC D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S+ 6QS+ XX D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S+ 6QSFP28 AC D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S+ 8QSFP28 XX D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S++ 8QSFP28 AC D
32 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 2S+ 32QSFP28 XX D
Introduction

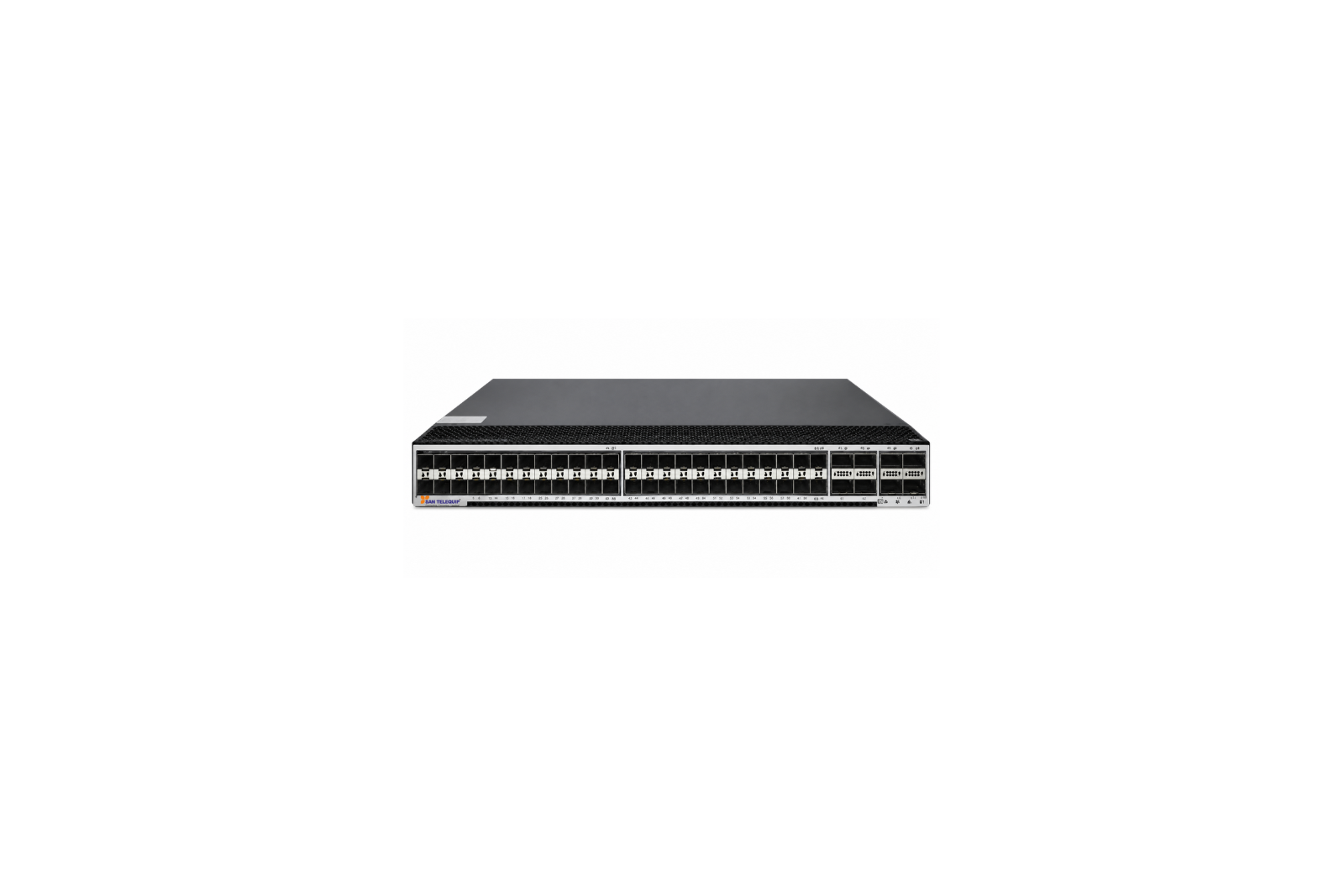

The IESMGR 10000 48S++ 8QSFP28 XX D is an enterprise-grade platform engineered for these rigorous ToR and spine environments. Within its compact 1RU chassis, it delivers high-performance Layer 2 and Layer 3 switching capabilities, specifically optimized for modern 25G/100G leaf-leaf or leaf-spine architectures. The "XX" designation indicates the platform's power flexibility, allowing architects to deploy the same high-performance logic across both AC and DC power infrastructures.
Unlike standard enterprise switches, this "Industrial" variant is hardened for environments where thermal management is critical. With an operating temperature range of 0°C to 55°C and intelligent, high-velocity cooling, it bridges the gap between high-capacity throughput and rugged operational reliability. This makes it an ideal foundation for scalable fabrics in high-performance computing (HPC) and multi-tenant cloud data centers.
Forwarding Rate: 2000 Mpps
MAC Table: 128K entries
VLAN Capacity: 4K VLAN
8 × 40G/100G QSFP28 uplink ports
1 × RJ45 10/100/1000Base-T management port
1 × RJ45 console port; 1 × USB Type-A port
AC Input: 100–240V (Range 90–264V)
DC Input: -48V to -60V (Range -36V to -72V)
Dual hot-swappable PSU (1+1) supporting simultaneous AC/DC
Dimensions: 440 × 400 × 44 mm
Weight: < 8.1 kg
Humidity: 10%–90% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IESMGR 10000 48S++ 8QSFP28 DC D | – | ||
| IESMGR 10000 48S++ 8QSFP28 AC D | – |
