Key Features & Benefits
1. 24 × 10G SFP+ + 6 × 100G QSFP28 ports for scalable high-density connectivity
2. 2.18 Tbps switching capacity for heavy traffic performance
3. Flexible QSFP28 breakout for scalable network expansion
4. Redundant PSU and fan system for high reliability
5. Advanced L2/L3 features with VLAN, IPv4/IPv6, and ECMP
6. Strong security with ACL, DoS protection, and IEEE 802.1X authentication
PRODUCT CATEGORIES
32 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 2S+ 32QSFP28 XX D
16 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 16S+ 4QSFP28 AC D
32 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 2S+ 32QSFP56-DD AC D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S+ 6QS+ XX D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S+ 6QSFP28 AC D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S+ 8QSFP28 XX D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S++ 8QSFP28 AC D
48 Port Managed Data Center Industrial Ethernet Switch
IESMGR 10000 48S++ 8QSFP28 XX D
Introduction

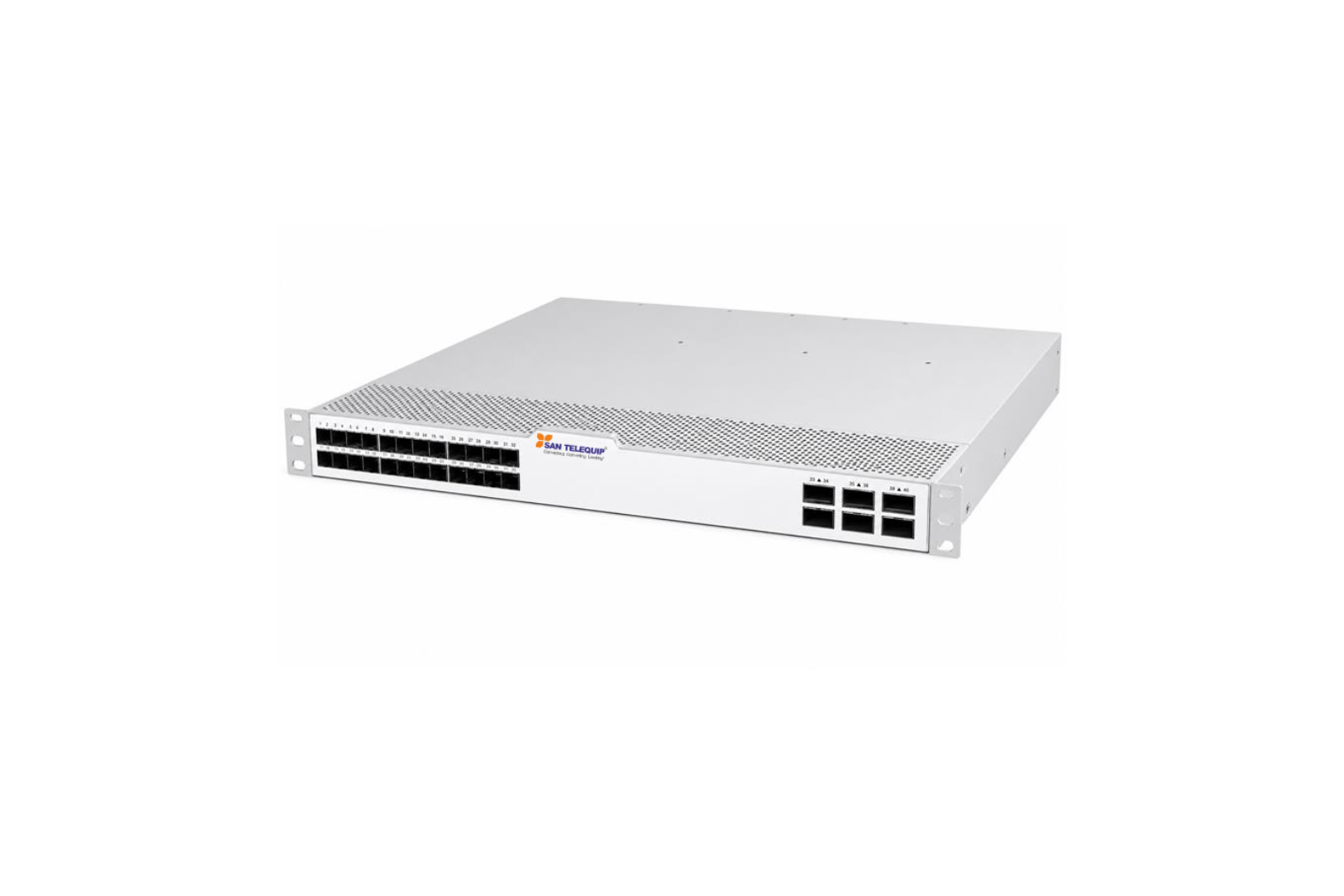

IESMGR 10000 24S+ 6QSFP28 AC D is specifically architected to address these bottlenecks, providing the massive port density and switching bandwidth necessary to sustain high-performance enterprise and provider-grade environments.
The IESMGR 10000 serves as a high-radix foundation for scalable cloud infrastructure, optimized for wire-speed data processing across a diverse range of port speeds. By integrating 10G SFP+ and 100G QSFP28 interfaces within a compact 1U chassis, this platform enables architects to maximize rack-unit efficiency without sacrificing throughput or processing headroom. Its dual-chip architecture bifurcates the control and data planes, ensuring that intensive management tasks do not interfere with the high-speed packet forwarding required for mission-critical L2/L3 applications.
Layer 3 Features: IPv4/IPv6 Routing, ECMP (Equal-Cost Multi-Pathing), ARP, IPv4/IPv6 Tunneling
Security: IEEE 802.1X Port Authentication, ACL (L2-L4), IP Source Guard, ARP Inspection, DoS Protection, RADIUS, TACACS+
Management: SNMP v1/v2/v3, sFlow, Syslog, LLDP Discovery, SSH, SSL, FTP/TFTP
Forwarding Rate: 0.6 Gpps
MAC Table: 32K Entries
VLAN Capacity: 8K
ePorts: 8K
Multicast Groups: 16K
QoS Profiles: 1K
Spanning Tree Instances: 1K
IPv4 / IPv6 Routing Table: 16K / 8K
ECMP / ARP Table: 8K / 32K
Packet Buffer: 6 MB
Jumbo Frame: 9216 BytesK
100G QSFP28 Ports: 6
OOB Management: 1 × RJ45 (Out-of-Band)
Console Port: 1 × RJ45 Console
Storage/Service Port: 1 × USB
Traffic Monitoring: sFlow (Hardware-based sampling)
Logging: Local and Remote Syslog support
Access Methods: CLI, Serial Console, Secure Shell (SSH)
QSFP28 Slots: 100G Native; Breakout to 40G, 4 × 25G, or 4 × 10G via breakout cables
Transmission Distance: Dependent on the specific SFP+/QSFP28 transceiver optics utilized
Redundancy Configuration: 1+1 Redundant, Hot-swappable
Input Voltage: 110–240V AC, 50/60Hz
PSU Capacity: 350W (Per Module)
Maximum Power Consumption: ≤ 250W
Dimensions (W x D x H): 445 × 469 × 44 mm
Weight: 9.7 kg
Cooling: 5 Fans (4+1 Redundant, Hot-swappable)
Airflow: Rear-side pluggable fan and PSU modules
Storage Temperature: -40°C to 70°C
Relative Humidity: 5% to 95% (Non-condensing)
