Introduction

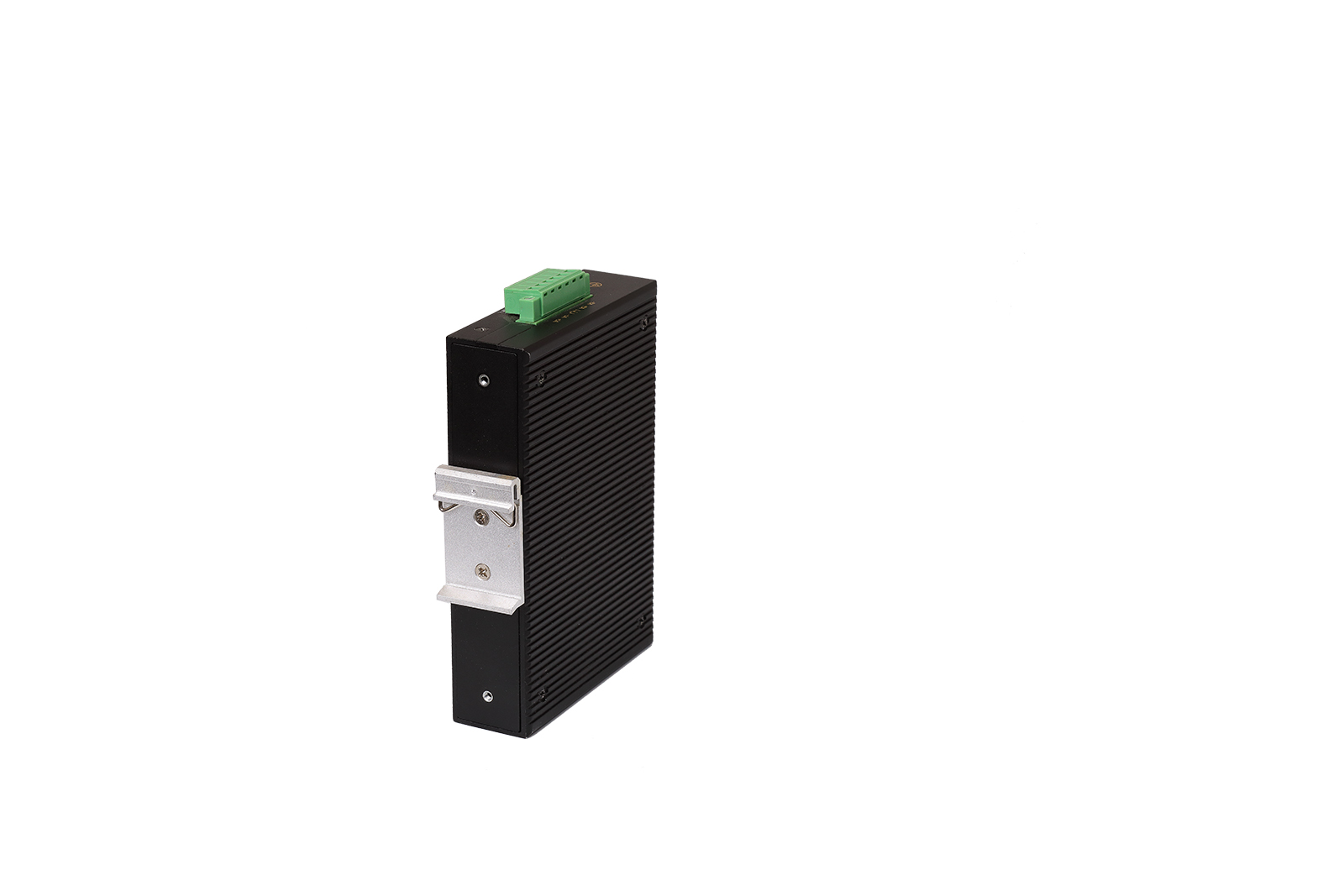

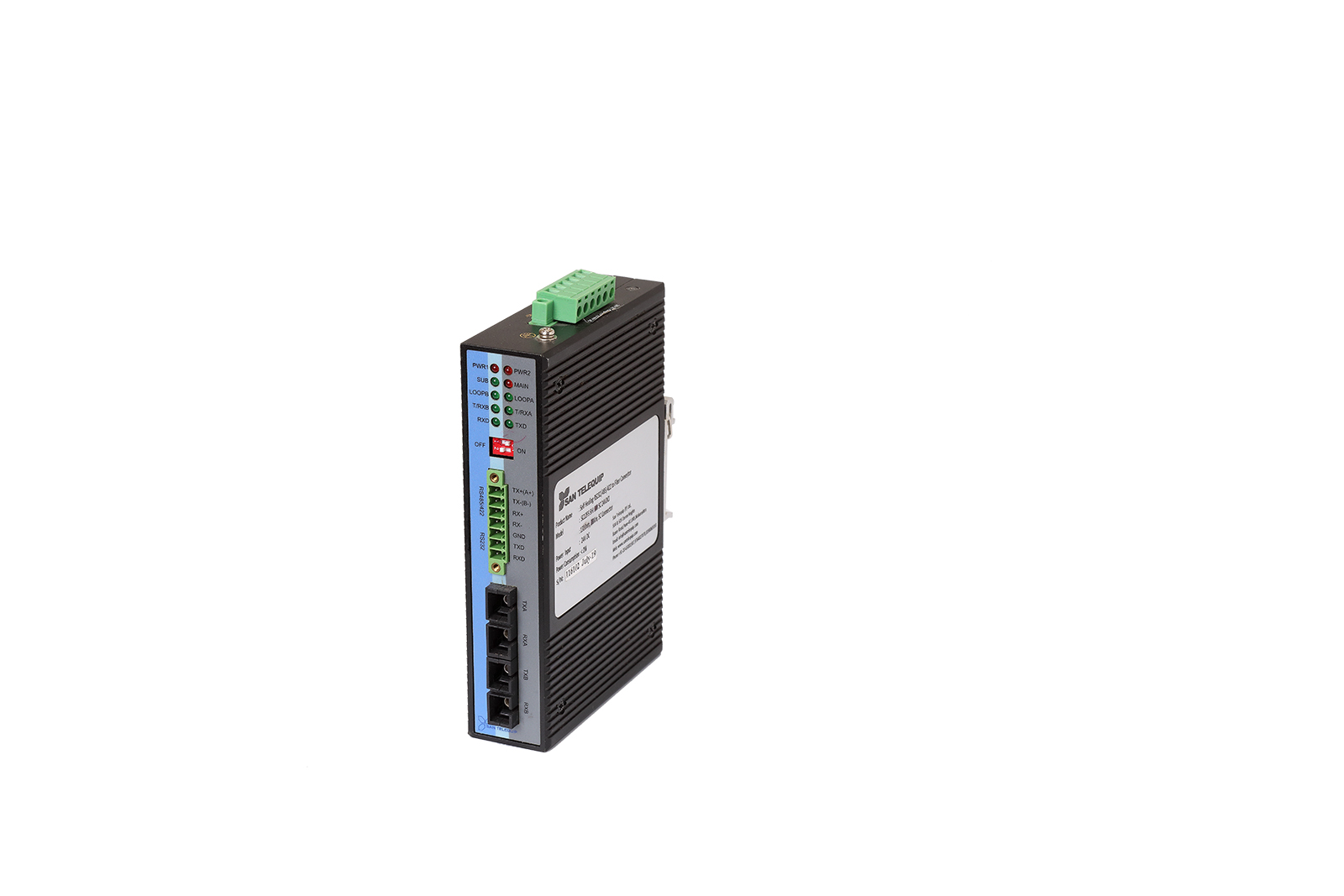

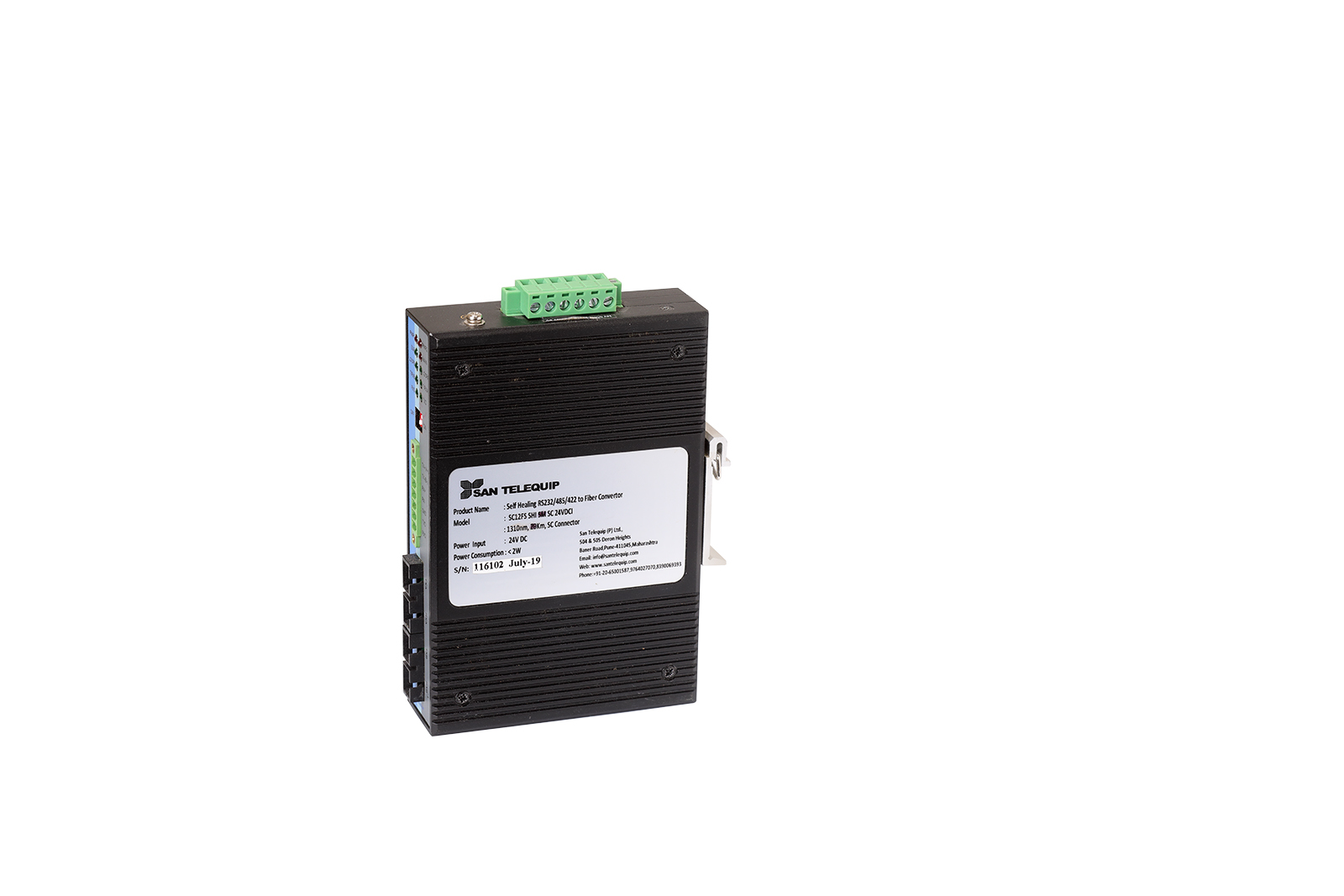

Traditional serial communication protocols, while robust, are inherently limited by distance and are vulnerable to single points of failure. In multi-drop configurations, a single cable break can halt communication across an entire segment, making such setups unsuitable for critical applications where data integrity and continuous operation are paramount. The SC12FS SH I is engineered specifically to overcome these limitations by transforming a standard serial connection into a highly resilient, long-distance fiber optic network.

The SC12FS SH I achieves this by creating a redundant, self-healing optical fiber ring for serial devices. By converting RS232, RS485, or RS422 signals for transmission over dual fiber optic ports, it effectively multi-drops serial devices on a fiber backbone. This architecture provides three fundamental advantages: it dramatically extends communication from the 1.2 km RS485 limit to distances as great as 100 km, it provides complete immunity to electrical noise and interference, and most critically, it ensures uninterrupted data flow. If the primary fiber path is compromised—due to a fiber break, node power loss, or equipment failure—the system automatically reroutes communication through the secondary path, maintaining network uptime without data loss. This architecture operates in a master/slave configuration and requires a minimum of three SC12FS SH I units to establish a fully redundant, self-healing ring.
