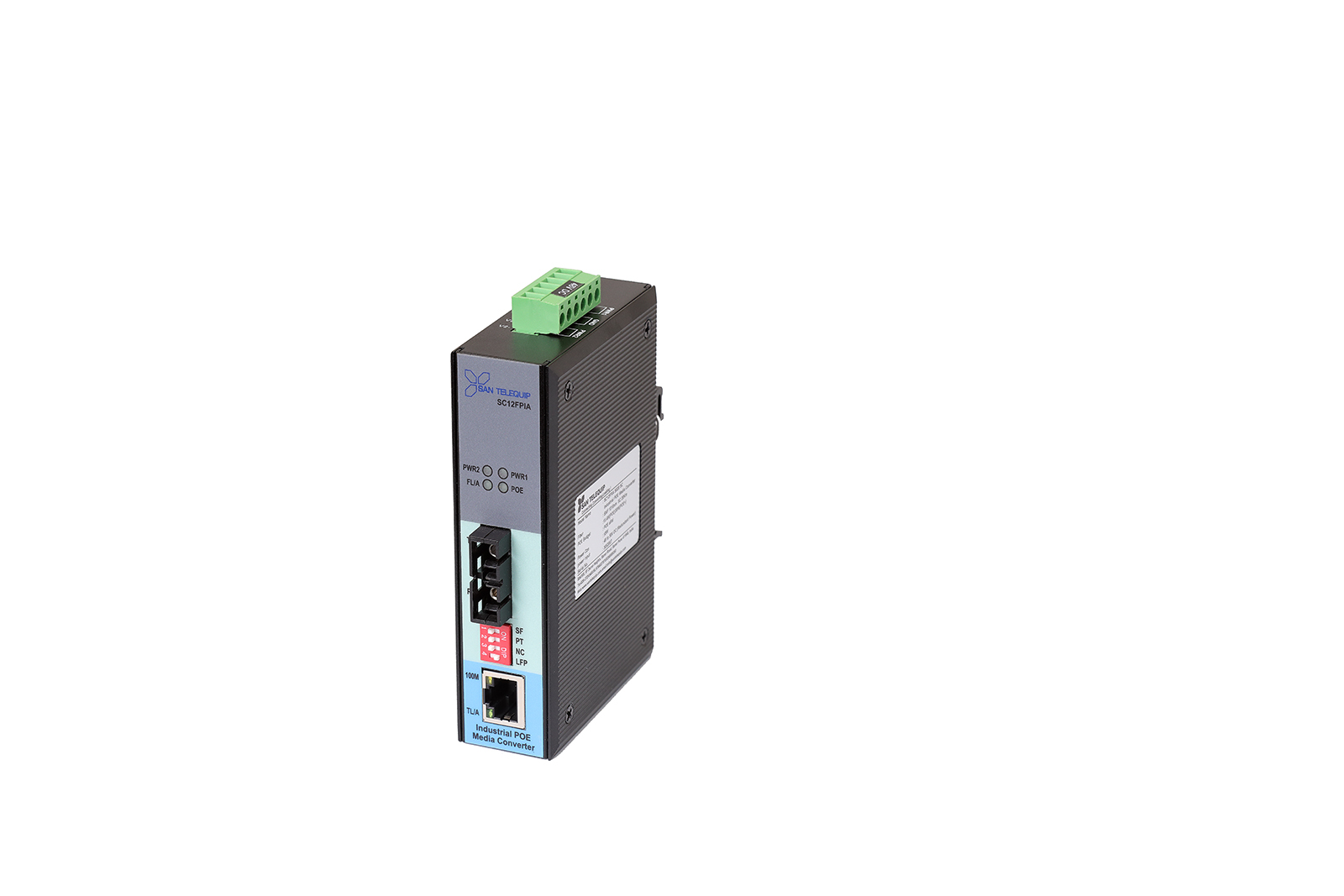

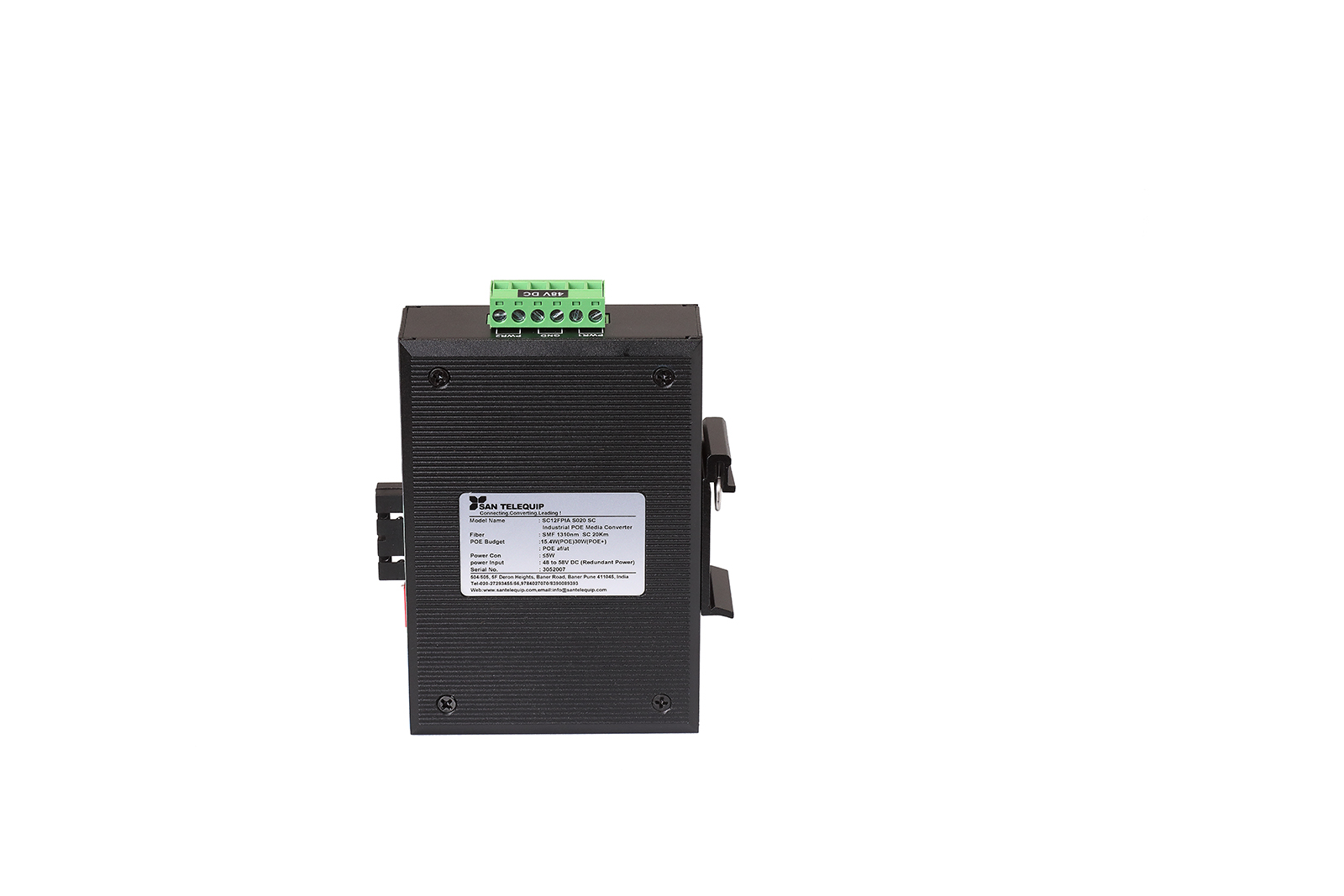

- SC12FPIA
Key Features & Benefits
1. Seamless Integration of Power and Data via PoE Compliance
2. Extreme Distance Network Extension via Fiber Conversion
3. Ruggedization for Harsh Industrial Environments
4. High-Reliability, Redundant Power System
5. Advanced Data Integrity and Throughput Features
6. Built-in Link Management and Synchronization Functions
7. Installation Flexibility and Comprehensive Certifications
PRODUCT CATEGORIES
Introduction
The core function of the SC12FPIA is to convert 10/100Base-TX Fast Ethernet signals from twisted-pair copper cable to 100Base-FX fiber optic cable. Its dual-capability design allows it to not only transmit data but to simultaneously inject Power over Ethernet (PoE) down the same copper cable. This enables the operation of remote devices like IP cameras, wireless access points, and VoIP phones without requiring a separate, local power source. The converter is fully compliant with IEEE 802.3af/at standards, ensuring interoperability and safe power delivery to connected equipment.
Designed for maximum deployment flexibility, the SC12FPIA can extend network distances from 2km using multi-mode fiber up to 120km with single-mode fiber, depending on the model. Its industrial-grade construction supports both DIN-rail and wall-mount installation, making it suitable for a wide range of industrial control cabinets and field applications. Furthermore, its full compatibility with long packets (jumbo frames) ensures seamless integration and high performance in modern network infrastructures.
MAC Address Size: 2Kbit
Packet Buffer Size: 1Mbit
Time Delay: <10us
Jumbo Frame: 9k bytes
Fiber Port: SC (default), FC/ST (Optional)
Power Connector: Terminal Block
PoE Pin Out: Mode A, End Span (Pins 1,2,3,6 for Data + Power)
FL/A: ON: Fiber Connected; Active: Data Transmitting
TL/A: ON: Copper Connected; Active: Data Transmitting
100M: 100M Data Rate
POE: Power Working
Fiber (Multi-mode): 2km
Fiber (Single-mode): 20/40/80/100/120km
Power Consumption: ≤5W
PoE Budget: 15.4W (PoE), 30W (PoE+)
Protection: Overload Current, Reverse Polarity
Ingress Protection: IP-40

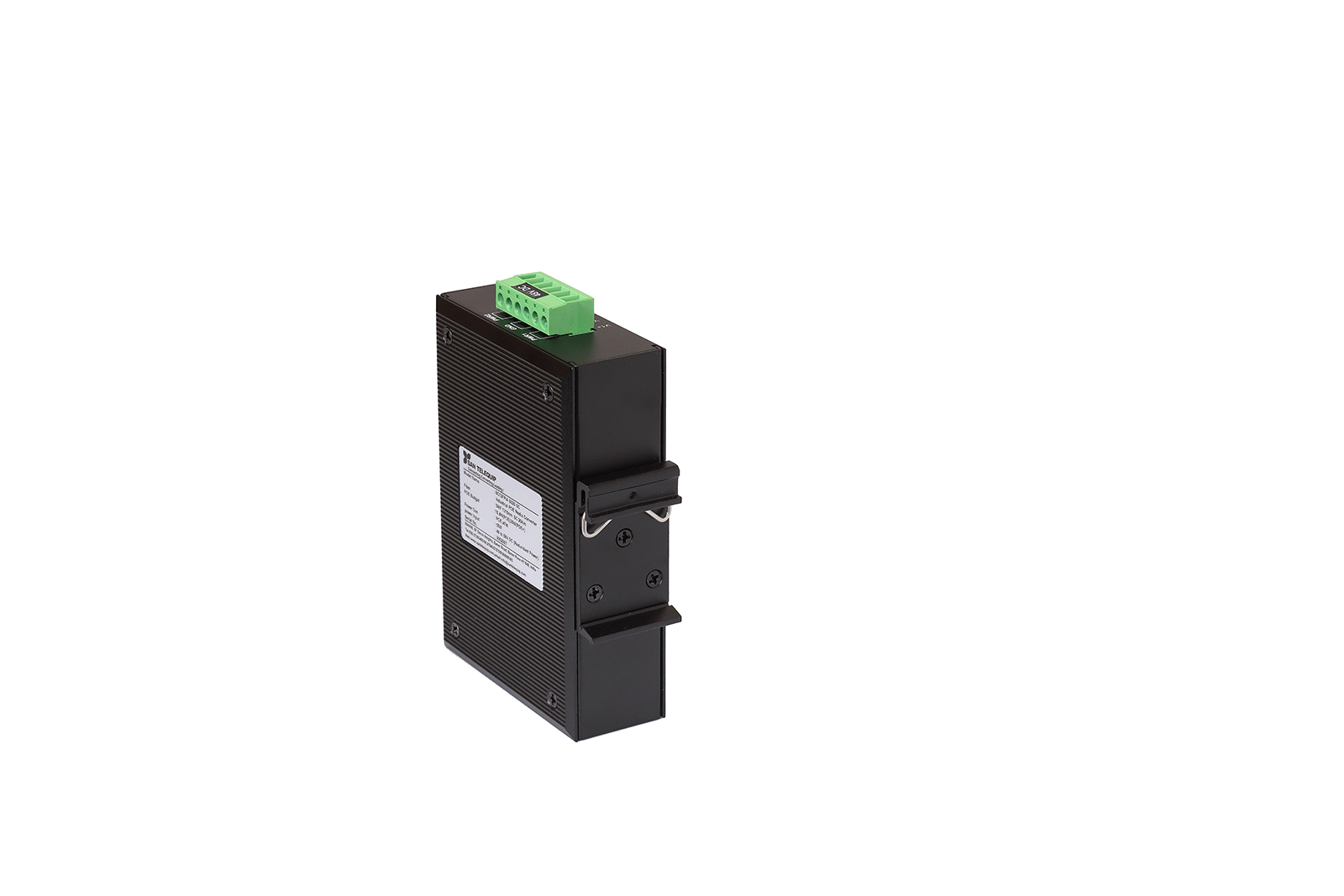

Installation: DIN-rail mounting, wall mounting (optional kit)
Dimensions: 115 (H) * 81 (D) * 35 (W) mm
Weight: 300 gm (device)
Storage Temperature: -40°C to +95°C
Relative Humidity: 5-95% (non-condensing)
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC12FPIA S020 SC | – | – | – | ||||
| SC12FPIA M SC | – | – | – |
