Key Features & Benefits
1. High Configurability via DIP Switch for Maximum Flexibility
2. Advanced Data Handling Modes: Cut-Through and Jumbo Frame Support
3. Enhanced Network Diagnostics and Reliability with Link Transparency
4. Robust Industrial Design and Wide Temperature Operation
5. High Power Reliability and Power Management Options
6. Flexible Media Conversion and Interface Options
PRODUCT CATEGORIES
Introduction

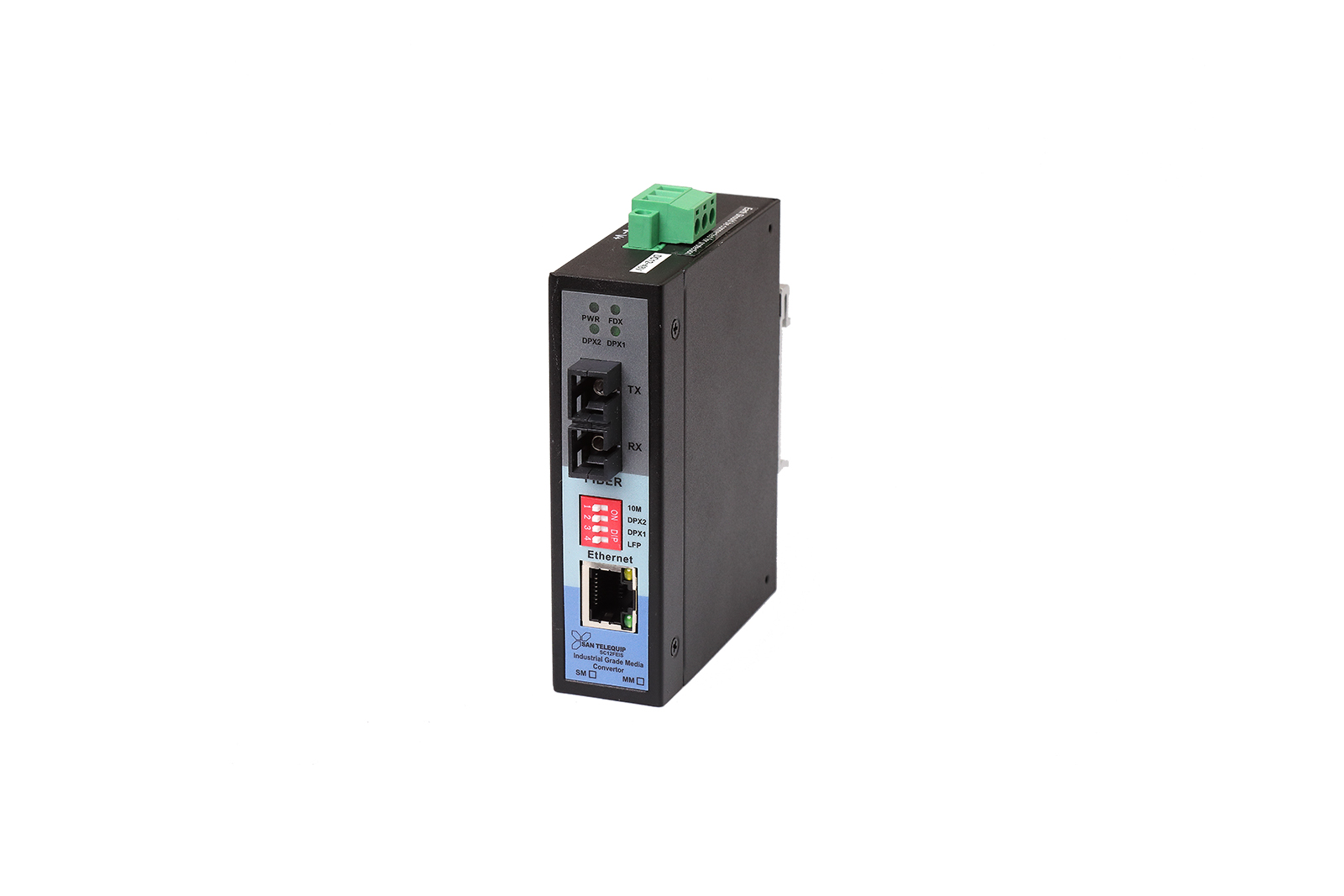

The SC12FEISG Series Industrial Gigabit Ethernet to Fiber Converter is specifically engineered to provide robust and reliable media conversion between 10/100/1000 BASE-T(X) copper and 100/1000 BASE-(F)X fiber optic networks. To accommodate diverse network architectures and cabling requirements, the device is available with options for both fixed SC and flexible SFP fiber connectors, allowing for tailored deployment across various industrial applications.
A key design feature of the SC12FEISG is its exceptional configurability, managed through an accessible onboard DIP switch. This switch empowers network administrators to enable and configure a range of advanced functions directly on the hardware, maximizing operational flexibility without the need for software. Configurable settings include critical parameters such as: Fiber speed, Fiber Auto-negotiation, Link fail pass-through (LFPT), TS-1000 Terminal / Center mode, power-saving features, Jumbo Frame support, and Cut-through forwarding.
Fiber Ports: 100/1000BASE-(F)X or SFP Slot
DIP Switch: Media Converter mode, Speed mode, Link Transparency, TS-1000 Terminal / Center mode, Power Save, Fiber Auto Negotiation, Jumbo Frame, Cut-through
Multi-mode - 550M
Single-mode - 10KM
Bit Rate
Multi-mode - 1250Mbps
Single-mode - 1250Mbps
Wavelength
Multi-mode - 850 nm
Single-mode - 1310 nm
Application
Multi-mode - 1000Base-SX
Single-mode -1000Base-LX
Tx Power
Multi-mode - -9.5 to -4 dBm
Single-mode - -9.5 to -3 dBm
Rx Sensitivity
Multi-mode - < -18 dBm
Single-mode - < -20 dBm
Max Input Current: 0.3A @ 9VDC
Connector: Removable 5-pin Terminal Block
Reverse Polarity Protection: Present
Dimensions: 32mm x 90mm x 110mm (W x H x D)
Weight: 330g

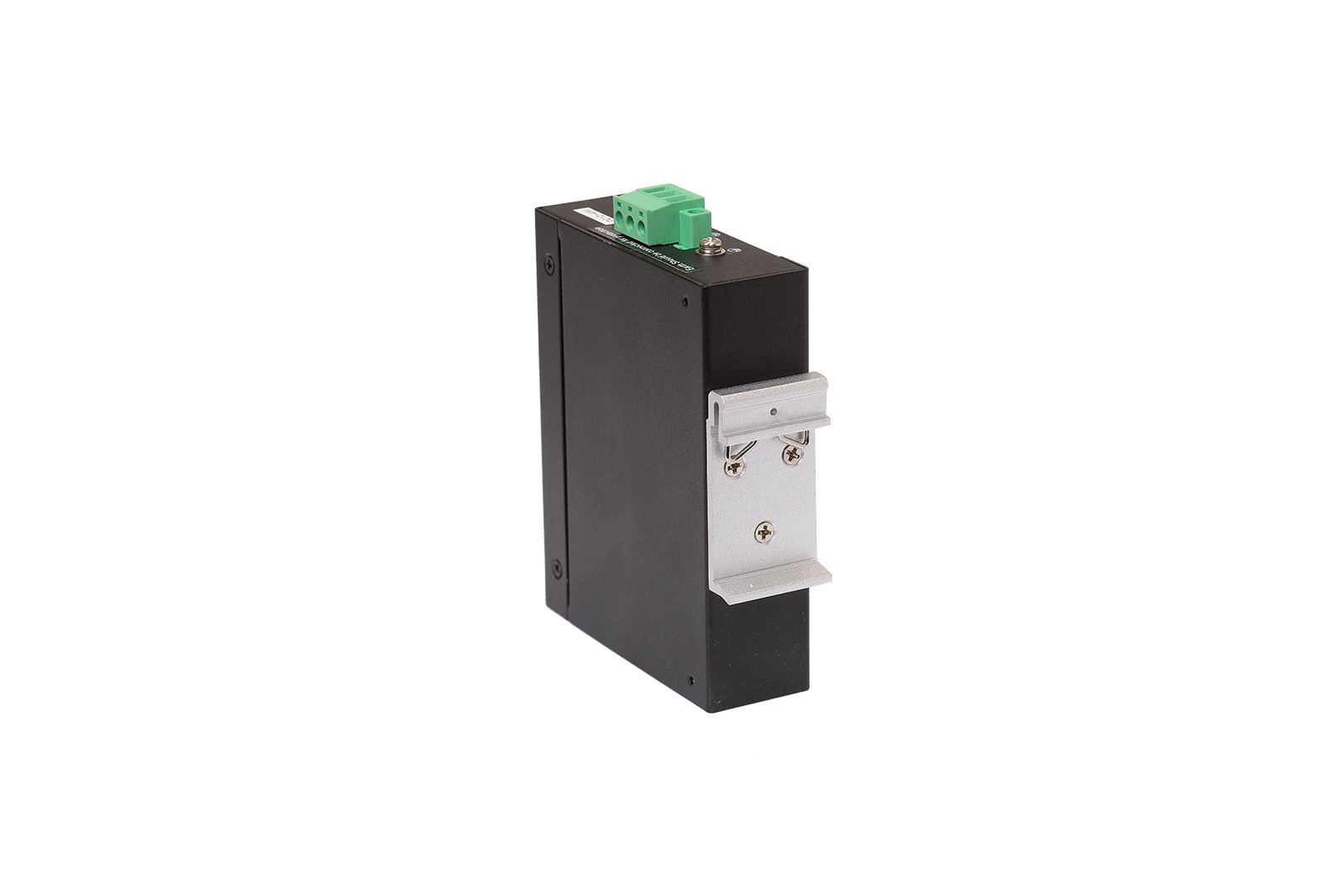

Installation: DIN-Rail, Wall-Mount (optional kit)
Storage Temperature: -40°C ~ 85°C
Ambient Relative Humidity: 5 to 95%, 55°C (non-condensing)
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC12FEISG S020 SC | – | – | – | – | |||
| SC12FEISG M SC | – | – | – | – |
