Key Features & Benefits
1. Robust, Multi-Protocol Conversion Engine
2. High-Capacity Network Master Support
3. Powerful and Advanced Processing Core
4. Flexible Dual Serial Port Interface with Wide Speed Range
5. Enhanced Protection and Industrial Durability
6. Suitability for Complex Industrial Applications
7. Reliability and User-Friendly Configuration
PRODUCT CATEGORIES
enabling long-distance data communication with robust signal conditioning
SC10MK X E
multi-device data transfer for automation networks
SC10MK2 485 MT
outdoor or high-humidity industrial communication applications
SC10MK2 MT W
RS232/485 communication with extended electrical protection
SC10EK X E
OpenWrt Linux on a 580 MHz MIPS CPU with 128MB RAM
SC10E4I MK 502
TCP gateway equipped with a 580 MHz MIPS CPU, 128MB DDR2 RAM
SC10E4I MK
TCP converter featuring two RS485/422 configurable serial ports
SC10MK2 485 MT 502
Introduction

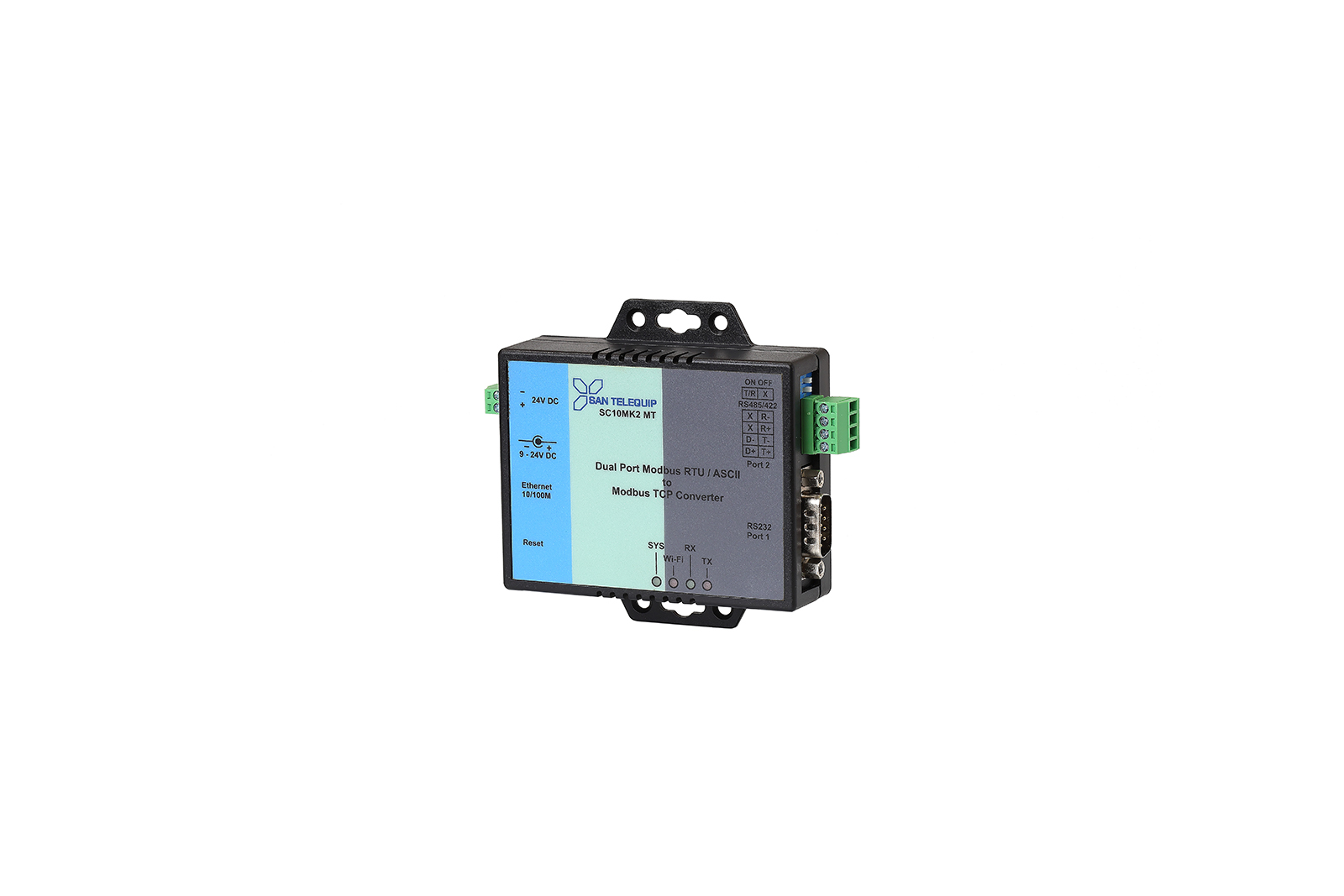

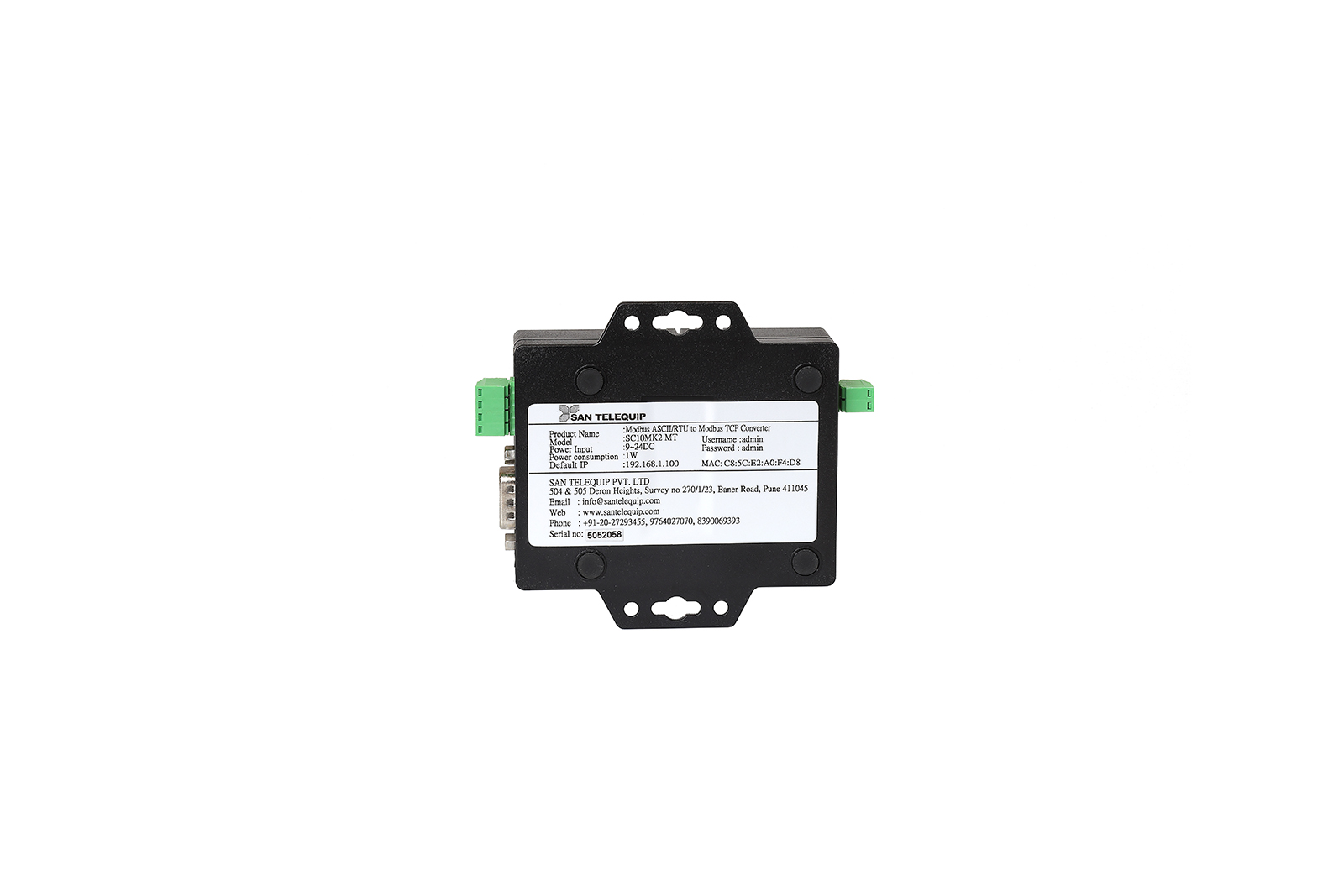

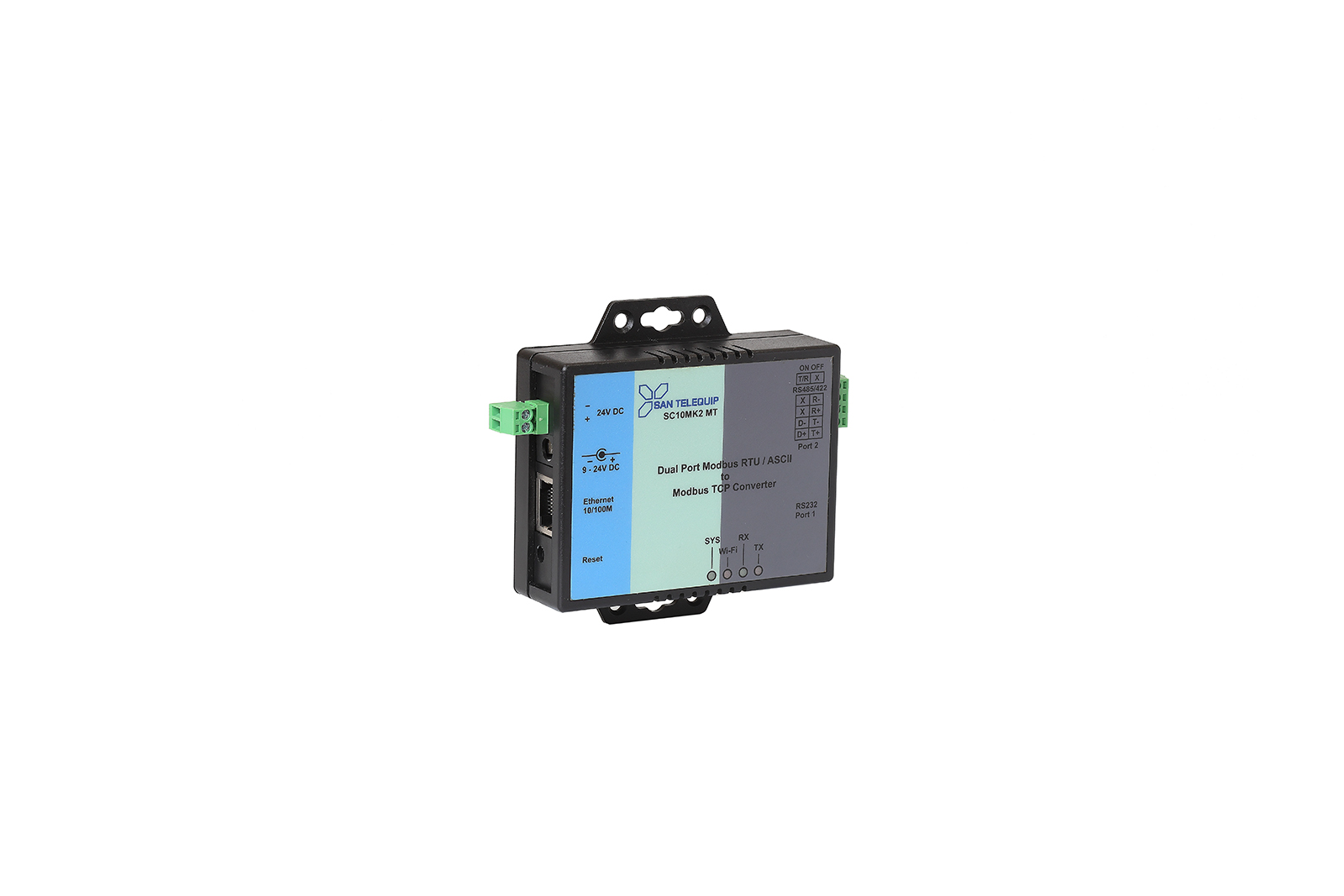

The SC10MK2 MT is a powerful and flexible gateway designed to integrate mixed serial device environments into a unified Modbus TCP network. Its strategic value lies in its ability to connect both RS-232 and RS-422/485 devices through a single unit, making it an ideal solution for systems that utilize a variety of legacy equipment, such as PLCs, HMIs, sensors, and meters.
This 2-port converter provides one dedicated RS-232 port and one RS-422/485 port, managed by a high-performance MT7688AN CPU. This robust hardware allows the SC10MK2 MT to support up to 8 simultaneous Modbus/TCP masters, with each master capable of handling 32 simultaneous polling requests. This high capacity ensures efficient data acquisition from numerous serial devices, consolidating communication and simplifying network management for industrial automation and control applications.
RAM: 128M Bytes DDR2 RAM
ROM: 32M Bytes Flash ROM
OS: OpenWrt Linux OS
Protocols: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, DNS, NTP
Serial Speed: 300 bps to 921.6 Kbps
Serial Ports: Port 1 (RS-232), Port 2 (RS-422/485)
RS-232 Pins: Rx, Tx, GND
RS-422 Pins: Rx+, Rx-, Tx+, Tx-
RS-485 Pins: Data+, Data-
Consumption: 200mA@12V
Connectors: Screw type terminals or DC Jack
Weight: 110 gm
Housing: Plastic
Storage Temperature: -25°C to 80°C
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC10MK2 MT D 24 | – | – | – | – | – | ||
| SC10MK2 MT A 230 I | – | – | – | – | – | ||
| SC10MK2 MT D 48 | – | – | – | – | – |
