- SC10MK2 485 MT 502
Key Features & Benefits
1. Dual Modbus RTU to Modbus TCP protocol conversion.
2. Two configurable RS485 or RS422 serial ports.
3. High-end MIPS CPU runs OpenWrt Linux OS.
4. Supports eight simultaneous Modbus TCP master connections.
5. Dual power inputs with optional PoE power support.
6. Built-in isolation and surge protection for reliability.
7. Rugged metal housing for stable DIN rail mounting
PRODUCT CATEGORIES
designed for high-speed data transmission in industrial control systems.
SC10MK2 MT
enabling long-distance data communication with robust signal conditioning
SC10MK X E
multi-device data transfer for automation networks
SC10MK2 485 MT
outdoor or high-humidity industrial communication applications
SC10MK2 MT W
RS232/485 communication with extended electrical protection
SC10EK X E
OpenWrt Linux on a 580 MHz MIPS CPU with 128MB RAM
SC10E4I MK 502
TCP gateway equipped with a 580 MHz MIPS CPU, 128MB DDR2 RAM
SC10E4I MK
Introduction

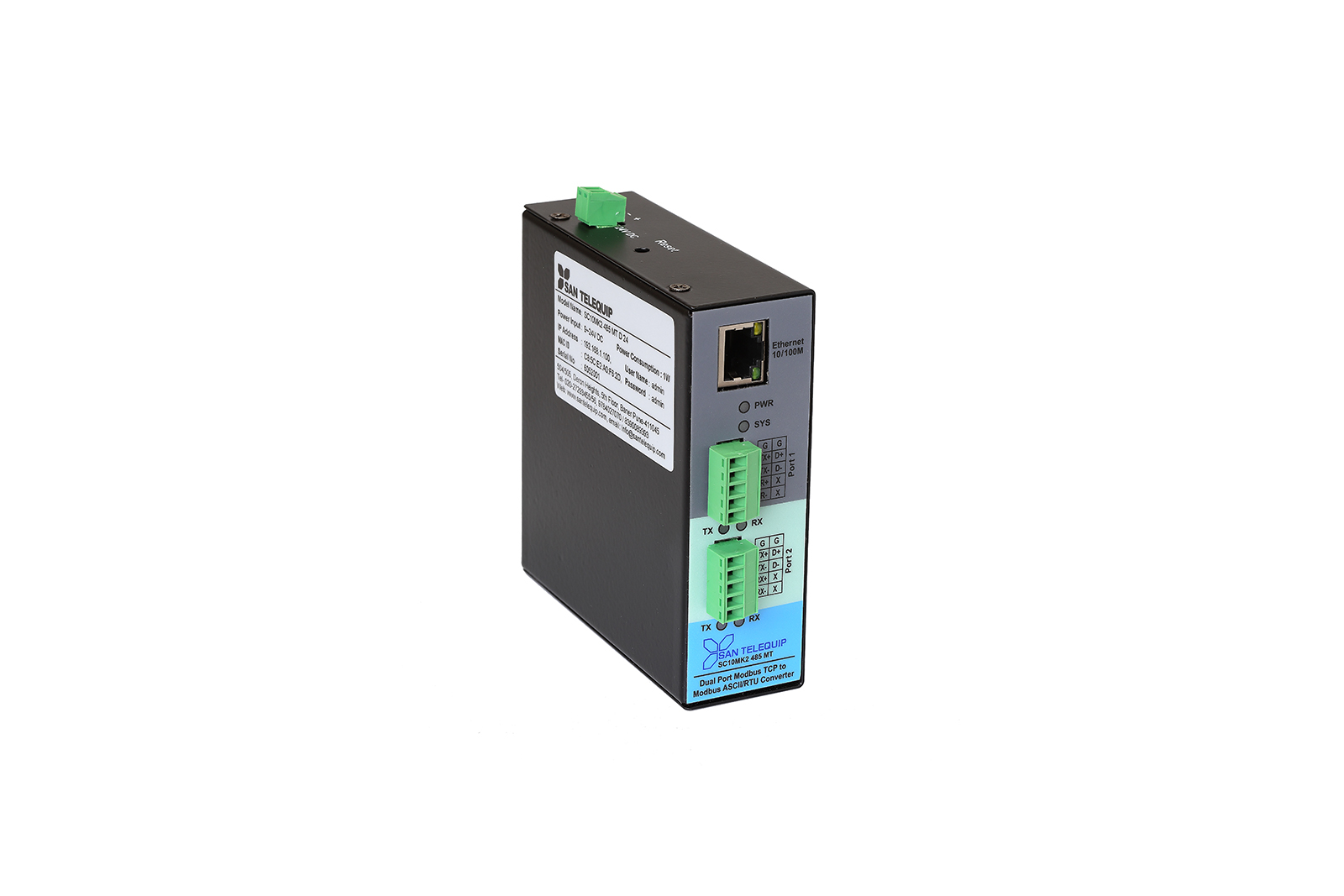

The SC10MK2-485 MT is a high-performance, dual-port protocol converter designed to reliably translate Modbus RTU/ASCII data to Modbus TCP. This device acts as a transparent gateway, allowing Modbus TCP masters to communicate directly with serial slave devices as if they were native Ethernet endpoints. Its robust hardware and versatile design ensure dependable data connectivity and interoperability in complex industrial environments.
Powered by a high-end CPU, the SC10MK2-485 MT is the ideal choice for demanding applications, including the integration of Energy Meters, Solar controls, Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and Human-Machine Interfaces (HMIs). By providing a powerful and efficient conversion mechanism, it unlocks the value of legacy assets and facilitates their integration into modern IIoT and data acquisition platforms. This datasheet outlines the key features and technical specifications that make this converter a superior choice for industrial connectivity.
Wi-Fi: 802.11b/g/n (Optional)
RAM: 128M Bytes DDR2 RAM
ROM: 32M Bytes Flash ROM
OS: OpenWRT Linux OS
Ethernet Speed: 10 /100 Mbps (Auto Detection)
Serial Speed: 300 bps to 921.6 Kbps
Serial Ports: 2 x RS485/422
Power: Terminal block, DC Jack
Current Draw: 200 mA @ 12V
Protections: Built-in 1.5KV Magnetic Isolation, 15KV ESD for all serial signals
110 * 33 * 113 mm (for DC Supply)
110 * 33 * 140 mm (for AC Supply)
Weight: 450 gm
Housing: Metal

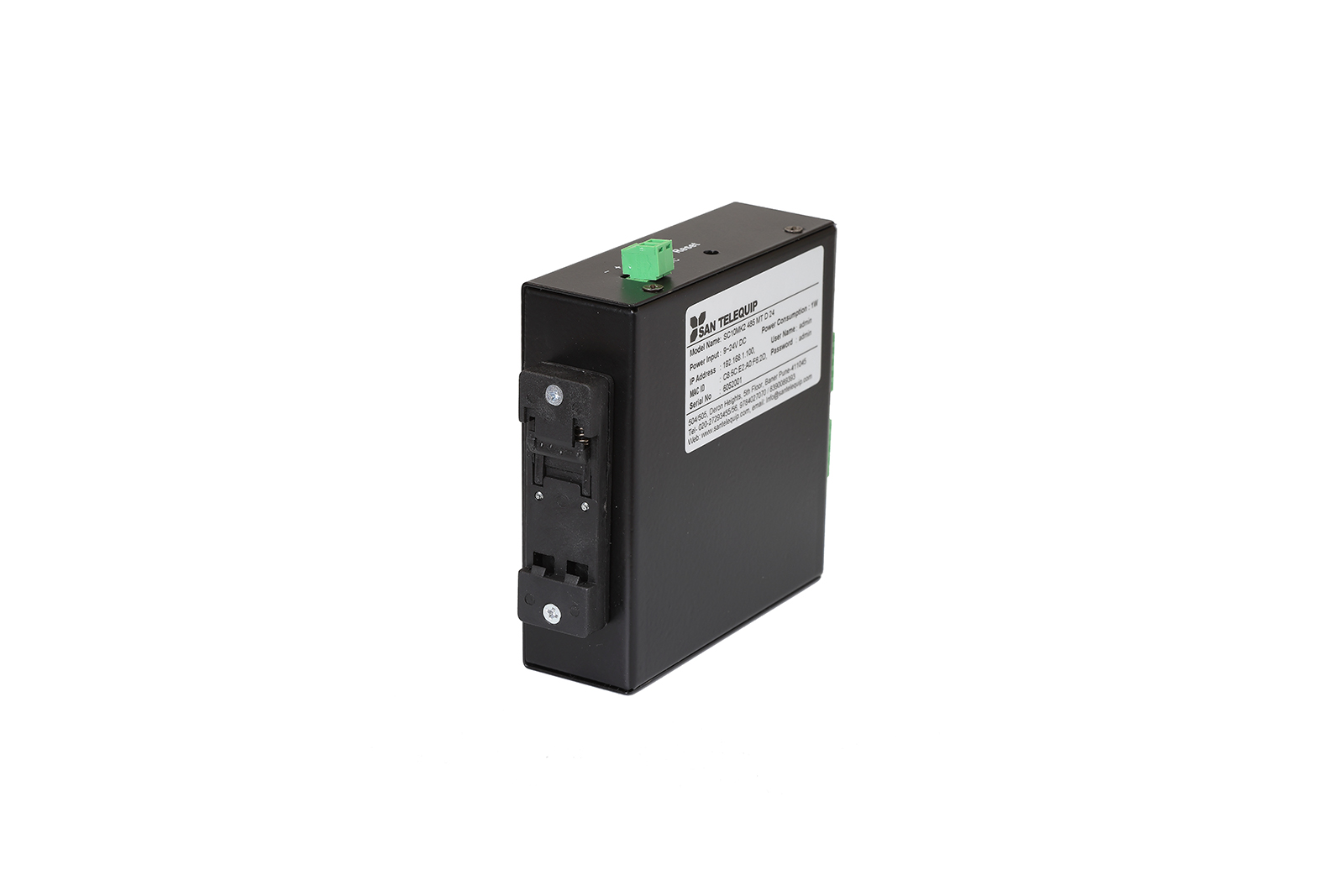

Mounting: DIN Rail
Storage Temperature: -25°C to 80°C
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| SC10MK2 485 MT 502 D 24 | – | ||
| SC10MK2 485 MT 502 A 230 | – |
