Introduction

In modern industrial automation, the ability to seamlessly integrate legacy serial-based equipment with contemporary IP-based Ethernet networks is paramount for data collection, control, and operational efficiency. Modbus gateways serve as the critical bridge in these hybrid environments, translating between the Modbus RTU/ASCII protocols used by field devices and the Modbus TCP protocol prevalent in SCADA systems and enterprise networks. The SC10E4NI MS is a secure, high-performance Modbus gateway engineered to meet this fundamental challenge.

The SC10E4NI MS is a versatile protocol converter designed to facilitate robust and transparent communication between Modbus TCP, Modbus RTU, and Modbus ASCII protocols. Its primary function is to enable modern Ethernet-based master devices (like HMIs and PLCs) to communicate with legacy serial-based slave devices (such as power meters and sensors), or vice versa. The gateway is purpose-built for demanding industrial applications, providing a reliable communication link for systems involving Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and a wide array of field sensors and meters.

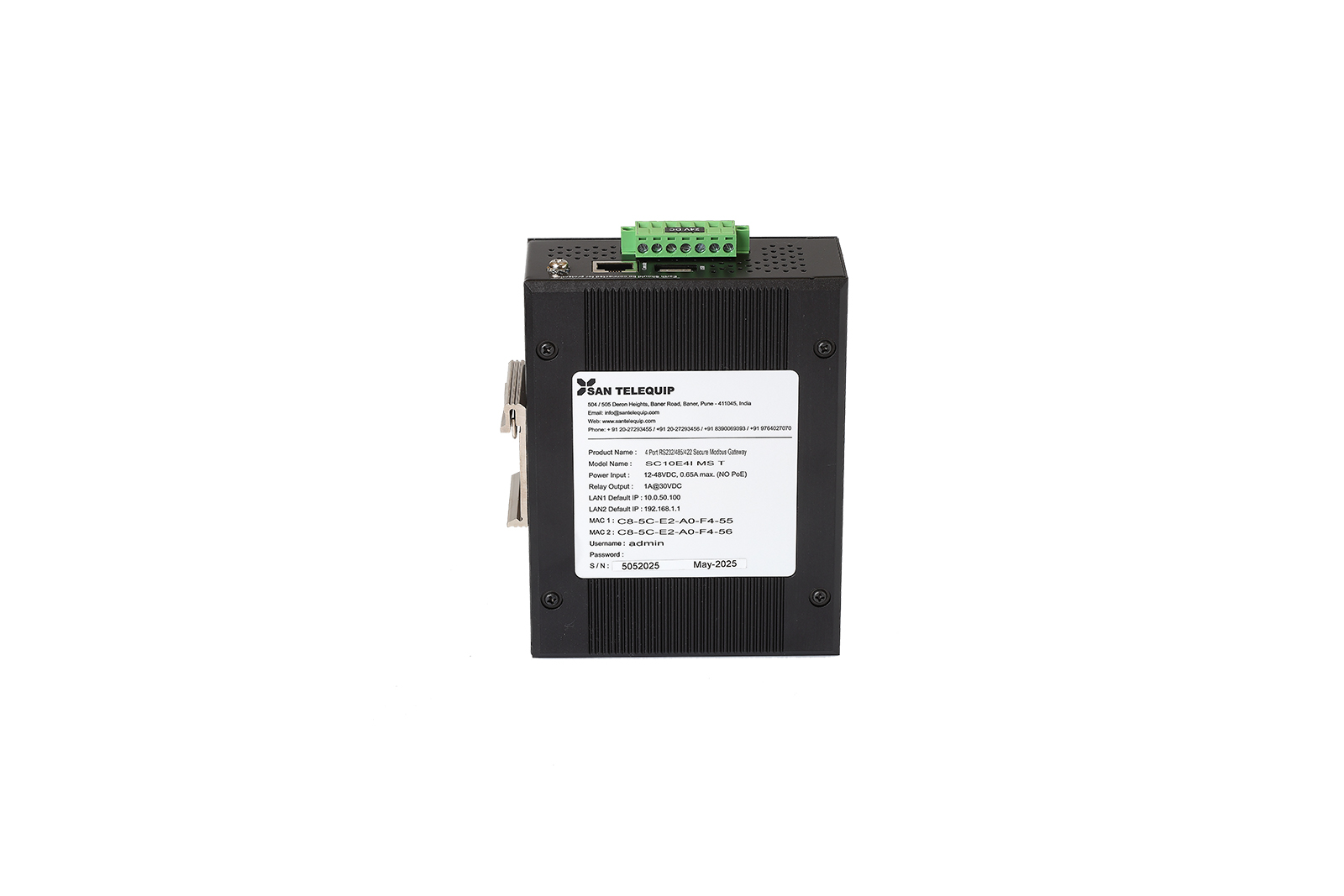

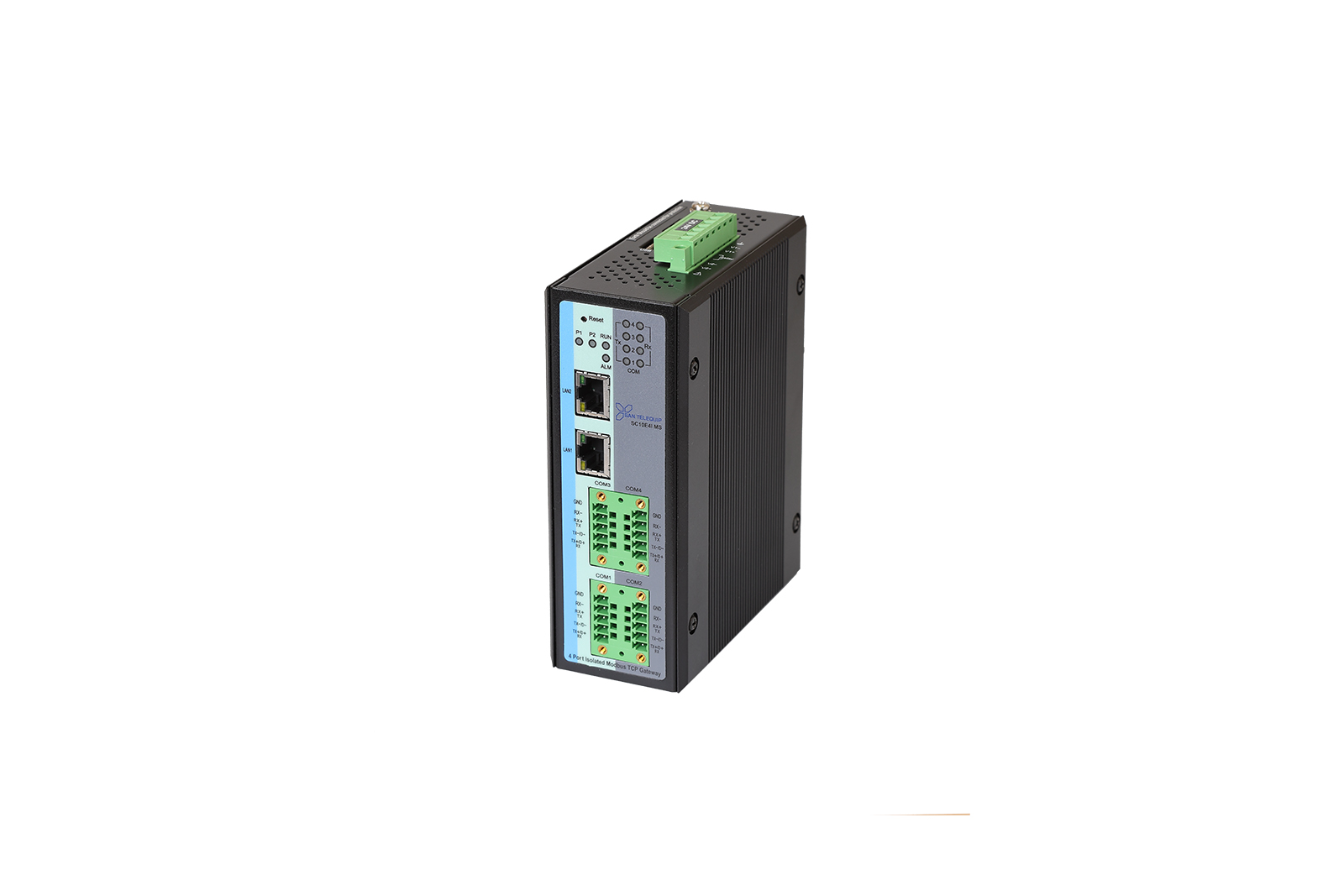

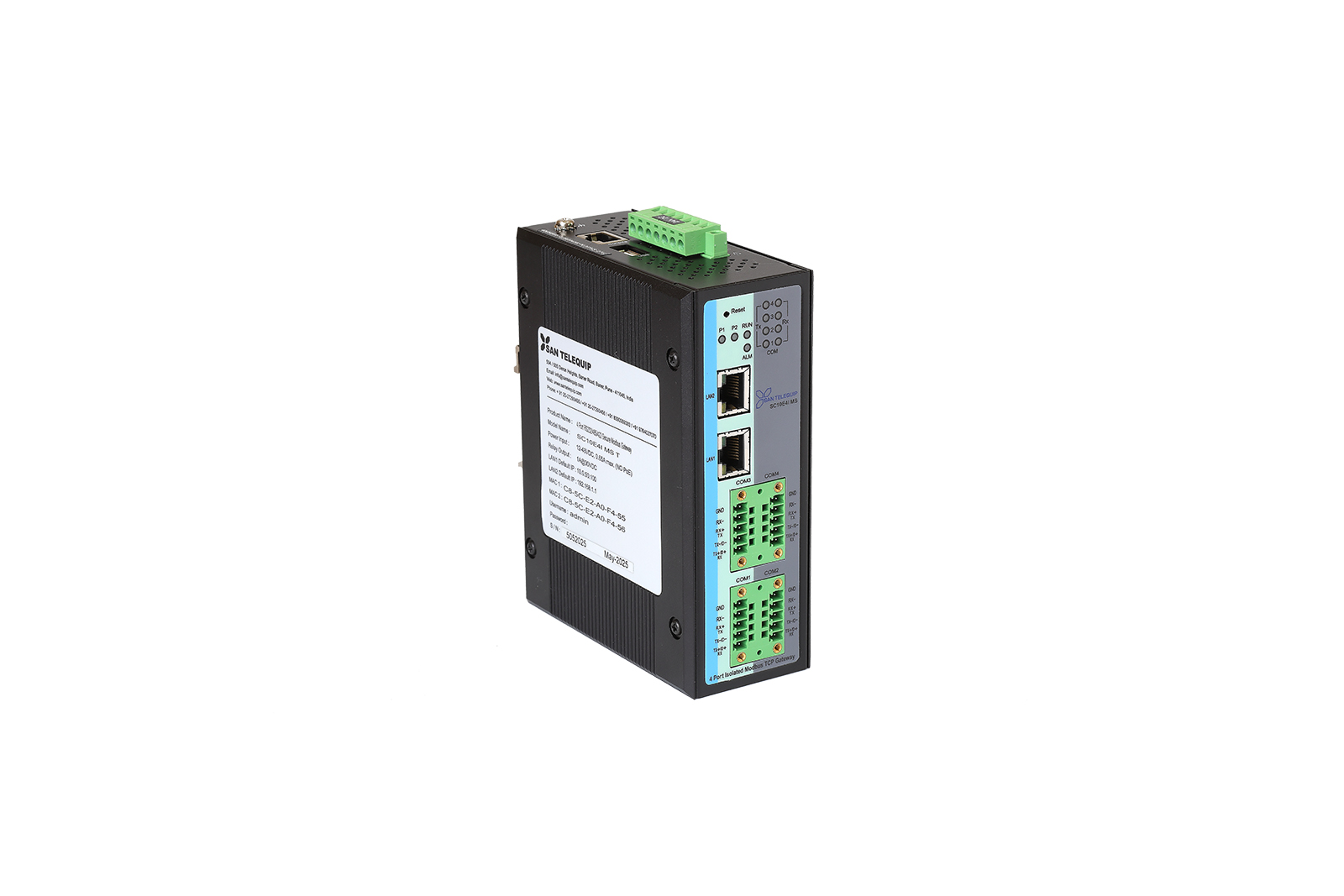

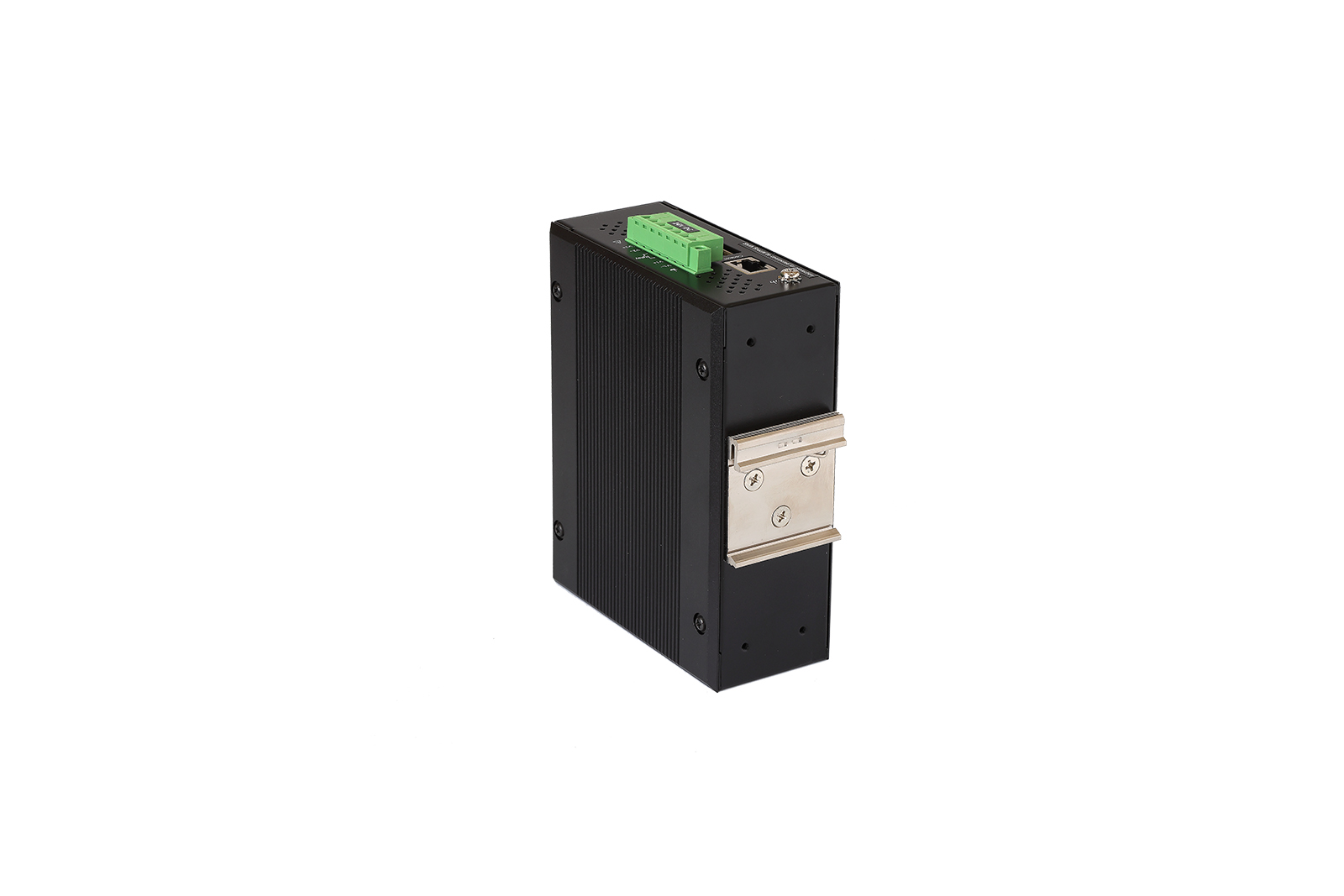

From a technical standpoint, the gateway is a rugged, DIN-rail mountable device featuring four software-selectable RS232/485/422 serial ports and dual 10/100M Ethernet ports. This hardware flexibility is complemented by a powerful software feature set, including the ability to handle 16 simultaneous TCP masters, intelligent Modbus ID routing, and embedded security protocols. By combining protocol conversion with advanced networking and security capabilities, the SC10E4NI MS provides a comprehensive solution for modernizing industrial communication infrastructure.

Beyond its core protocol conversion capabilities, the SC10E4NI MS is distinguished by a suite of advanced features that deliver significant flexibility, security, and operational resilience.
