Key Features & Benefits
1.IEC 61850-3 certified for substation deployment
2.Redundant power input for mission-critical reliability
3.OpenVPN and IPsec for secure data communication
4.High EMC immunity with –40°C to 85°C operation
5.Modbus gateway for simplified network integration
6.Flexible 6 Ethernet with 8/16 serial ports
7.Remote monitoring and control of field devices
PRODUCT CATEGORIES
Serial integration with secure Ethernet networking for large installations.
SC10E16AM
Serial integration with secure Ethernet networking for large installations.
SC10E16AM DC
Serial integration with secure Ethernet networking for large installations.
SC10E16A
Serial integration with secure Ethernet networking for large installations.
SC10E16O
Introduction
In critical infrastructure environments such as power substations, the reliability and security of communication networks are paramount. The deployment of robust, certified, and secure device servers is a strategic necessity for ensuring operational integrity and preventing unauthorized access. The SC10E16AMB-61850 Series is engineered specifically to meet these demanding requirements, providing a trusted solution for modernizing and securing industrial control systems.

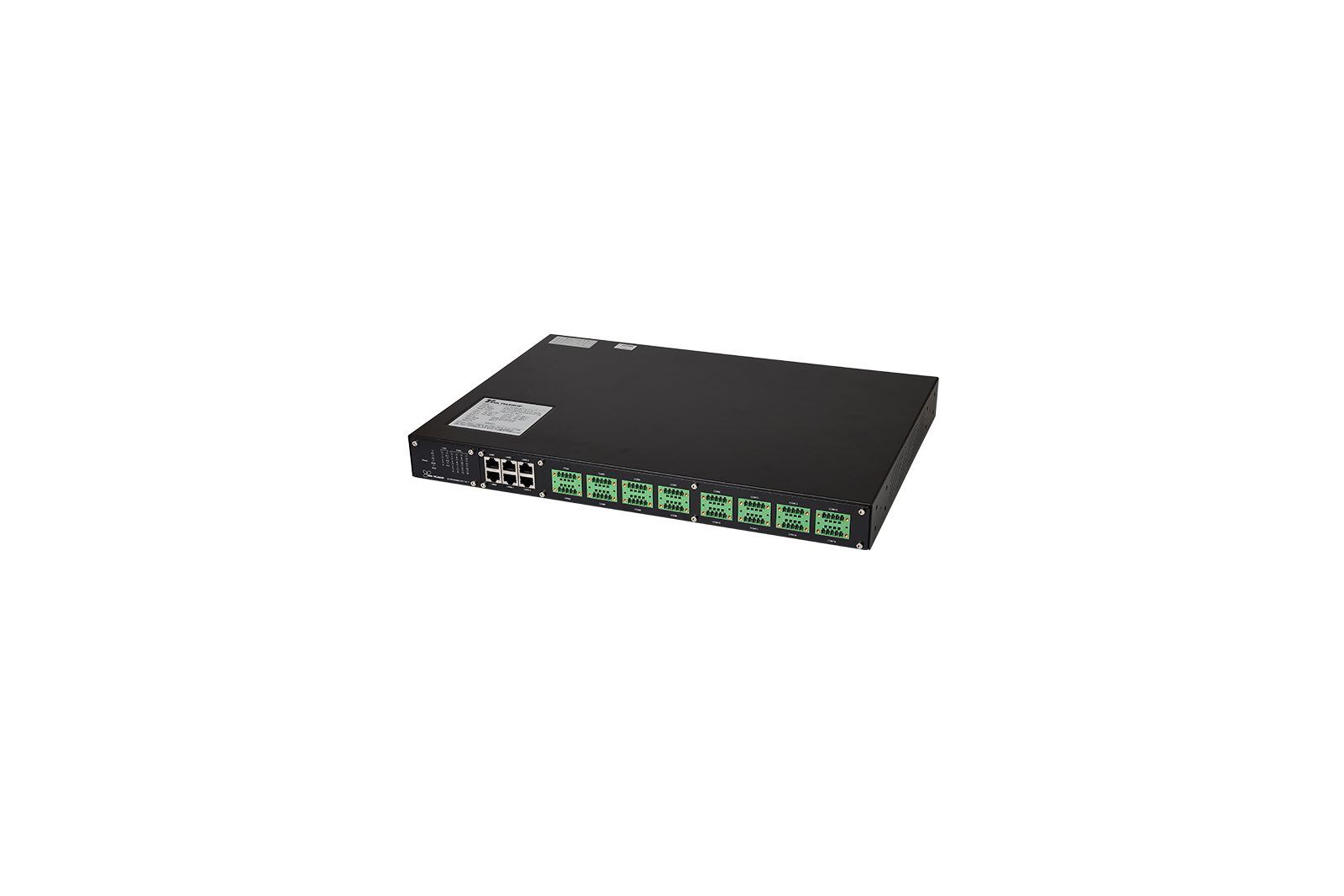

The SC10E16AMB-61850 Series is a high-performance, industrial-grade device server designed to remotely monitor, manage, and control industrial field devices over an IP network. Housed in a rugged metal chassis suitable for 19” rack mounting, this series is built to withstand harsh conditions, including high levels of electromagnetic interference and extreme temperatures. It offers flexible configuration options via Telnet, Web Browser, Serial Console, or a dedicated Windows Utility, ensuring seamless integration into existing management workflows.
Beyond its core function as a secure device server, the SC10E16AMB-61850 also operates as a powerful Modbus Gateway. This dual capability allows it to simplify complex industrial networks by enabling protocol conversion between Modbus TCP and Modbus RTU/ASCII devices, effectively integrating disparate hardware into a single, manageable network. The inclusion of advanced security features like OpenVPN and IPsec ensures that you can tunnel your data securely through the Internet and prevent unauthorized control of your Serial Devices by malicious attacks, data sniffing etc.
VPN Throughput: Up to 37.9Mbps
MTBF: 9 Years
Serial Ports: 16
Serial Connector: D-Sub9 (DB models, supports RS-232 mode only) or 5.08mm 5-Pin Terminal block (TB Models)
Serial Modes: RS232/422/485 or RS422/485 (Isolated version), software selectable
Serial Isolation: 3 KV (Isolated version only)
Data Bits: 5, 6, 7, 8
Parity: None, Odd, Even, Mark, Space
Stop Bits: 1, 2
Flow Control: None, Xon/Xoff, RTS/CTS (RS-232 only)
Input Current: 0.73 A @ 24 VDC, 0.35 A @ 100 VAC, 0.20 A @ 100 VDC
Power Consumption: Approximately 20 W
Power Redundancy: Yes
Connector: 10-Pin Terminal Block
Reverse Polarity Protection: Yes
Dimensions: 440.6 x 44 x 309 mm (W x H x D) (1U Rack-mount)
Weight: 4 kg
Installation: 19” Rack mount (kit included)
Reset: Yes, Reset Button
Storage Temperature: -40°C to 85°C
Ambient Humidity: 5% to 95% (Non-condensing)
| Categories | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|
| SC10E16AMB S NI D AC T | – | ||
| SC10E16AMB S NI T AC T | – |
