Introduction

Modern industrial automation environments are characterized by a complex mix of equipment, often requiring the integration of legacy serial-based devices with contemporary Ethernet networks. A primary challenge lies in bridging this technological gap while ensuring that data from numerous intelligent electronic devices (IEDs) is collected and managed efficiently without creating network bottlenecks. SC10E08AM is engineered to directly address these critical infrastructure needs.

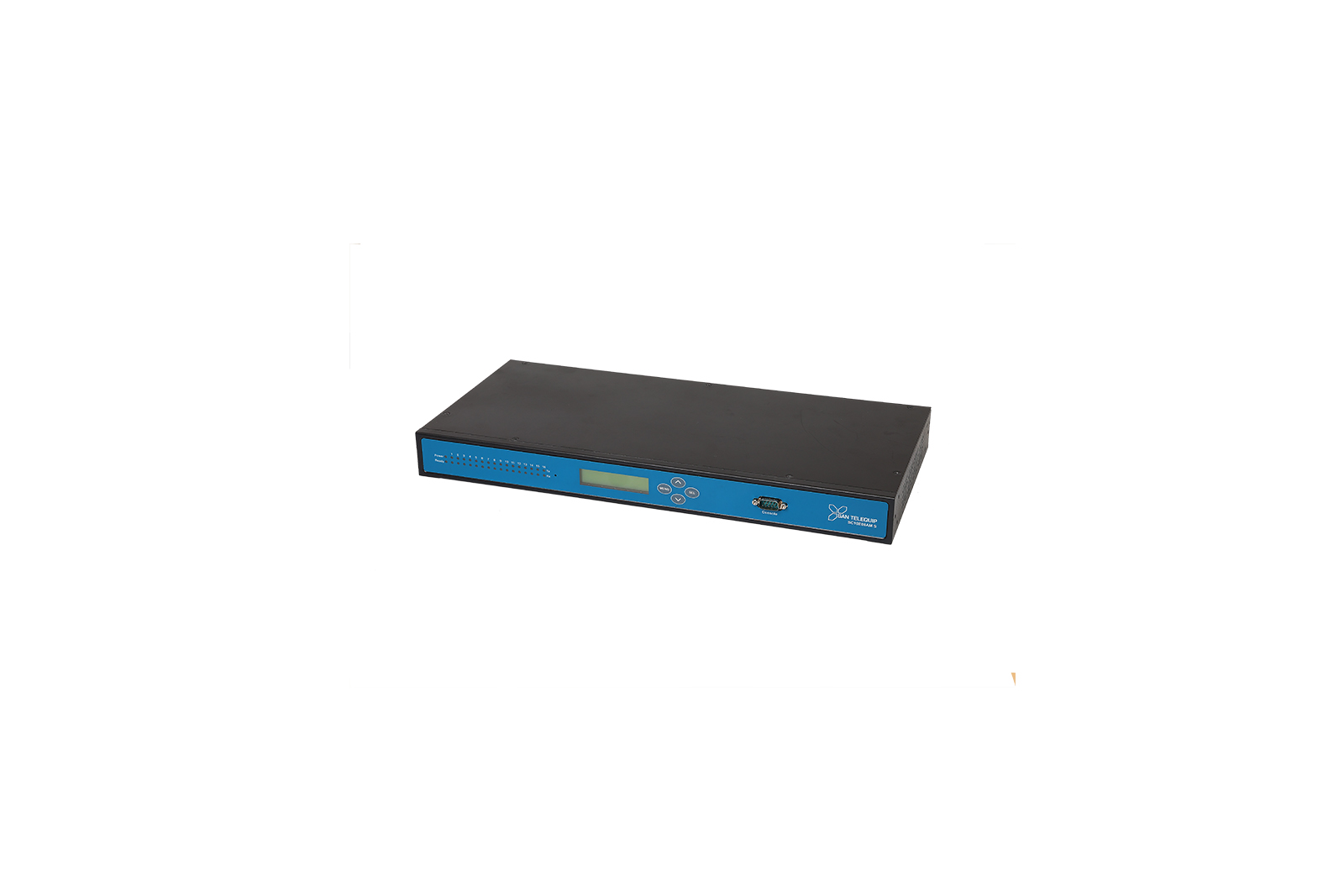

SC10E08AM is a dual-function device that serves as both a versatile gateway between Ethernet (TCP/IP) and serial (RS-232/422/485) communications and a high-performance Modbus Data Concentrator. As a terminal server, it enables virtually any serial device to be seamlessly connected to a LAN by encapsulating serial data for transparent, full-duplex transport over Ethernet. As a data concentrator, it independently polls and collects data from multiple Modbus slaves, storing it in an internal memory map. This architecture dramatically improves performance for master systems in demanding applications like SCADA, telecommunication, transportation, and banking by providing consolidated data with significantly faster response times.

This combination of robust connectivity and intelligent data handling makes the SC10E08AM a strategic component for optimizing industrial communication systems. The following sections detail the specific features and technical specifications that enable these powerful capabilities.
