L3 Managed PoE Industrial Ethernet Switch (EN Series)
These EN50155-certified industrial L2/L3 managed Ethernet switches include both Gigabit and Fast Ethernet models, designed for railway and harsh transportation environments. They feature rugged M12 interfaces, optional PoE support, sub-20 ms ring protection, and redundant power inputs, with IP40 metal housing, vibration-resistant connectors, and a wide –40°C to +75°C operating range for reliable onboard communication, surveillance, and trackside networking.
PRODUCT CATEGORIES

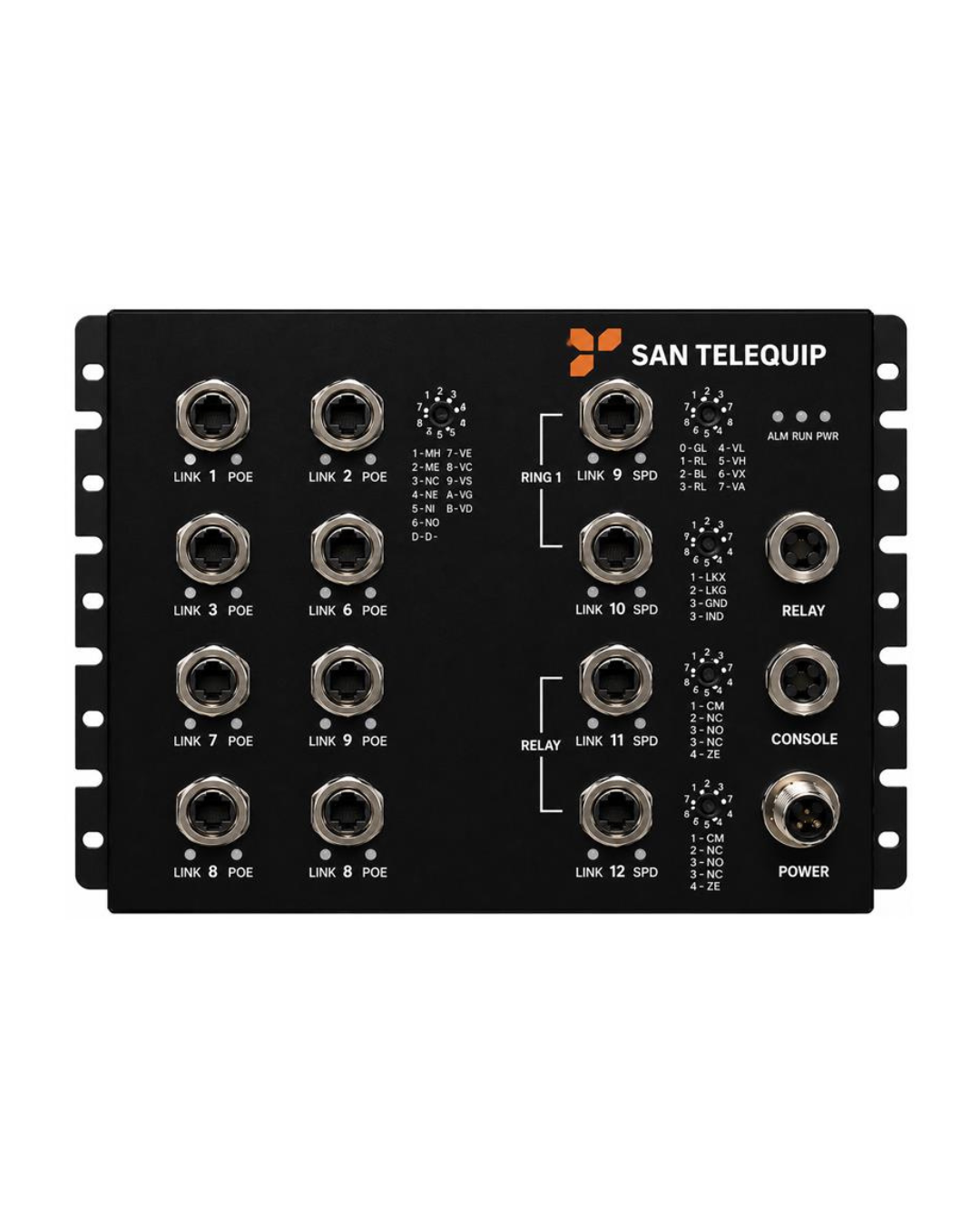

12 Port L3 Managed PoE Gigabit Industrial Ethernet Switch
12 x 10/100/1000 Mbps PoE Copper Ports, M12 X-coded connectors ,8 x IEEE 802.3af / IEEE 802.3at PoE Ports, up to 30W per port, 4 x Gigabit Ethernet ports with Hardware Bypass functionality, 1 x Console management interface via M12 D-coded connector,

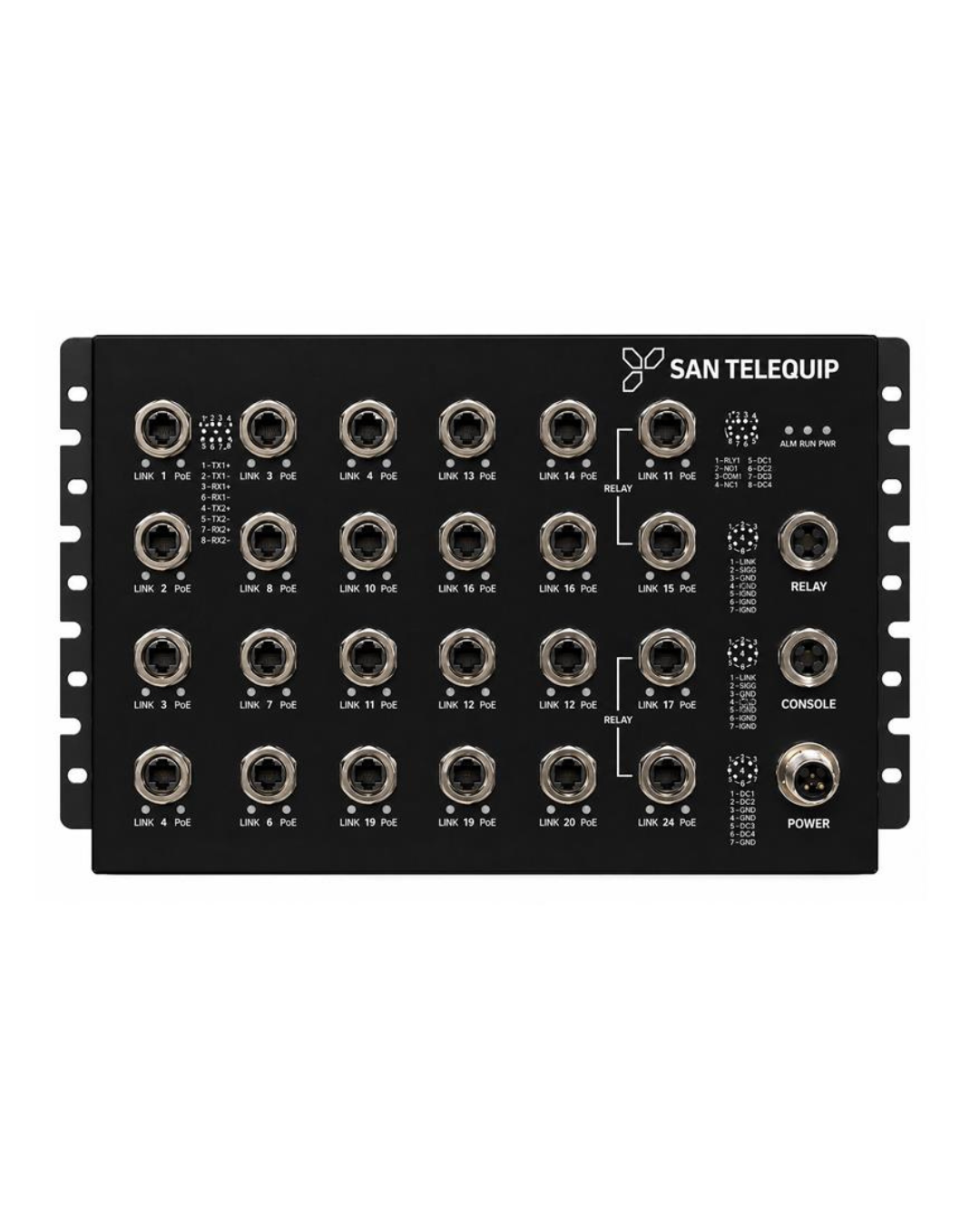

24 Port L3 Managed PoE Gigabit Industrial Ethernet Switch
24 × 10/100/1000 Mbps Gigabit M12 X-code ports, 4 × 10/100/1000 Mbps Gigabit M12 X-code ports with a bypass function

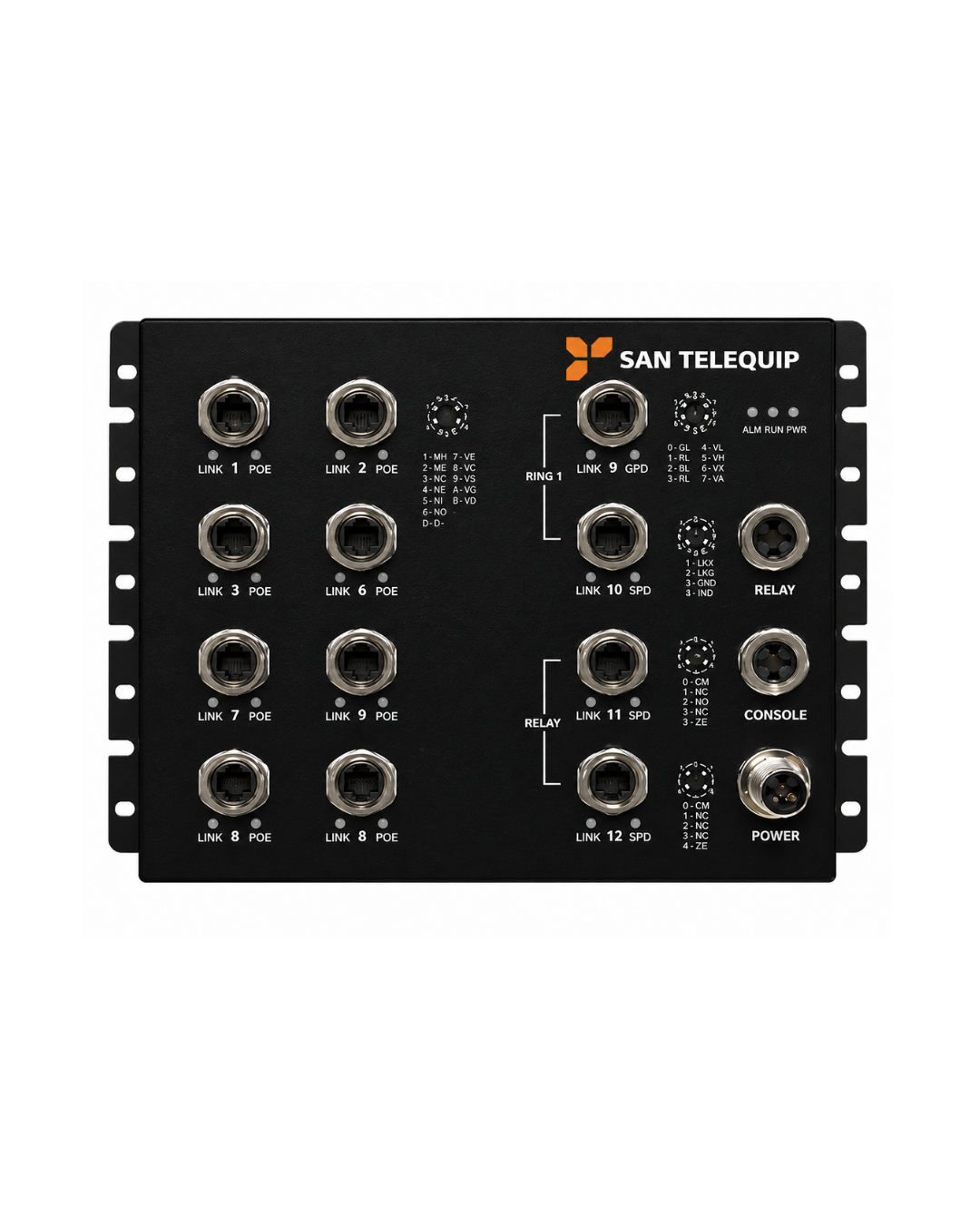

12 Port L3 Managed PoE Industrial Ethernet Switch
8 × 10/100M PoE Ports- These ports use M12 D-code connectors, 4 × 10/100/1000M Gigabit Ports- These ports use M12 X-code connectors and feature passive bypass functionality
