- IPSMG 302-2S A
Key Features & Benefits
1. The combination of two Gigabit PoE copper ports and SFP fiber ports.
2. The switch provides a total power budget of 60W
3. Robust Industrial Design and Environmental Hardening
4. Redundant High-Speed Network Recovery (ERPS)
5. Managed Layer 2 (L2) Functionality and High Throughput
6. Extensive Management and Diagnostic Tools
Certifications
PRODUCT CATEGORIES
4 * 10/100/1000M PoE-af/at Ports & 2 * 1.25G/155M SFP Ports
IPSMG 304-2S A
12 Port Industrial Giga Managed PoE Switch with 8* 10/100/1000M PoE Ports
IPSMG 308-4S A
8* 10/100/1000M PoE (af/at) RJ45 Ports and 2 * 100/1000 SFP Ports
IPSMG 308-2S A
16 * 10/100/1000BaseTX PoE-af/at ports & 2 * Giga SFP Ports
IPSMG 3016-2S Y
Introduction

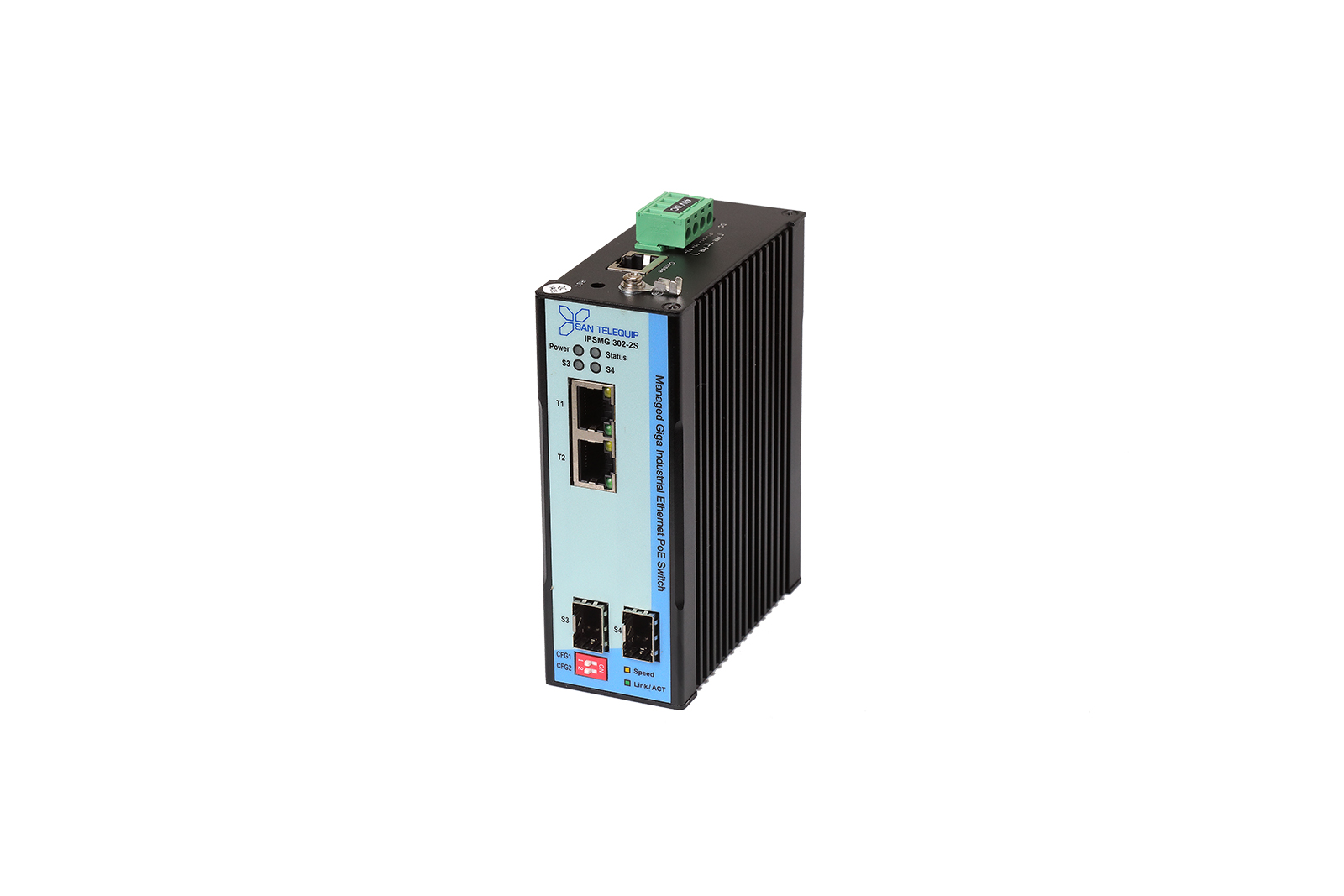

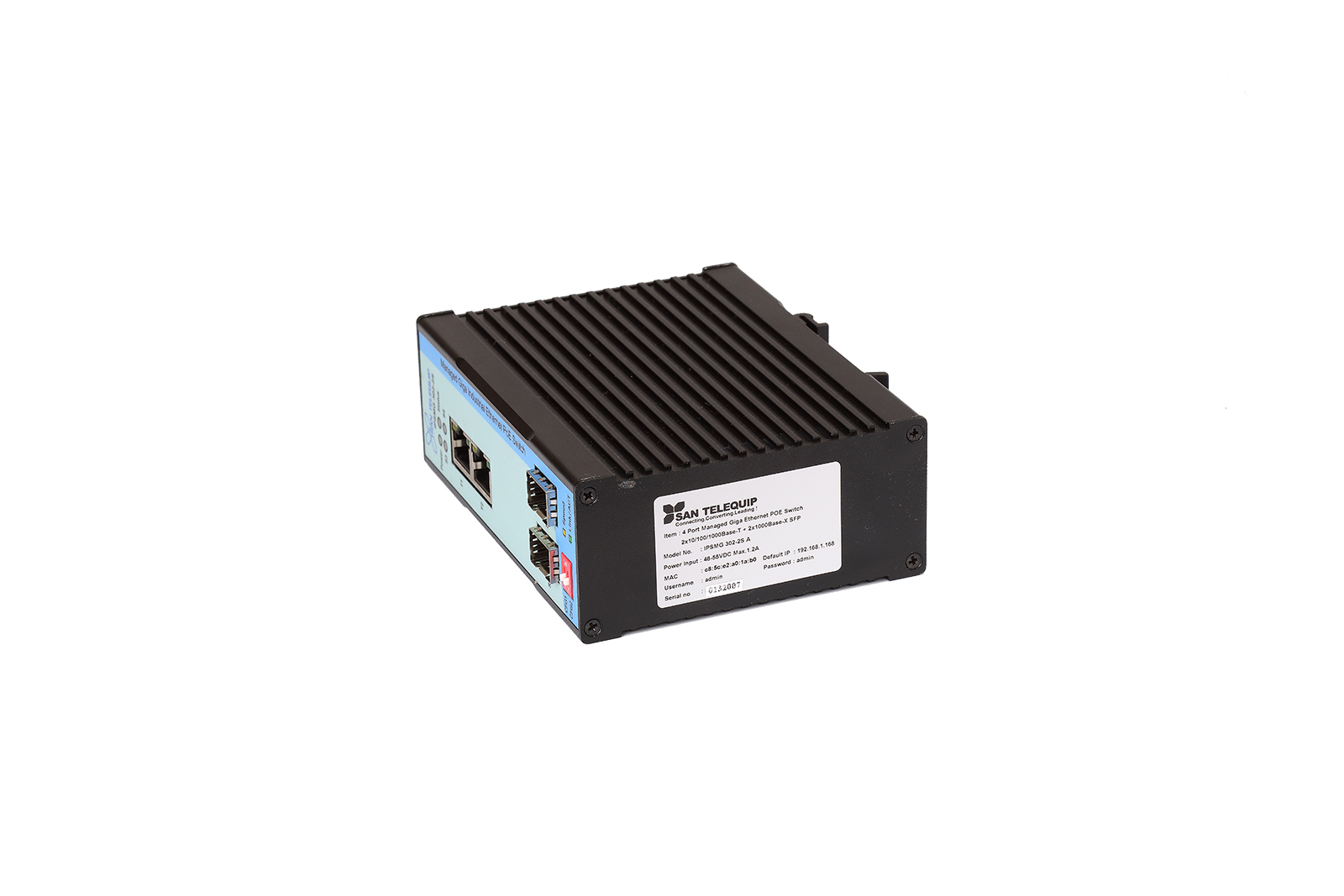

This 4-port, fan-less L2 managed switch features a Store and Forward architecture designed for energy-efficient operation. It offers a versatile mix of two 10/100/1000Base-T PoE copper ports and two dual-speed 100/1000Base-X SFP slots for fiber connectivity. This configuration allows it to power edge devices while providing high-speed fiber uplinks for long-distance data transmission, all within a single compact unit.
The IPSMG 302-2S A is engineered to thrive in the most severe industrial environments. Its robust design includes extensive protection against lightning, anti-static discharge, ESD, and EFT, ensuring operational integrity. The switch operates over a wide temperature range of -40°C to +75°C and is housed in an IP40-rated aluminum alloy case, making it a highly resilient choice for mission-critical applications where failure is not an option.
IEEE802.1Q, IEEE802.1w, IEEE802.1s, IEEE802.1d, IEEE802.1ag,
IEEE802.3-af & IEEE802.3-at
Switching Capacity: 8Gbps Non-blocking
MAC Address Table: 8K
Data Buffer: 1M
Maximum Frame Size: 9.6K Jumbo Frame
Switch Latency: 7µsec
Fiber Ports: 2 * 100/1000Base-X SFP Slot
Console Port: RS232 (RJ45)
Power Input Connector: 4-PIN Removable Terminal Block
PoE Power Budget: Total 60W for 802.3-at
Power Protection: Overload Voltage protection, Overload Current protection
Port Protection
Ethernet/Fiber: 4KV Surge Protection
Power Port: 4000VDC EFT Protection
System: 8/15KV ESD Protection
Isolation: 2.25K VDC Hi-pot (Ethernet & Power)
Dimensions : 120 * 95 * 40 mm
Weight: 500g

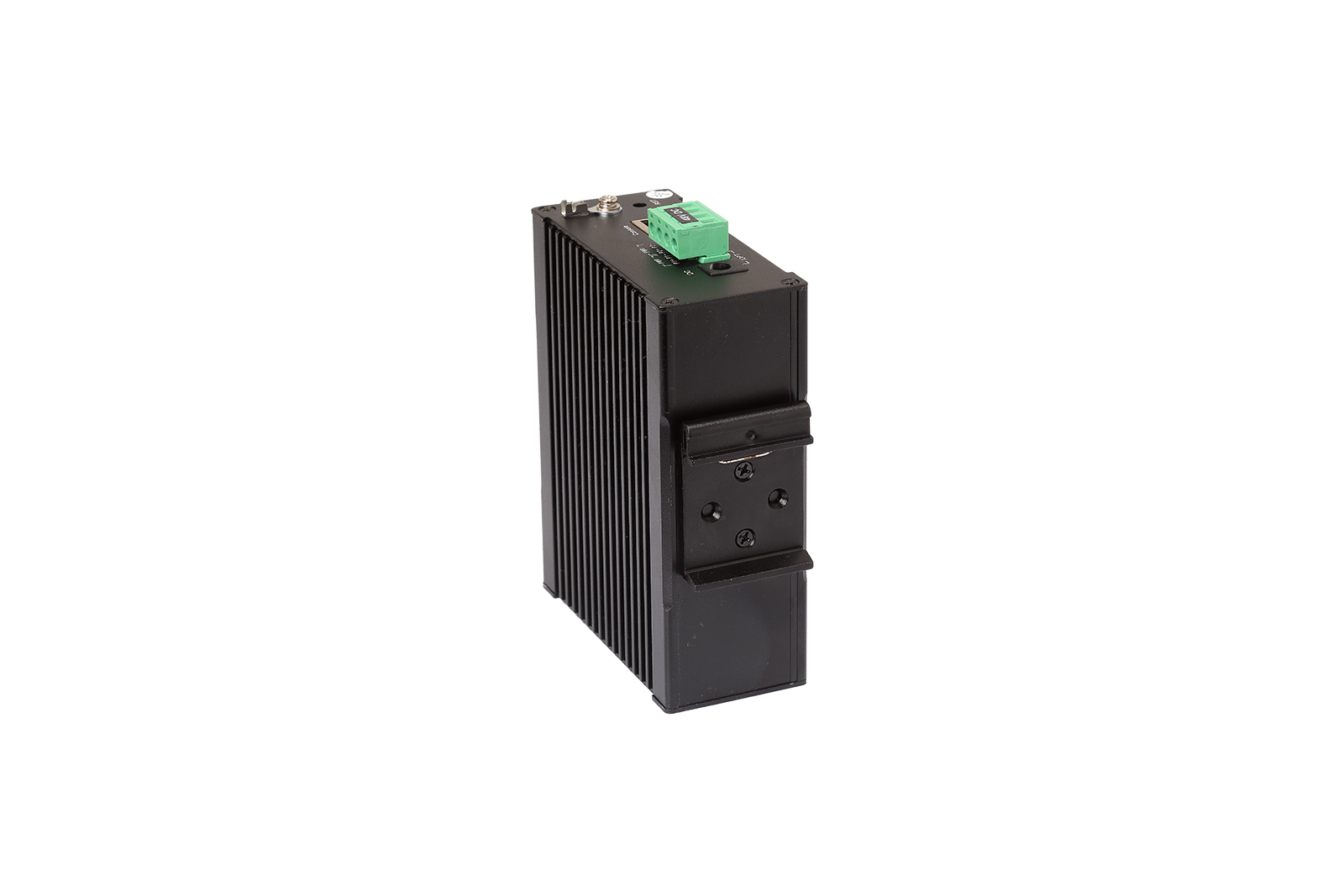

Installation: DIN Rail, Wall mounting (with optional kit)
Storage Temperature: -40˚C to +85˚C
Relative Humidity: 5 - 95% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IPSMG 302-2S A | – |
