Key Features & Benefits
1. Robust High-Power PoE Delivery with IP30 Protection
2. Industrial-Grade Durability
3. Extreme Industrial Temperature Tolerance
4. Enhanced Electrical Safety and Power Redundancy
5. Comprehensive Electromagnetic and Physical Hardening
6. Dedicated System Failure Notification
7. Simplified Plug-and-Play Network Configuration
PRODUCT CATEGORIES
Introduction

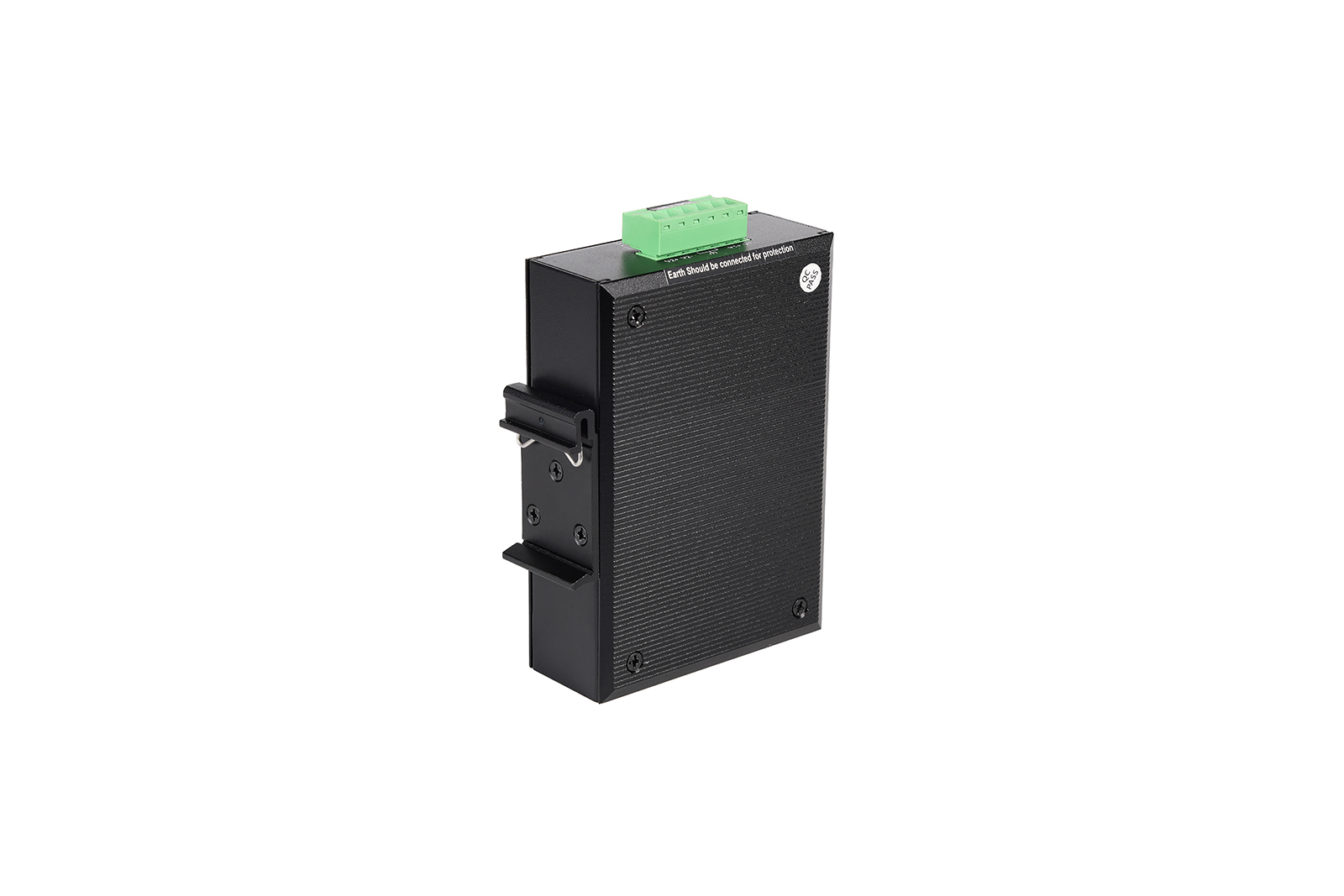

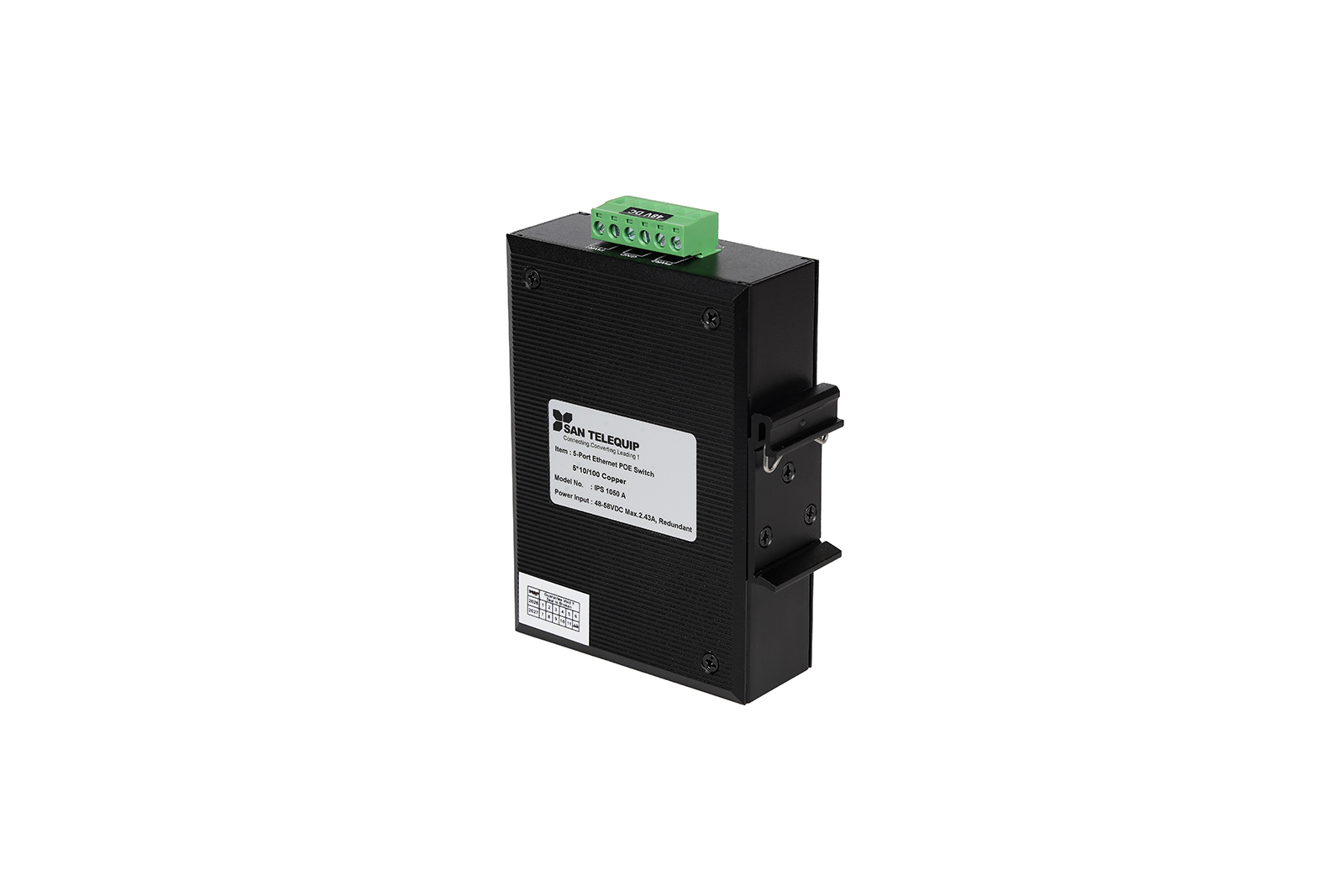

The San Telequip IPS S 1050 is an unmanaged Power over Ethernet (PoE) switch purpose-built for industrial applications. Its design philosophy centers on delivering reliable network connectivity in demanding environments where standard commercial networking hardware would fail. Housed in a compact, standard metal shell, the IPS S 1050 is engineered for resilience, durability, and straightforward installation in space-constrained industrial settings.
This switch provides seamless integration into existing industrial networks by adhering to key IEEE standards, including IEEE 802.3 10Base-T and IEEE 8.3u 100Base-TX for Fast Ethernet communications. Its core capability lies in its implementation of Power over Ethernet, complying with IEEE 802.3af/at standards. This allows the switch to not only transmit data but also deliver electrical power over a single Ethernet cable, simplifying the deployment of network devices such as IP cameras, wireless access points, and VoIP phones in locations where power outlets are scarce or impractical.
PoE Ports: 4
PoE Pinout: POE+: 1, 2; POE-: 3, 6
Power Supply Requirement: External 48VDC, 3A (min) for full PoE load
Total Power Budget: 120W
PoE Port Power: 30W per port
Protections: Overload and reverse polarity protection
Alarm Relay: 1-channel Relay output, NO/NC, 1A@24VDC
IP Rating: IP30
Installation: DIN-Rail / Wall-mounted
Dimensions (W x H x D): 150mm × 47.6mm × 100mm
Storage Temperature: -40⁰C to 85⁰C
Relative Humidity: 5% to 95% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IPS S 1050 | – |
