Key Features & Benefits
1. Rugged Industrial Design for Operation in Harsh Environments (IP30 SPCC Metal housing )
2. Exceptional Modularity and Configuration Flexibility
3. High-Performance Switching Capacity and Throughput
4. Comprehensive Network Redundancy and Rapid Self-Recovery
5. Extensive and Flexible Power Input Options
6. Advanced Layer 2 Management and Intelligent Network Features
7. Robust Security and Advanced VLAN Capabilities
PRODUCT CATEGORIES
Introduction

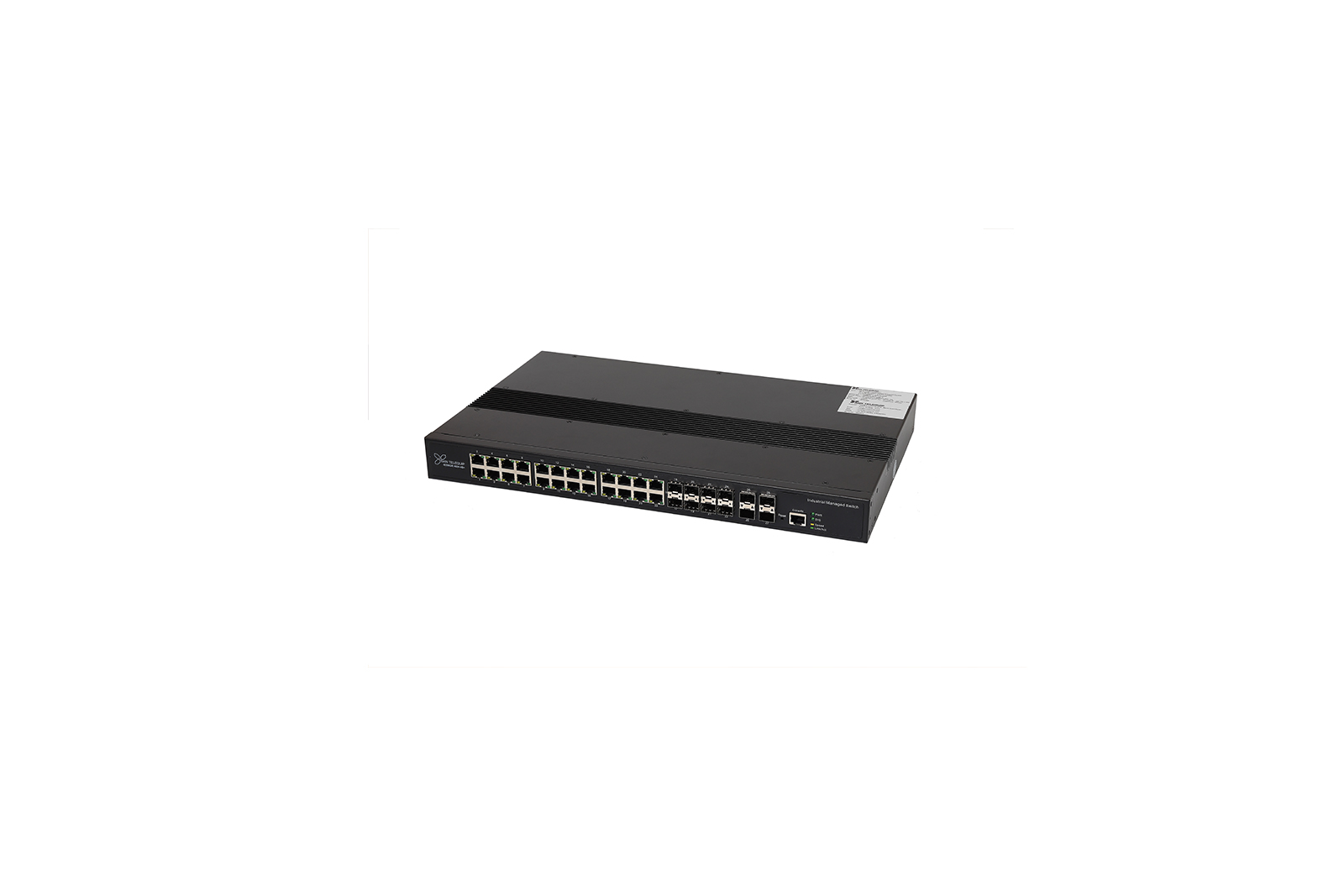

The IESMGR 3000-4S/4S+ A75R is a 28-port managed rack-mount switch whose primary value proposition is its highly flexible, modular design. The chassis features three dedicated slots that can be populated with a variety of 8-port modules, including Giga Copper, SFP, and Power-over-Ethernet (PoE) options. This allows network architects to precisely right-size the port configuration to match specific site requirements. To ensure operational continuity within demanding fault domains, the series is available in several redundant power configurations, including AC, DC, and mixed AC/DC input variants.
Engineered for reliability in harsh conditions, the switch features a fanless design and EMC Level 3 protection, guaranteeing stable operation across a wide temperature range of -40 to +75°C. High availability is a core design principle, with a network self-recovery mechanism based on redundant ring topologies that restores connectivity in less than 20ms, even under full load. Lifecycle management is streamlined through a multifunctional web dashboard, which provides access to intelligent features for traffic engineering such as Quality of Service (QoS), IGMP snooping, port mirroring, and advanced security settings.
IEEE 802.3ab for 1000BaseT(X),
IEEE 802.3z for 1000BaseX, IEEE 802.3ae For 10 Gigabit Ethernet Fiber,
IEEE 802.3x for Flow Control, Back pressure flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Flash Memory: 32MB NOR Flash
Priority Queues: 8
VLAN Table: 4096
MAC Table Size: 16k
Packet Buffer Size: 1.5 MB
Jumbo Frame: 9216 Byte
Switching Fabric Capacity: 56 Gbps (1G uplinks) / 128 Gbps (10G uplinks)
Maximum throughput: 41.67 Mpps (1G uplinks) / 95.24 Mpps (10G uplinks)
Modular Ports: 3 module-dedicated slots for user-configurable communication modules.
Single DC: 48 to 57 VDC
Redundant AC: 2 x 110 to 220 VAC
Redundant DC: 2 x 48 to 57 VDC
Mixed Redundant: 1 x 110-220 VAC & 1 x 48-57 VDC
For PoE Modules only: 2 x 48-57 VDC (each power input max 360W, requiring both inputs for the full 720W budget)
Power Consumption:
CPU Board (AC): 64W Max
CPU Board (DC): 32.7W Max
PoE (802.3af Full Load): 370W Max
PoE (802.3at Full Load): 720W Max

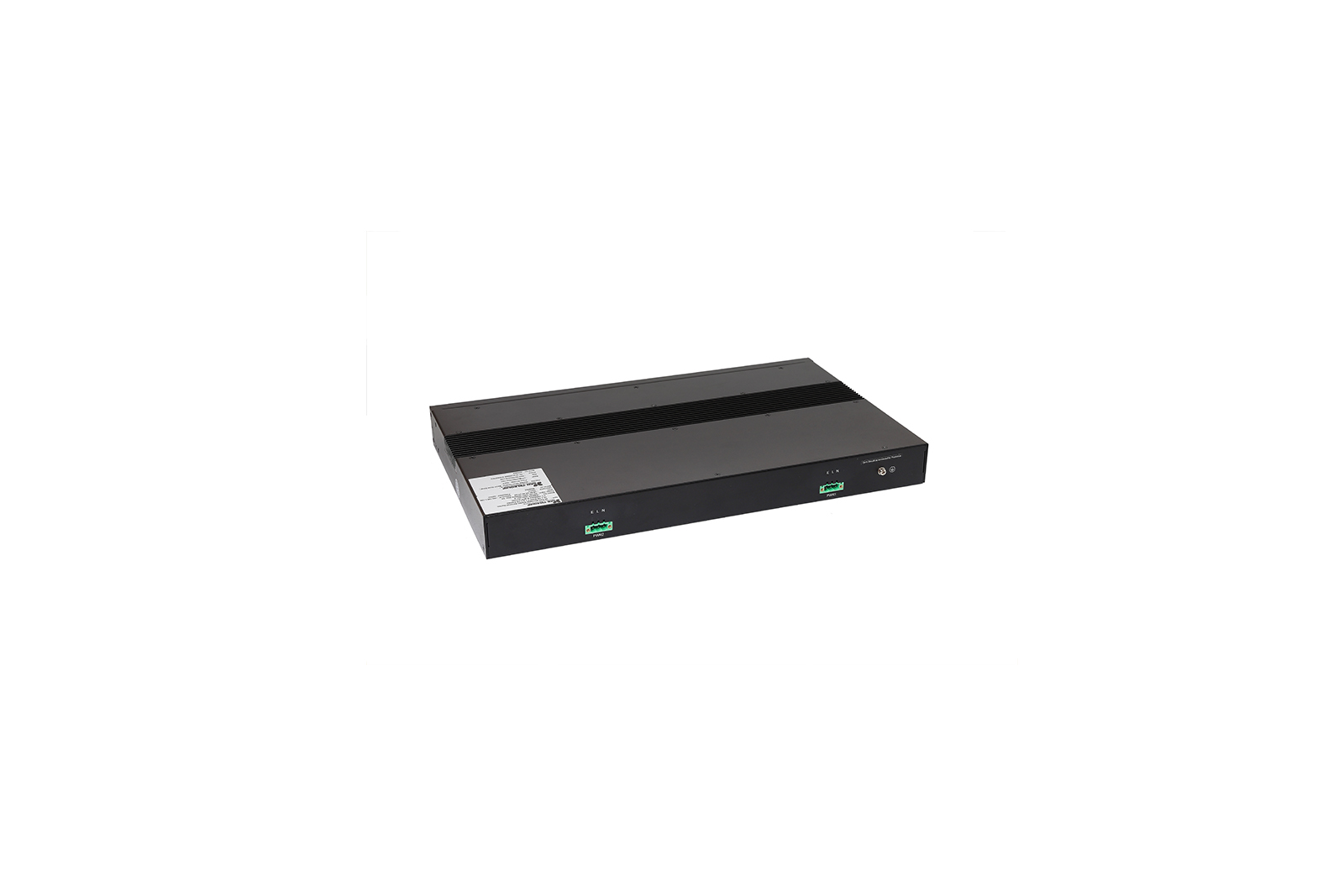

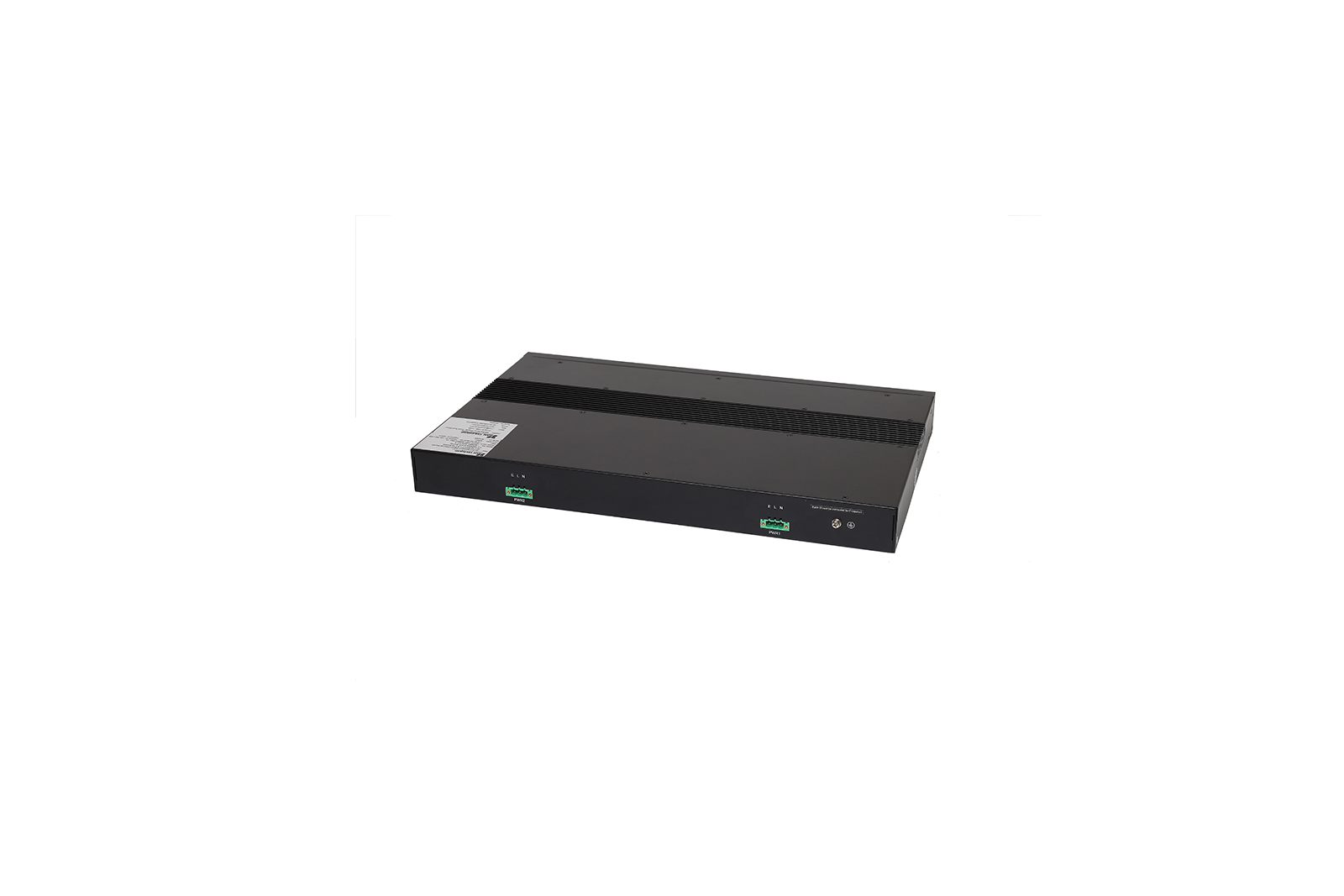

Connectors: 1 or 2 AC power inlets
1 or 2 lockable 3-pin terminal blocks for DC power
2 lockable 3-pin terminal blocks for PoE DC power.
Reverse Polarity Protection: Yes
Dimensions: 440 x 44 x 340 mm excluding screws and kit)
Weight: 5Kg (chassis only, without modules)
Installation: 1U Rack-mount (kit included)
Storage Temperature: -40 to 85°C
Ambient Relative Humidity: 95% (Non-condensing)
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| IESMGR 3000-4S+ A A A75R | – | – | – | – | |||
| IESMGR 3000-4S A A A75R | – | – | – | – |
