Introduction

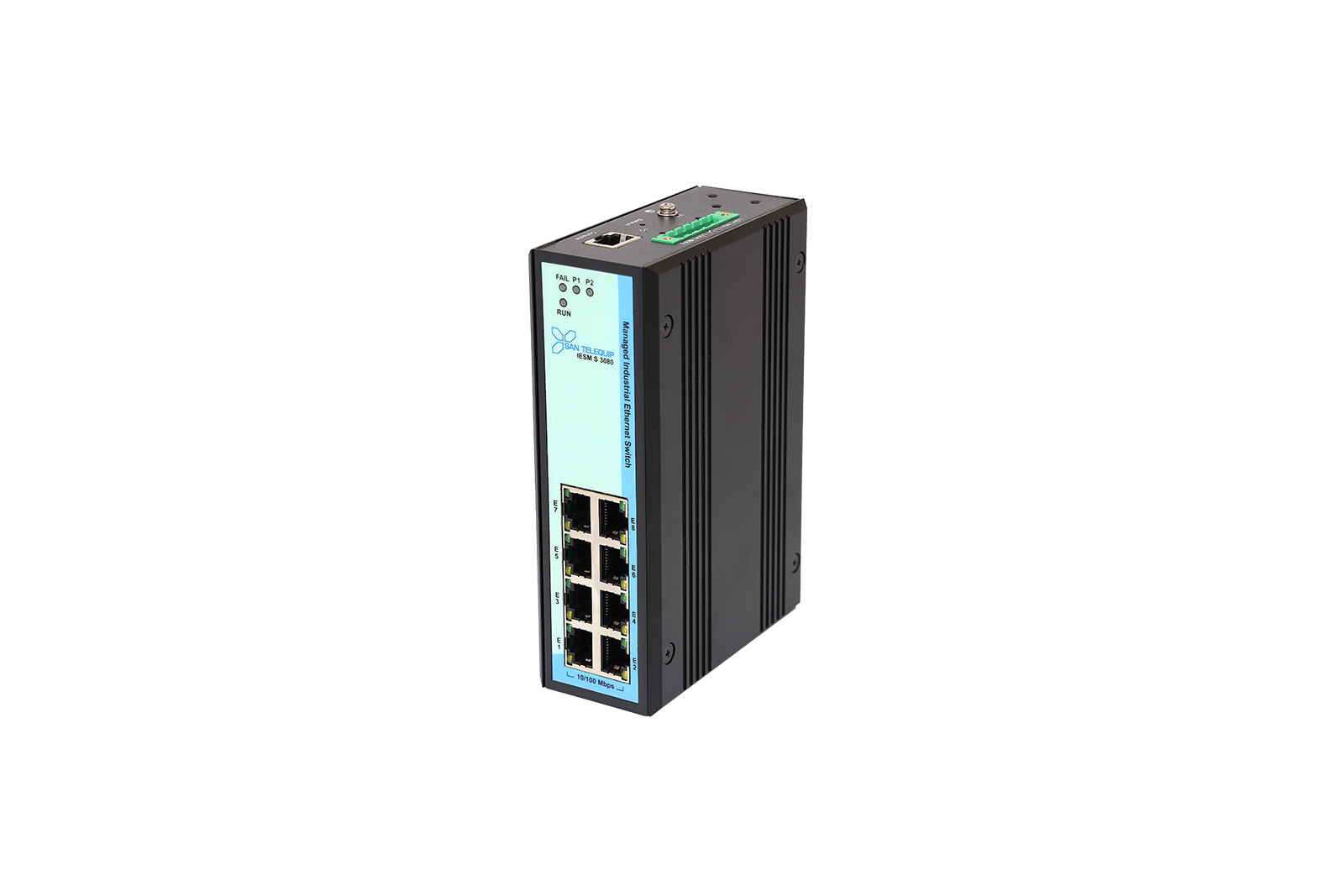

The IESM S 3080 is an 8-port managed industrial Ethernet switch series that provides up to eight 10/100Base-T(X) ports for direct device connection. It supports a comprehensive set of industrial field Ethernet Layer 2 protocols, making it a powerful tool for controlling and securing network traffic at the edge. Management is flexible, with support for a Command-Line Interface (CLI) via a dedicated console port.
Key characteristics of the IESM S 3080 include its low power consumption, a fanless design that ensures silent and maintenance-free operation, and a wide operating temperature range of -40 to 85°C. These features, combined with its robust management and security capabilities, position it as a highly reliable and cost-effective solution for a wide variety of industrial automation and control applications.
IEEE802.1p, IEEE802.1s, IEEE802.1D, IEEE802.1W
Flow control : IEEE802.3x Flow control, Back pressure flow control
Transmission Mode: Store-and-Forward
MAC Address Buffer: 8K
Switching Bandwidth: 5.6G
Power Consumption (Full Load): <15W
MTBF: 100,000 hrs

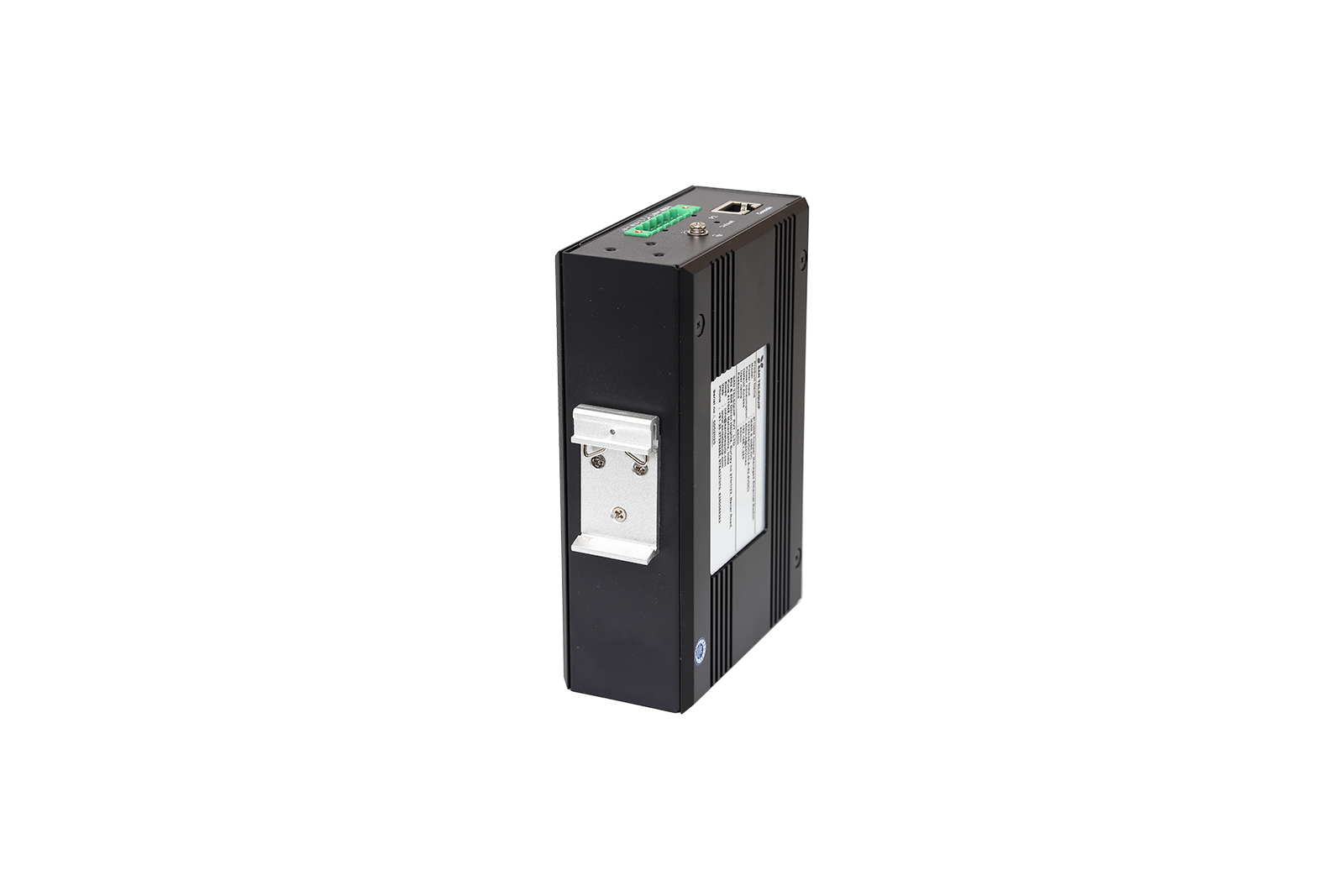

Installation: DIN-Rail
Dimensions : 150mm * 70mm * 100mm
Storage Temperature: -40⁰C to 85⁰C
Relative Humidity: 0~95% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IESM S 3080 DC | – |
