Key Features & Benefits
1. Industrial Grade Reliability and Environmental Endurance (IP40 Aluminium Enclosure)
2. Advanced Network Redundancy and Rapid Recovery (A-Ring)
3. Comprehensive Traffic Management via QoS and VLANs
4. Flexible Port Combinations and Long-Distance Fiber Support
5. High-Capacity Switching Performance
6. Extensive Network Monitoring and Debugging Tools
7. Redundant Power Input and Failure Alarm Functionality
Certifications
PRODUCT CATEGORIES
configurations of up to 8 * 10/100 T(X) copper ports and 2 * Gigabit combo ports with SFP slots.
IESM 308-2GC O
6 * 10/100Base-T copper ports and 2 * 100Base-FX fiber ports.
IESM S 306-2F
16 * 10/100 copper ports
IESM S 3016 DC
16 * 10/100 copper ports.
IESM S 3016-4S-DC
supports up to 16 10/100 Copper ports and fiber connectivity
IESM S 3016-4SG-D
up to 8 10/100Base-T(X) RJ-45 ports
IESM S 3080 DC
Introduction

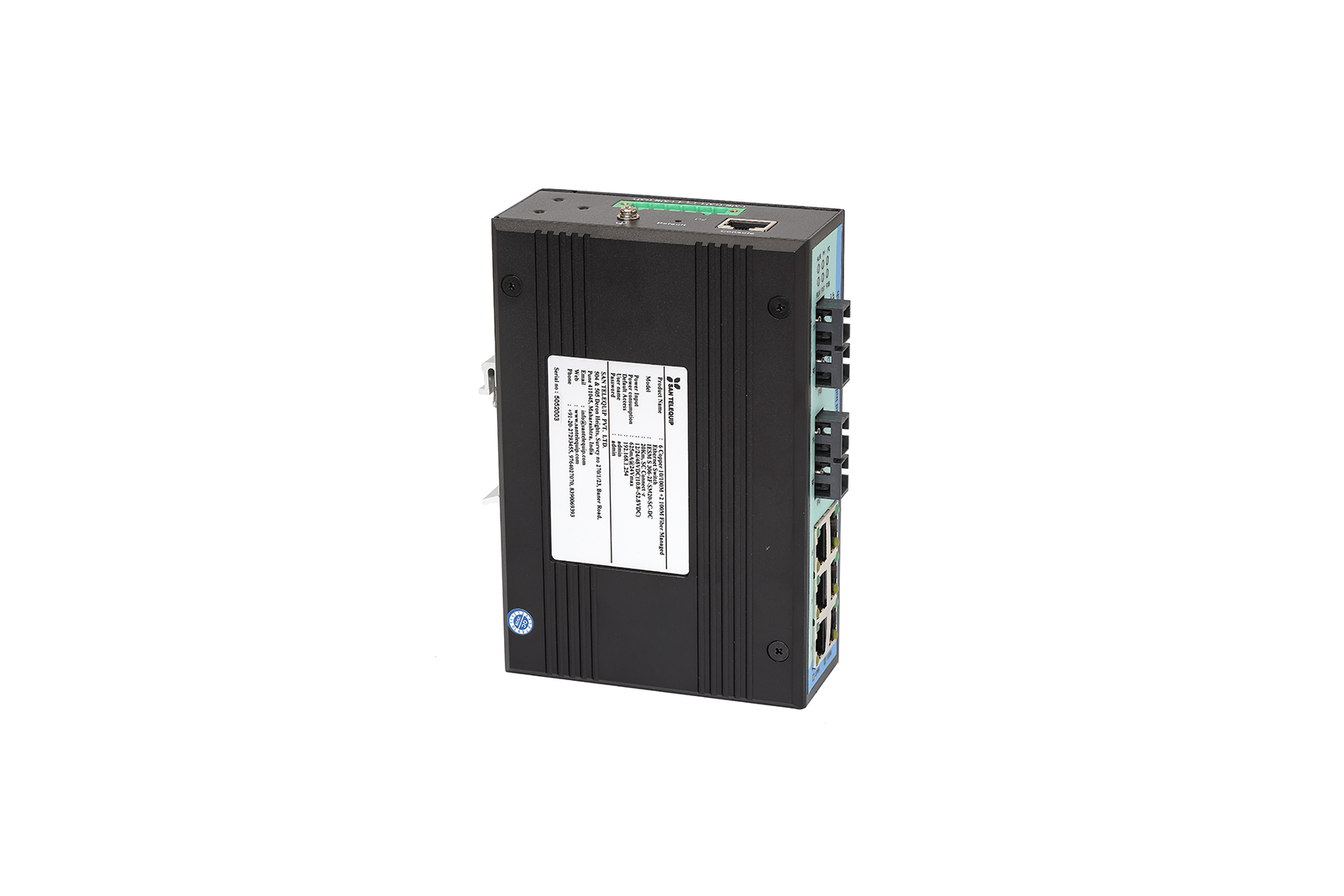

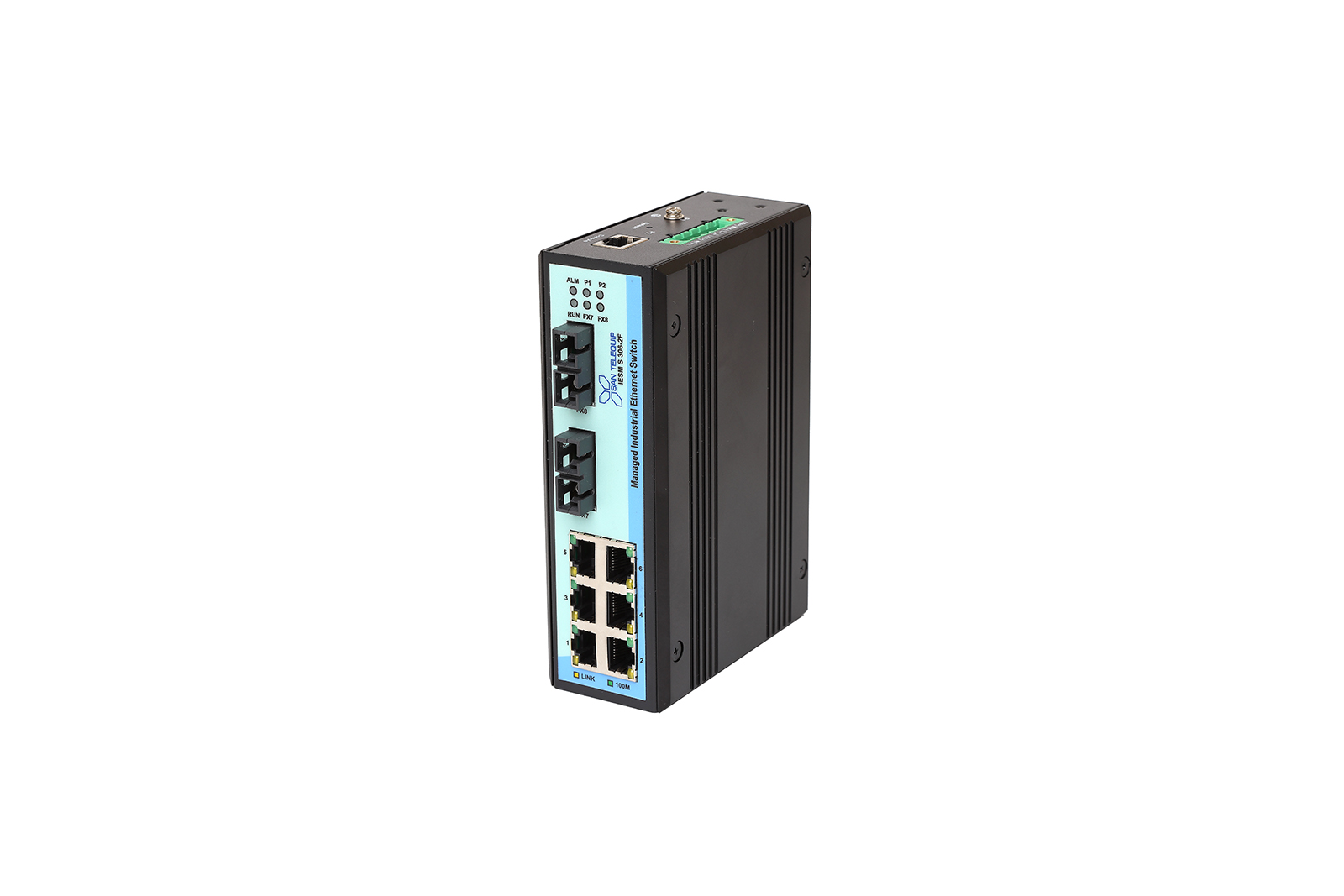

As a managed industrial Ethernet switch, the IESM S 308- 2F provides a flexible Layer 2 networking solution. It offers various port configurations, including up to eight 10/100Base-T(X) copper ports, which can be combined with up to four 100Base-FX fiber ports or up to two Giga Fiber ports. This allows for seamless integration into diverse network architectures, connecting local devices via copper while leveraging fiber uplinks for long-distance communication.
The series delivers comprehensive management functions essential for modern industrial networks. It supports robust protocols like Port Mirroring for diagnostics, VLAN for network segmentation, IGMP for multicast traffic optimization, QoS for data prioritization, and STP/RSTP for creating redundant network paths. Accessible via CLI, Web, Telnet, or SNMP, these management tools empower administrators to build and maintain a secure and efficient network, making it a highly reliable solution for automation, intelligent transportation, and video monitoring systems.
IEEE 802.1p, IEEE 802.1s, IEEE 802.1D, IEEE 802.1W
Transmission Mode: Store-and-forward
MAC Address Buffer: 8K
Switching Bandwidth: 5.6G
Protocol : ICMP, TCP, HTTP, Telnet, A-Ring, STP/RSTP, SNMP, LLDP, IGMP-Snooping, GMRP
Flow control : IEEE802.3x flow control, back pressure flow control
Fiber Ports: Up to 4 x 100Base-FX (SC/FC/ST), Up to 2 x 1000FX (SC/ST/FC)
Single-mode Fiber: 1310nm (20/40/60Km), 1550nm (20/40/60/80/100/120Km)
Multi-mode Fiber: 1310nm (2Km)
Voltage Input (Optional): Dual 88 to 264V AC/DC
Power Consumption: <15W (Full load)

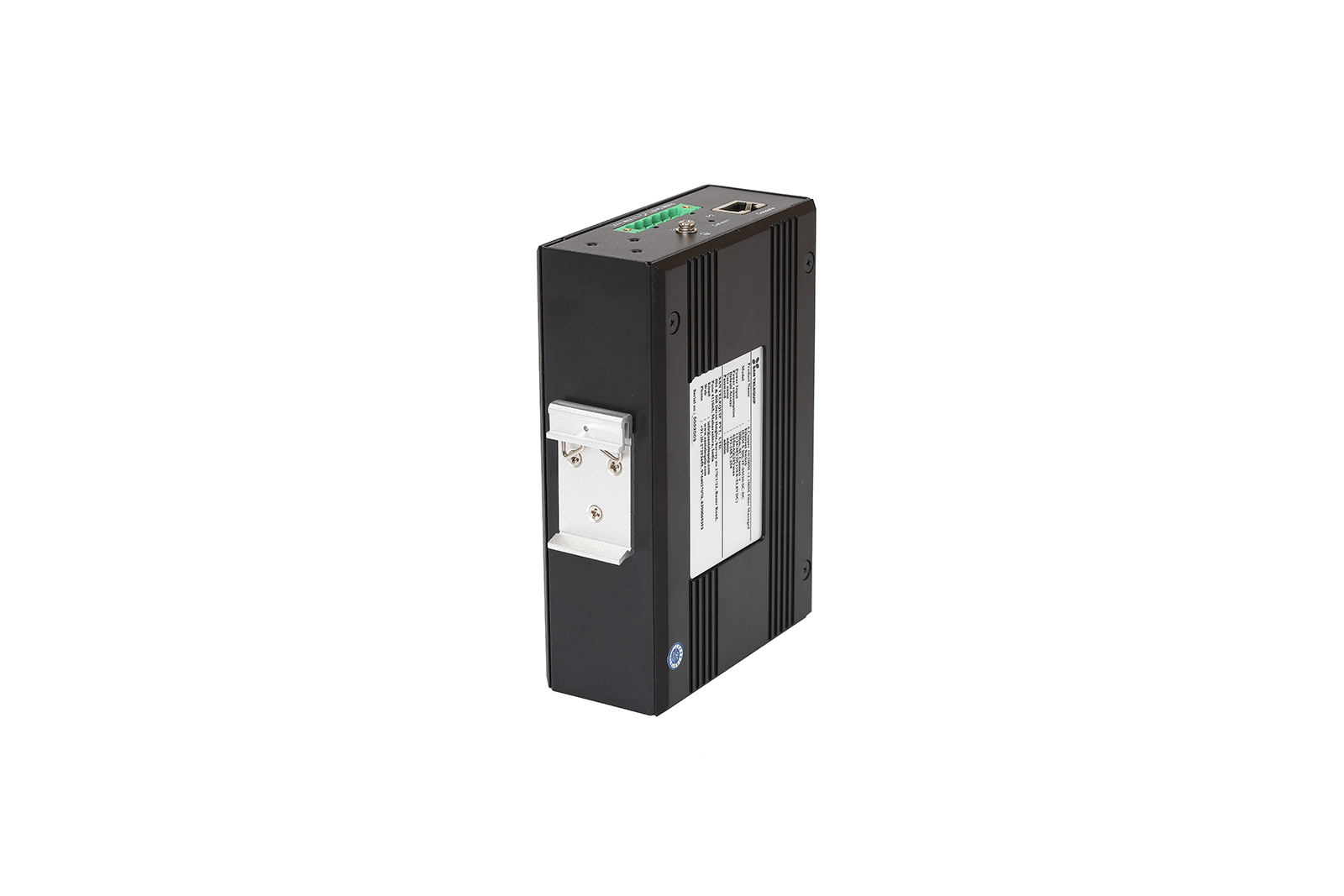

Installation: DIN-Rail
Dimensions : 150 mm x 47.6 mm x 100 mm
Storage Temperature: -40°C to 85°C
Relative Humidity: 0% to 95% (non-condensing)
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| IESM S 308-2F-MM-SC-DC | – | – | – | ||||
| IESM S 308-2F-SM20-SC DC | – | – | – |
