Introduction

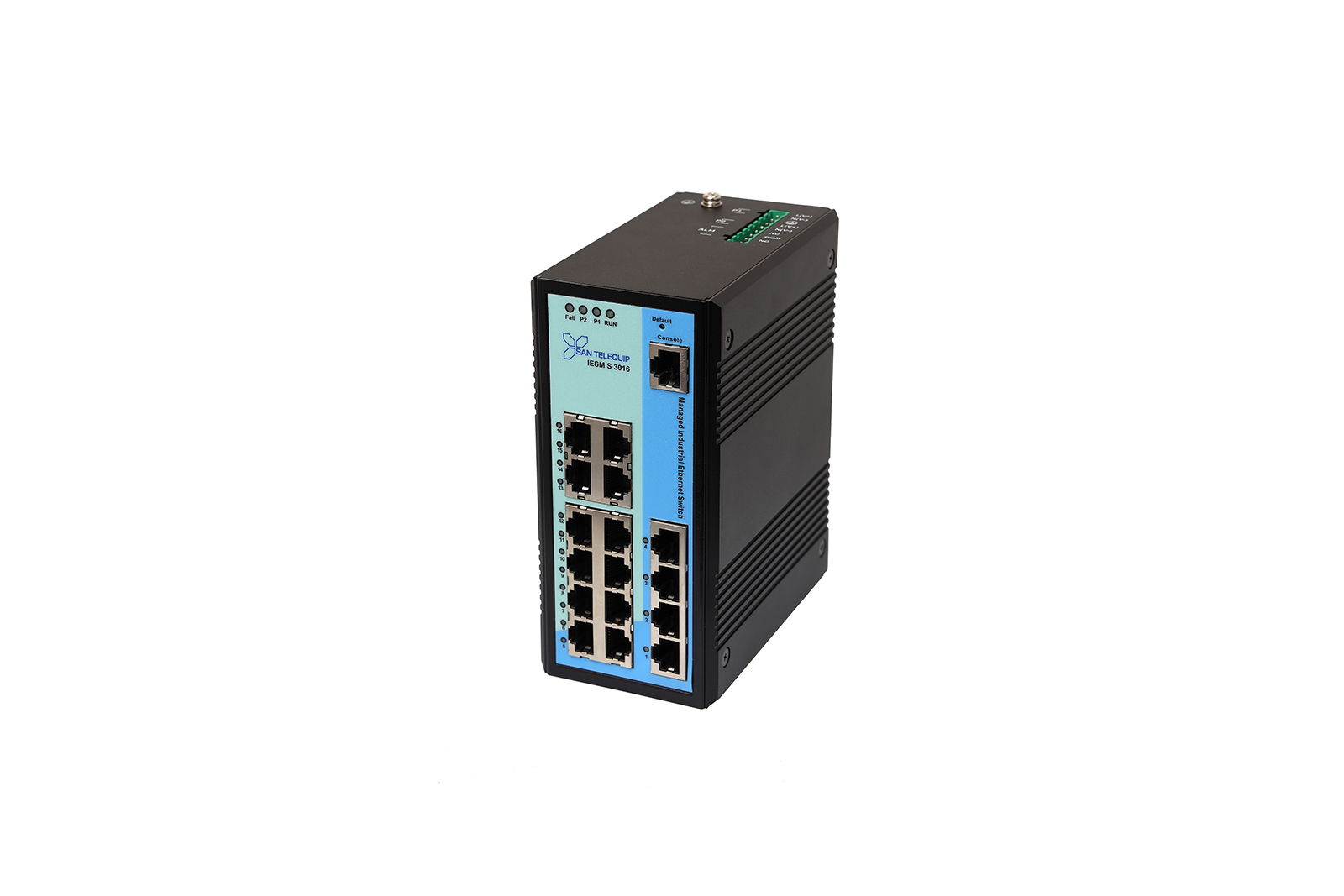

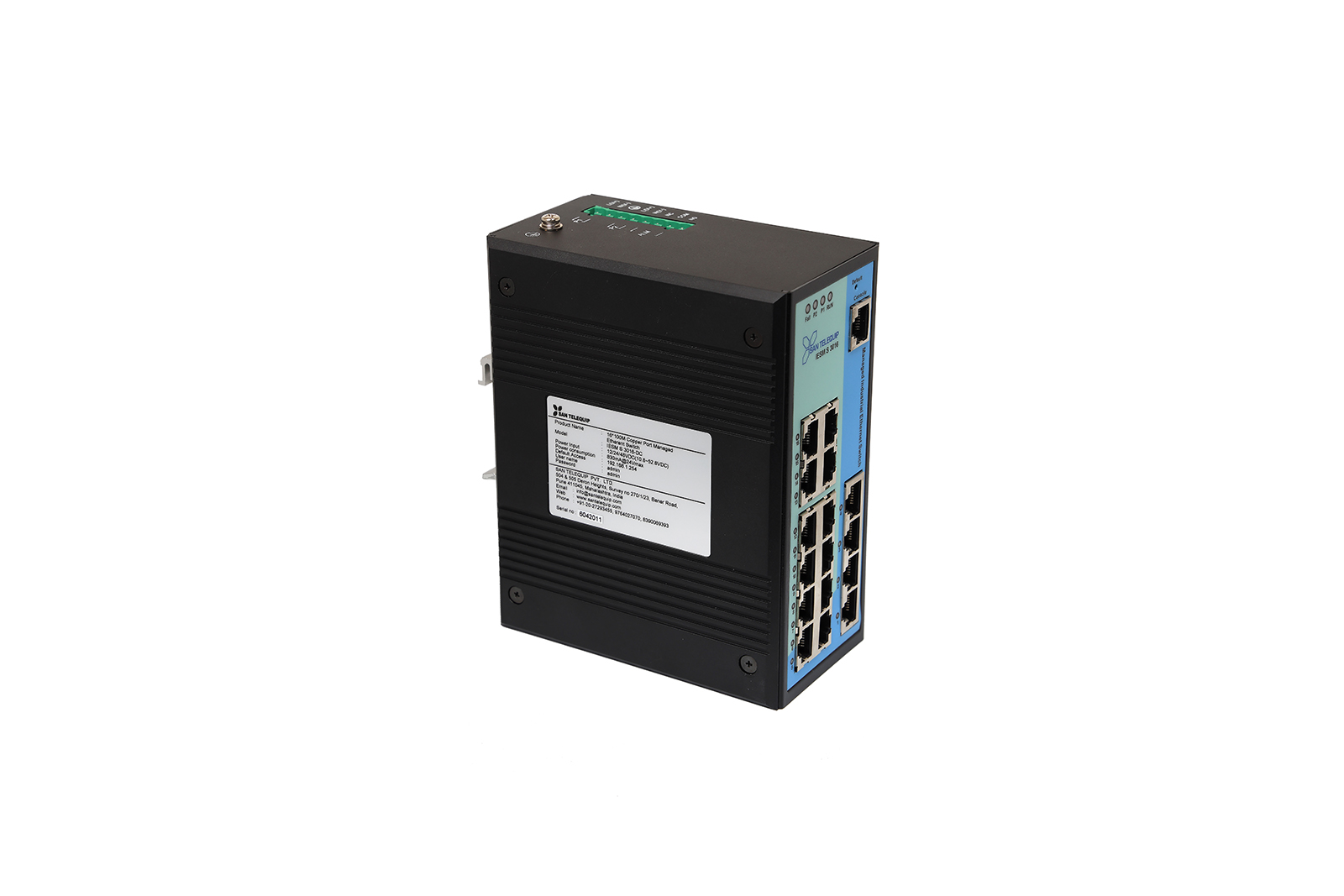

The IESM S 3016 is a Layer 2 Managed Industrial Ethernet switch defined by its specific port configuration of 16 10/100Base-T(X) Copper ports. This high-density layout is designed to serve as a reliable access-layer solution, connecting a multitude of field devices directly to the network.
It offers comprehensive management capabilities, including a Command-Line Interface (CLI) via a dedicated console port, as well as Web-based and SNMP management. With a strong feature set that includes advanced VLAN, QoS, and redundancy protocols, the IESM S 3016 provides a secure and dependable networking platform for industrial automation, intelligent transportation, and video monitoring applications that demand a high number of copper connections.
MAC Address Buffer: 8K
Switching Bandwidth: 11.2G
Protocol : ICMP, TCP, HTTP, Telnet, A-Ring, STP/RSTP, SNMP, LLDP, IGMP-Snooping, GMRP
Flow Control IEEE802.3x flow control, back pressure flow control
110 to 220V AC/DC (88 to 264V Range) Power Consumption: <10W (Full load)
Weight: 200g

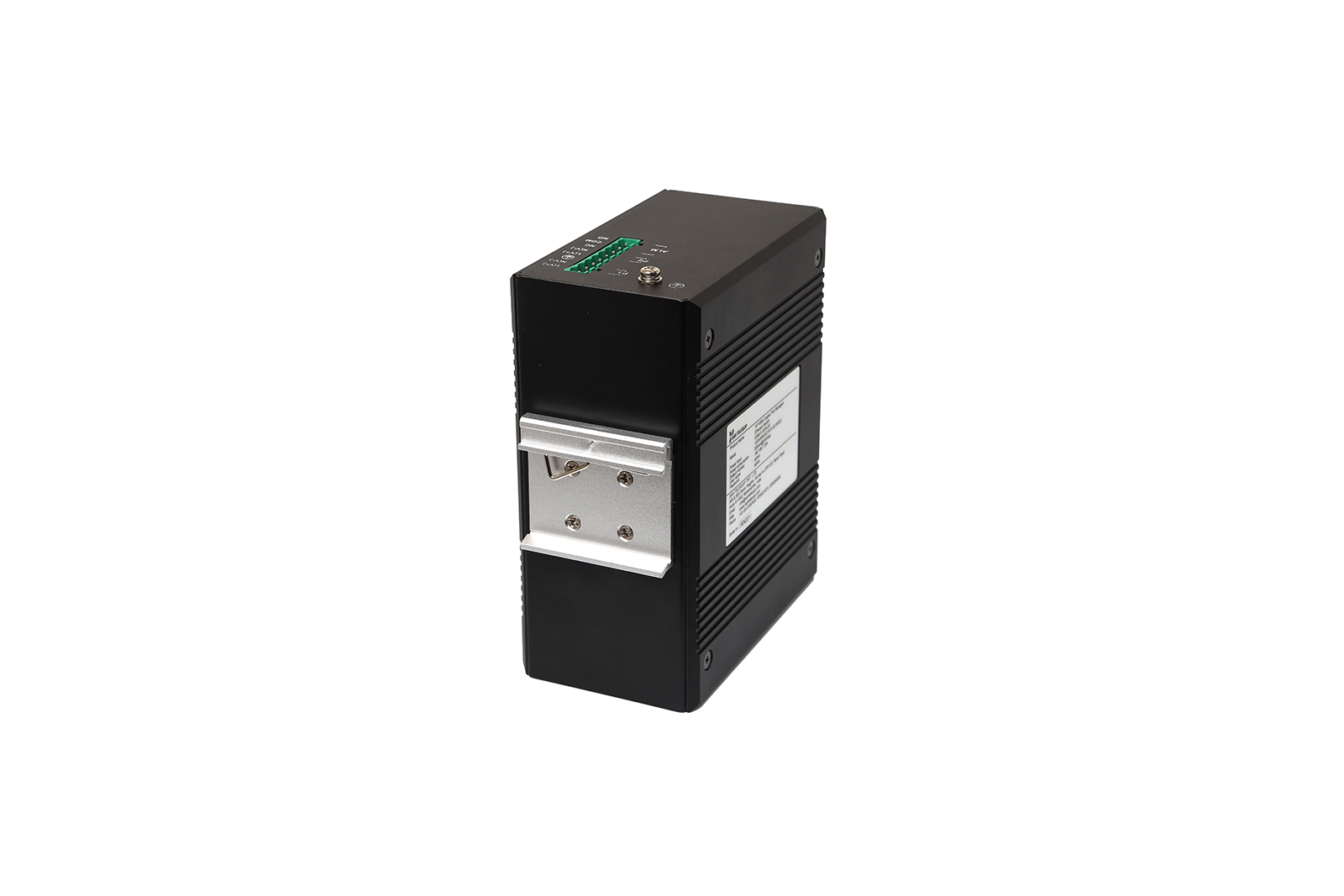

Installation: DIN-Rail
Dimensions : 150mm x 70mm x 120mm
Storage Temperature: -40°C to 75°C
Relative Humidity: 0 to 95% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IESM S 3016 DC | – |
