Key Features & Benefits
1. Flexible and High-Density Port Combinations
2. Comprehensive Network Redundancy Protocols
3. Advanced Industrial-Grade Resilience and Environmental Hardening (IP40 Aluminium Enclosure)
4. Quality of Service (QoS) and Traffic Segmentation
5. Robust Management and Secure Access
6. Control Over Multicast and Broadcast Storms
7. Advanced Network Monitoring and Debugging Tools
PRODUCT CATEGORIES
configurations of up to 8 * 10/100 T(X) copper ports and 2 * Gigabit combo ports with SFP slots.
IESM 308-2GC O
6 * 10/100Base-T copper ports and 2 * 100Base-FX fiber ports.
IESM S 306-2F
8 * 10/100Base-T copper ports and 2 * 1000FX fiber ports
IESM S 308-2F
16 * 10/100 copper ports
IESM S 3016 DC
16 * 10/100 copper ports.
IESM S 3016-4S-DC
up to 8 10/100Base-T(X) RJ-45 ports
IESM S 3080 DC
Introduction

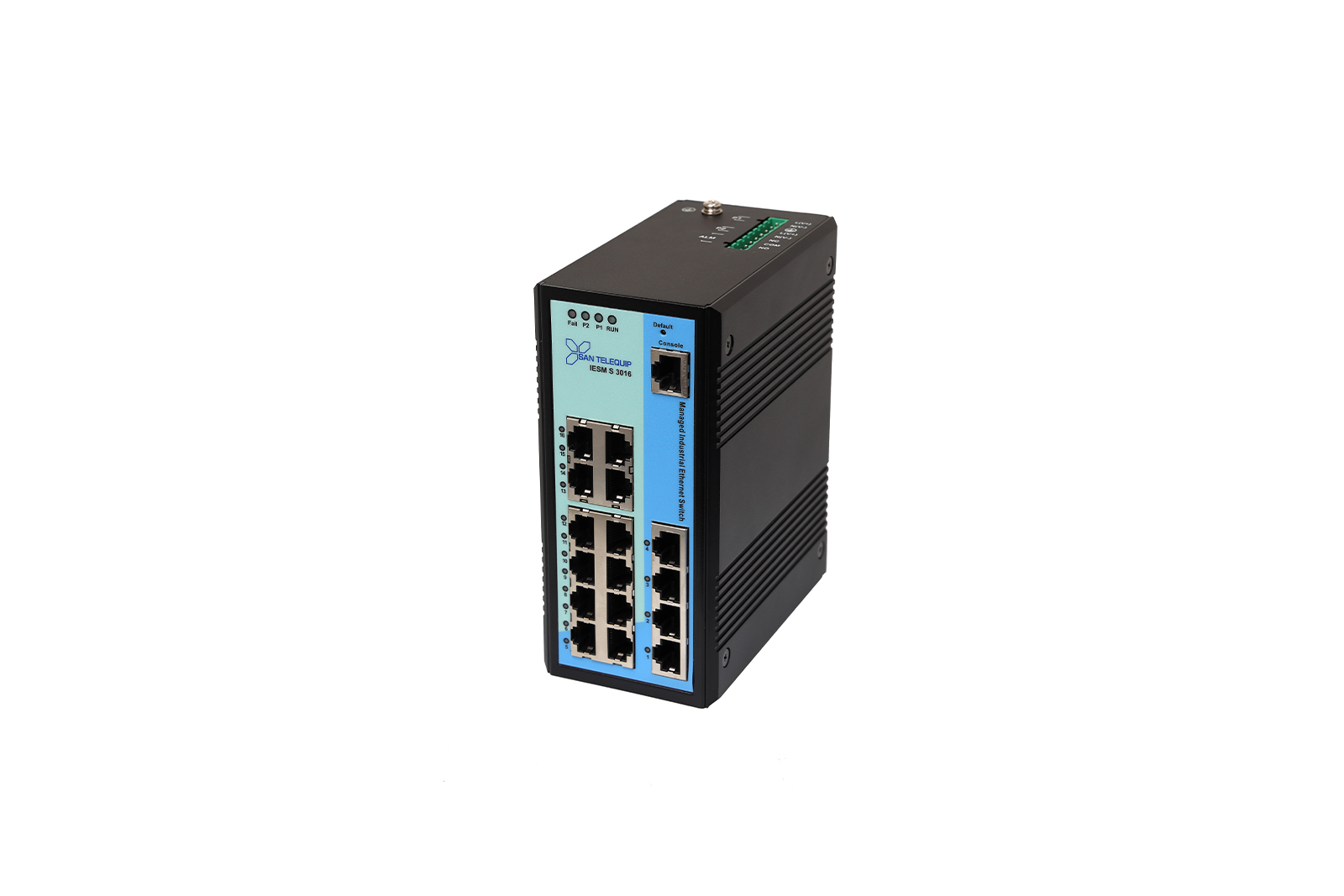

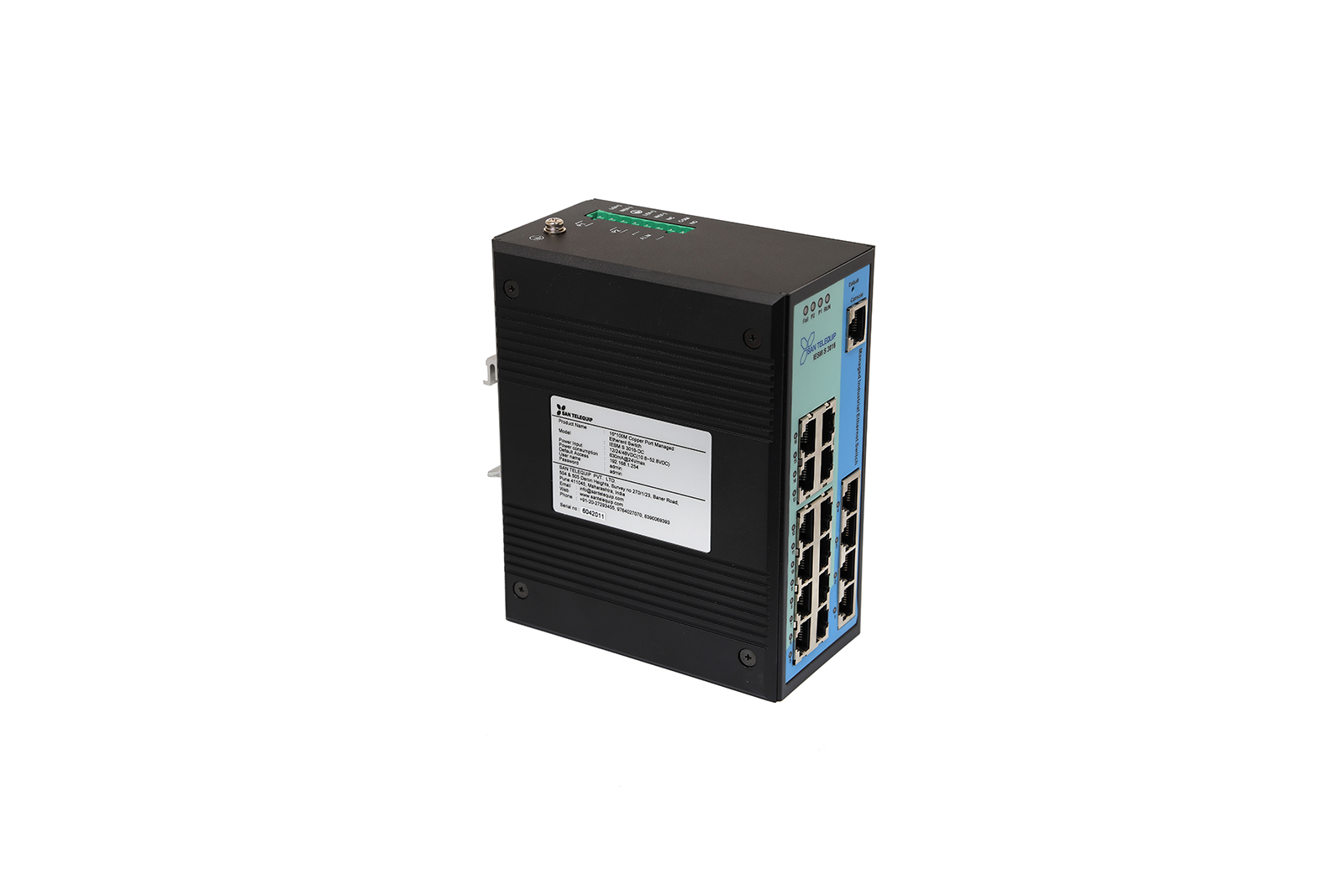

The IESM S 3016-4SG-D is a line of managed industrial Ethernet switches engineered to deliver reliable, high-performance networking for harsh operational environments. This hardware is strategically designed for critical applications in industrial automation, intelligent transportation systems, and video surveillance, where network uptime and data integrity are paramount. By combining a ruggedized physical design with advanced management capabilities, the IESM S 3016-4SG-D provides a safe and dependable solution for industrial network access.
At its core, the IESM S 3016-4SG-D offers significant flexibility in port configuration, supporting up to 16 10/100Base-T(X) copper ports, 4 100Base-FX fiber ports, and up to 4 1000FX SFP ports. Management is streamlined through a dedicated console port with Command Line Interface (CLI) access, supplemented by Web, Telnet, and SNMP capabilities. The series fully supports Layer 2 industrial field protocols and key management functions such as VLAN, IGMP, QoS, STP, and RSTP, ensuring seamless integration and control within complex industrial networks.
IEEE802.1x, IEEE802.3x
Flow Control
IEEE802.3x flow control, back pressure flow control
Transmission Mode: Store-and-Forward
MAC Address Buffer: 8K
Switching Bandwidth: 11.2G
Fiber Ports: Up to 4 of 100Base-FX (SC/FC/ST) and Up to 4 1000FX SFP Ports
Single-mode Fiber (1310nm): 20/40/60Km
Single-mode Fiber (1550nm): 20/40/60/80/100/120Km
Voltage Input Option 2: Dual 110 to 220V AC / DC (Range 88 to 264V)
Power Consumption: <15W (Full load), 625mA@24V

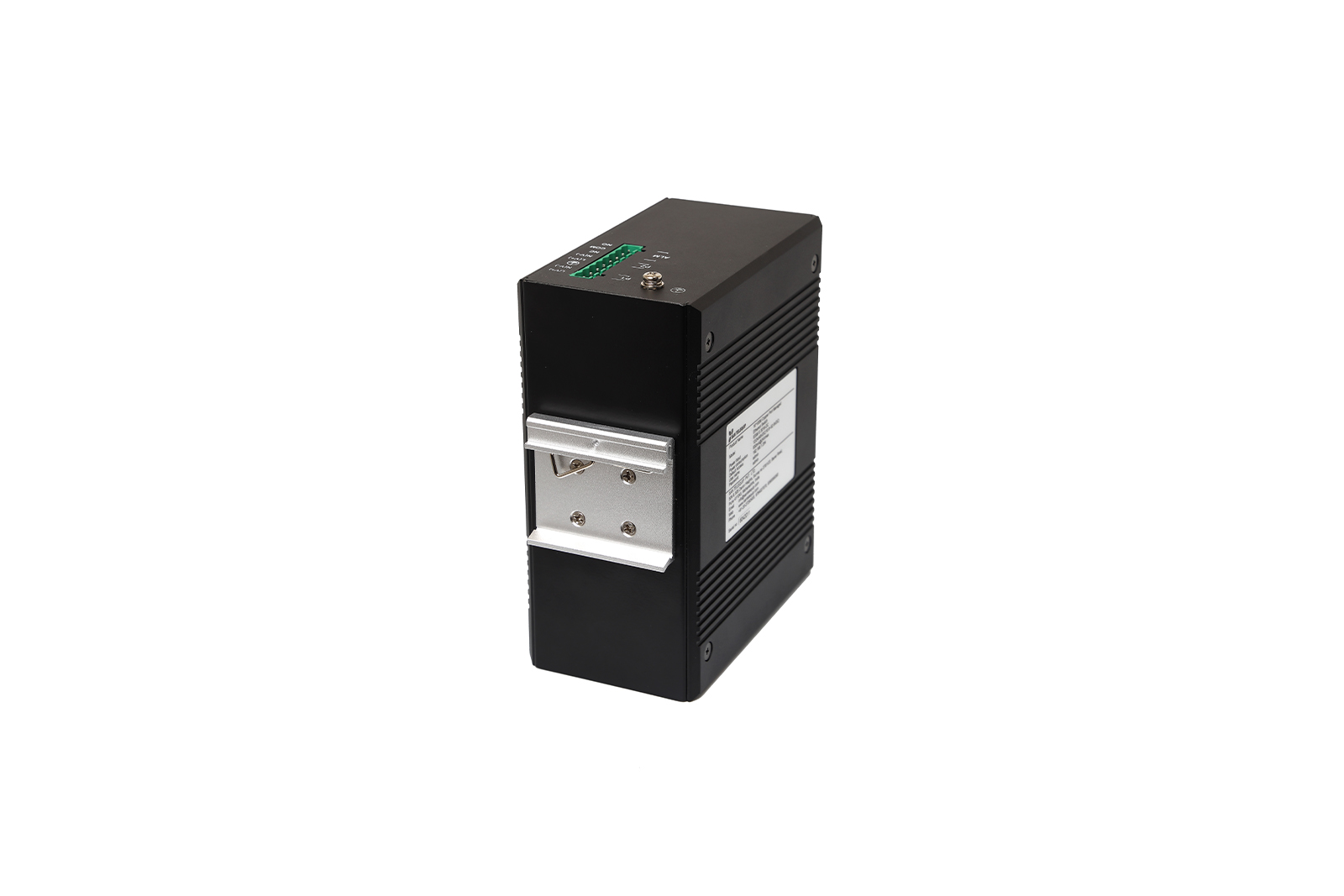

Installation: DIN-Rail
Dimensions (W*H*D): 70 mm * 150mm * 120mm
Weight: 200g
Storage Temperature: -40⁰C to 75⁰C
Relative Humidity: 0 to 95% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IESM S 3016-4SG-D | – |
