Key Features & Benefits
1. Extreme Temperature Operation and Robust Industrial Housing (IP40)
2. Comprehensive Electrical and Surge Protection
3. Redundant Power Input and Wide Voltage Range Flexibility
4. Advanced Network Redundancy and High Availability Features
5. Managed L2 Functionality and Robust Network Security
6. Flexible Gigabit Port Configuration and High Switching Capacity
7. Rapid Network Redundancy via ERPS (G.8032)
Certifications
PRODUCT CATEGORIES
6-port Industrial Gigabit Managed Ethernet Switch
IESMG 304-2S A
10-port switch with eight 10/100/1000M RJ45 ports and two 100/1000Base-X SFP slots
IESMG 308-2S A
12-port L2 managed switch
IESMG 308-4S A
14-port L2 managed switch
IESMG 308-6S A
16-port switch with twelve 10/100/1000M RJ45 ports and four 1.25G/155M SFP slots
IESMG 3012-4S A
24-port switch with twelve 10/100/1000M RJ45 ports and twelve 1.25G/155M SFP slots
IESMG 3012-12S A
4-port Lite Managed switch with 2 × Gigabit RJ45 ports and 2 × 1.25G SFP ports
IESMG 3016-4S Y
Introduction

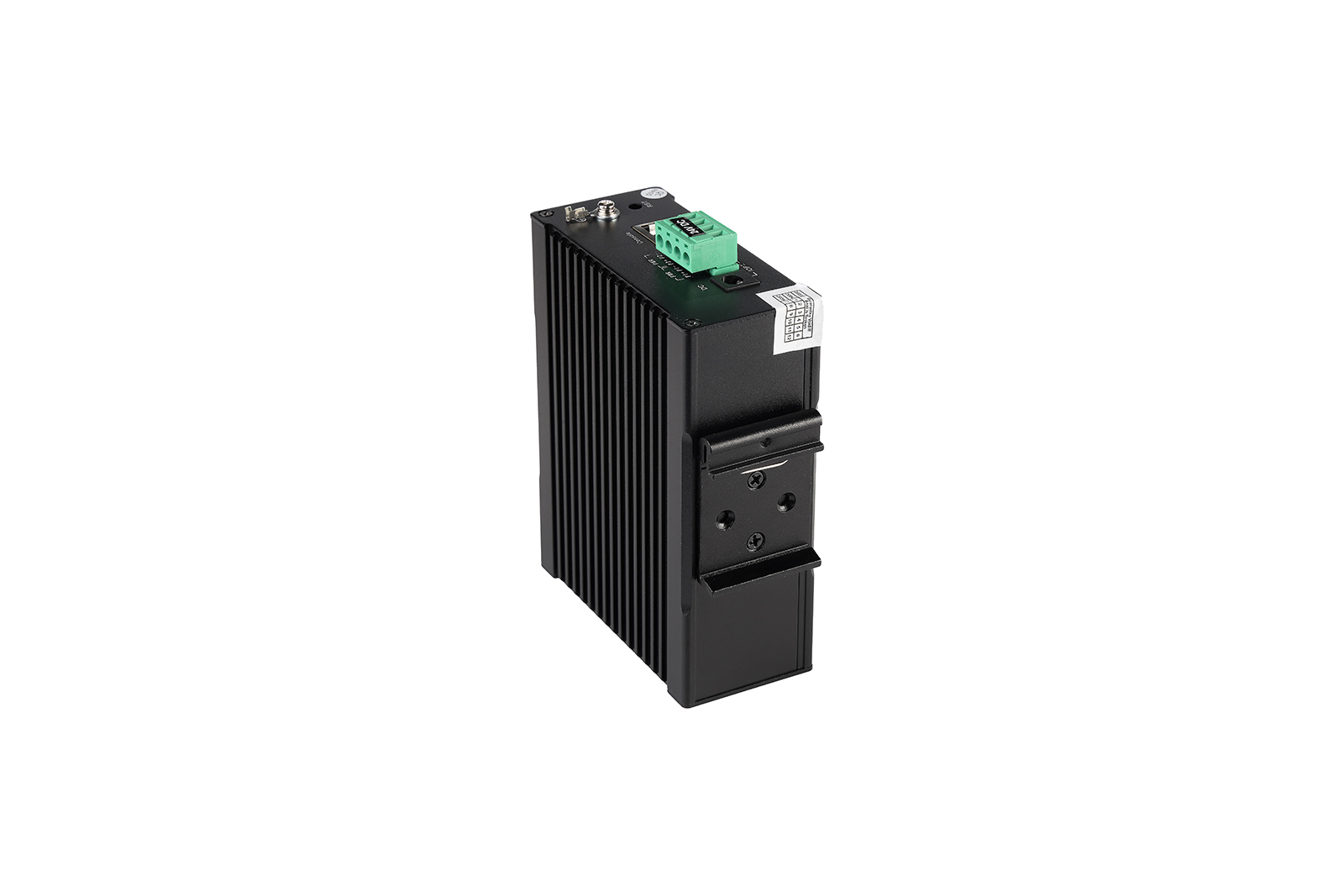

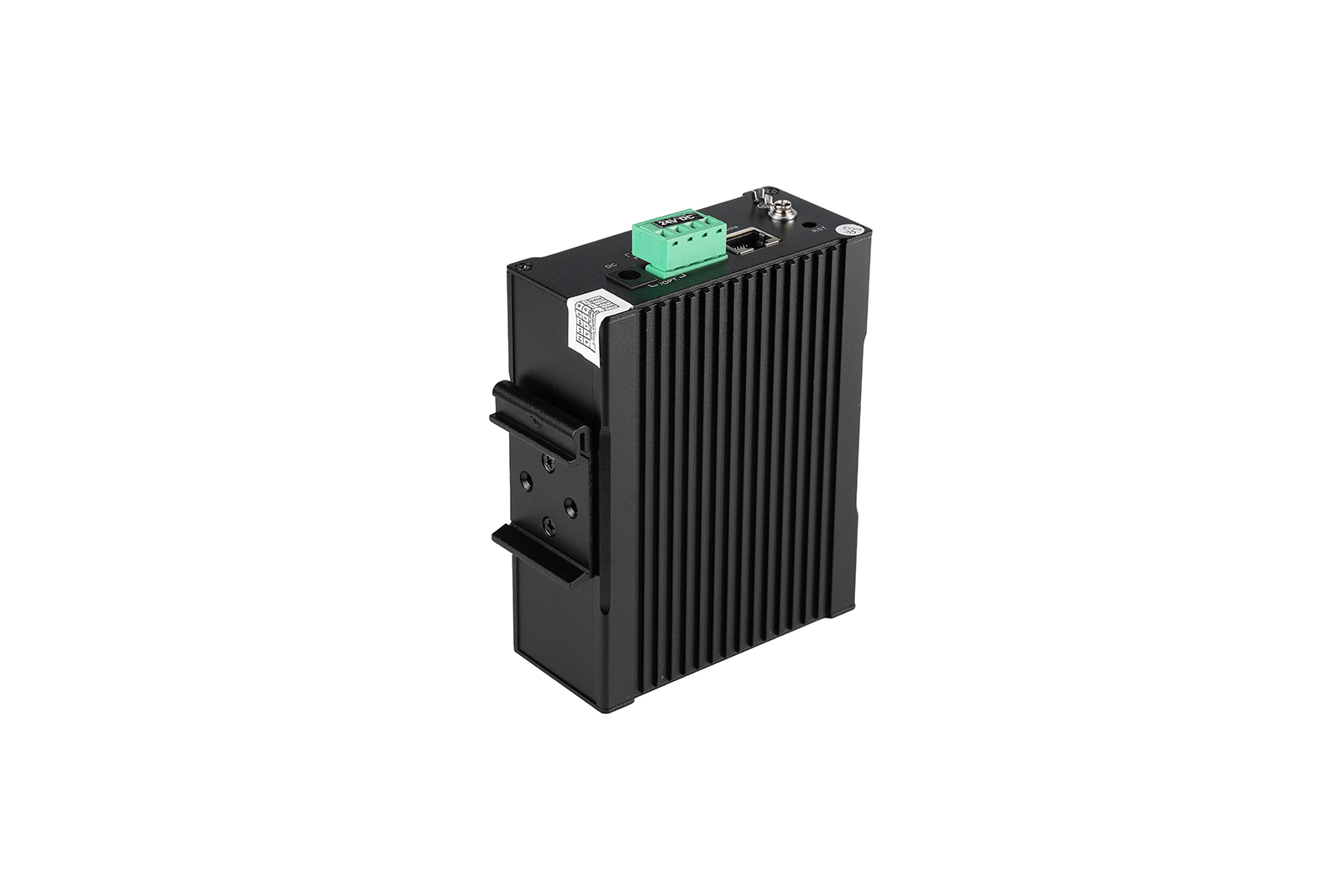

The IESLMG 302-2S A is a highly compact L2 Lite Managed switch specifically designed for targeted applications in industrial automation, intelligent transportation systems (ITS), security, and mining. Its focused feature set provides the necessary network intelligence and control for these environments without the complexity or cost of a fully managed switch.
The hardware design is exceptionally robust, emphasizing reliability in the field. It features dual DC power inputs, extensive electrical protections against lightning, surge, EFT, and ESD, and the ability to operate reliably in extreme temperatures. This combination of a streamlined software experience and fortified hardware makes it a dependable choice for critical, low-port-count deployments.
IEEE 802.1Q VLAN, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
MAC Address Table: 8K
Data Buffer: 1M
Maximum Frame Size: 9.6K Jumbo Frame
Fiber Ports: 2 * 100 or 1000Base-X SFP Slot
Console Port: RS232 (RJ45)
Reset: Yes, Reset Switch
Power Connector: 4-PIN Removable Terminal Block
Power Consumption: < 6W
Power Protection: Overload Voltage, Overload Current, Reverse Polarity
Surge/ESD Protection: 4KV surge (Ethernet/Fiber), 4000VDC EFT (Power),
8/15KV ESD
Dimensions: 120 * 95 * 40mm
Weight: 500g
Mounting: DIN Rail, Wall mounting (with optional kit)
Relative Humidity: 5 - 95% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IIESLMG 302-2S A | – |
