- IESG 1050 EN
Key Features & Benefits
1. Industrial Grade Power Reliability and Protection (IP40)
2. Robust Environmental Durability and High Operating Temperature Range
3. Superior Network Protection Against Electrical Hazards
4. High-Performance Gigabit Switching Capabilities
5. Simplified Installation and Network Management Features
6. Advanced Traffic Handling and Configuration Flexibility
7. Specific Application Suitability
Introduction

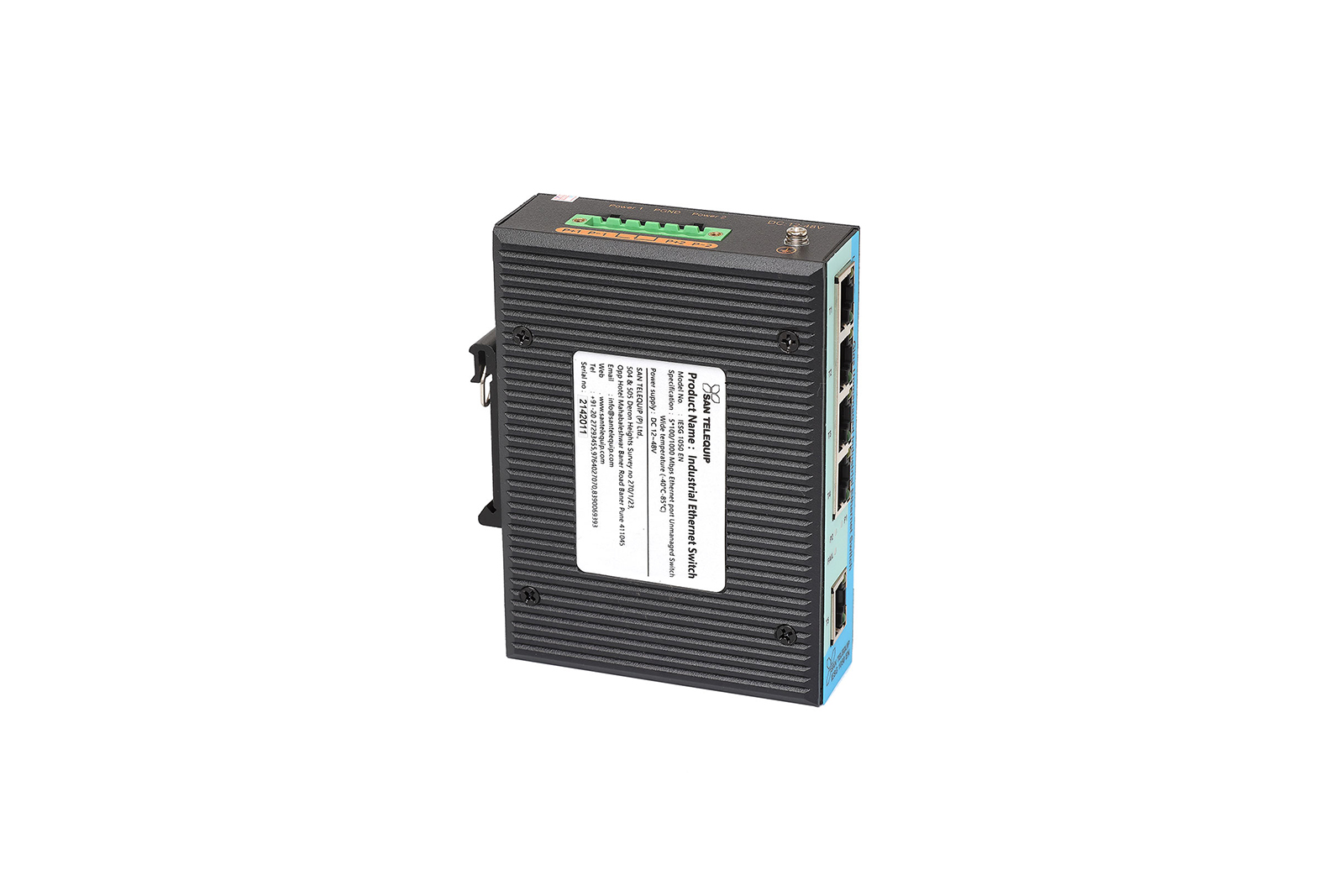

The IESG 1050 EN is a 5-port 10/100/1000Mbps industrial Ethernet switch designed specifically for straightforward, high-speed connectivity. With five auto-negotiating RJ45 ports, it serves as a robust connection hub for devices such as network cameras, industrial VoIP phones, and wireless APs. As a switch designed for connecting standard edge devices, it is optimized for standard Ethernet packet sizes, ensuring reliable communication without unnecessary complexity.
This switch is engineered for extreme ruggedness. Its standout feature is 6KV network port surge protection, offering superior defense against lightning and other severe electrical events. The fanless design ensures silent operation and eliminates a potential point of mechanical failure, while redundant power inputs and broadcast storm control further enhance its reliability, making it an excellent choice for the harshest industrial applications.
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Packet Buffer Memory: 2M
MAC Address Table: 4K
Forwarding Mode: Store-and-Forward
Packet Forwarding Rate (10/100/1000Mbps): 14880/148800/1488000 pps/port
- 100BASE-TX: Cat5 or later UTP (≤100 meter)
- 1000BASE-TX: Cat6 or later UTP (≤100 meter)
Power Consumption: <5W
Connectors: 6 Pin Terminal Block
Overload Protection: 20A
Reverse Polarity Protection: 30s

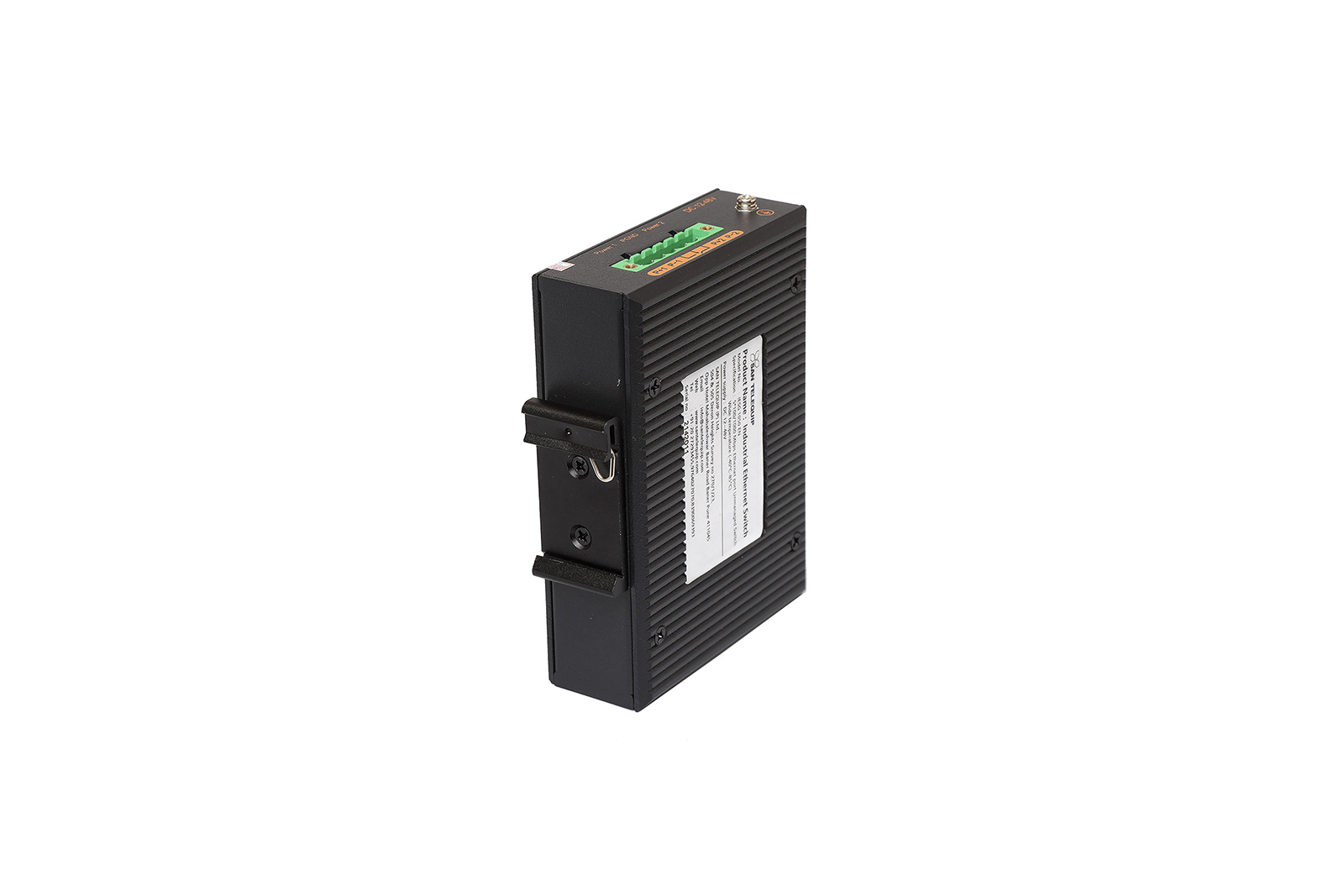

Installation: DIN-Rail
Dimensions : 118 x 86 x 39mm
Weight: 0.6KG
Storage Temperature: -45⁰C to 85⁰C
Relative Humidity: 5%~95 % (no condensation)
