Key Features & Benefits
1.Supports remote monitoring over 2G or 4G networks.
2.Connects up to 31 Modbus RTU slave devices.
3.Stores 1000 data records if the network drops.
4.Supports IoT protocols like MQTT, HTTP, and FTP.
5.Durable metallic enclosure with industrial DIN rail mounting.
6.Battery backed RTC enables accurate data time stamping.
7.Includes seven inputs and outputs for monitoring.
PRODUCT CATEGORIES
Introduction

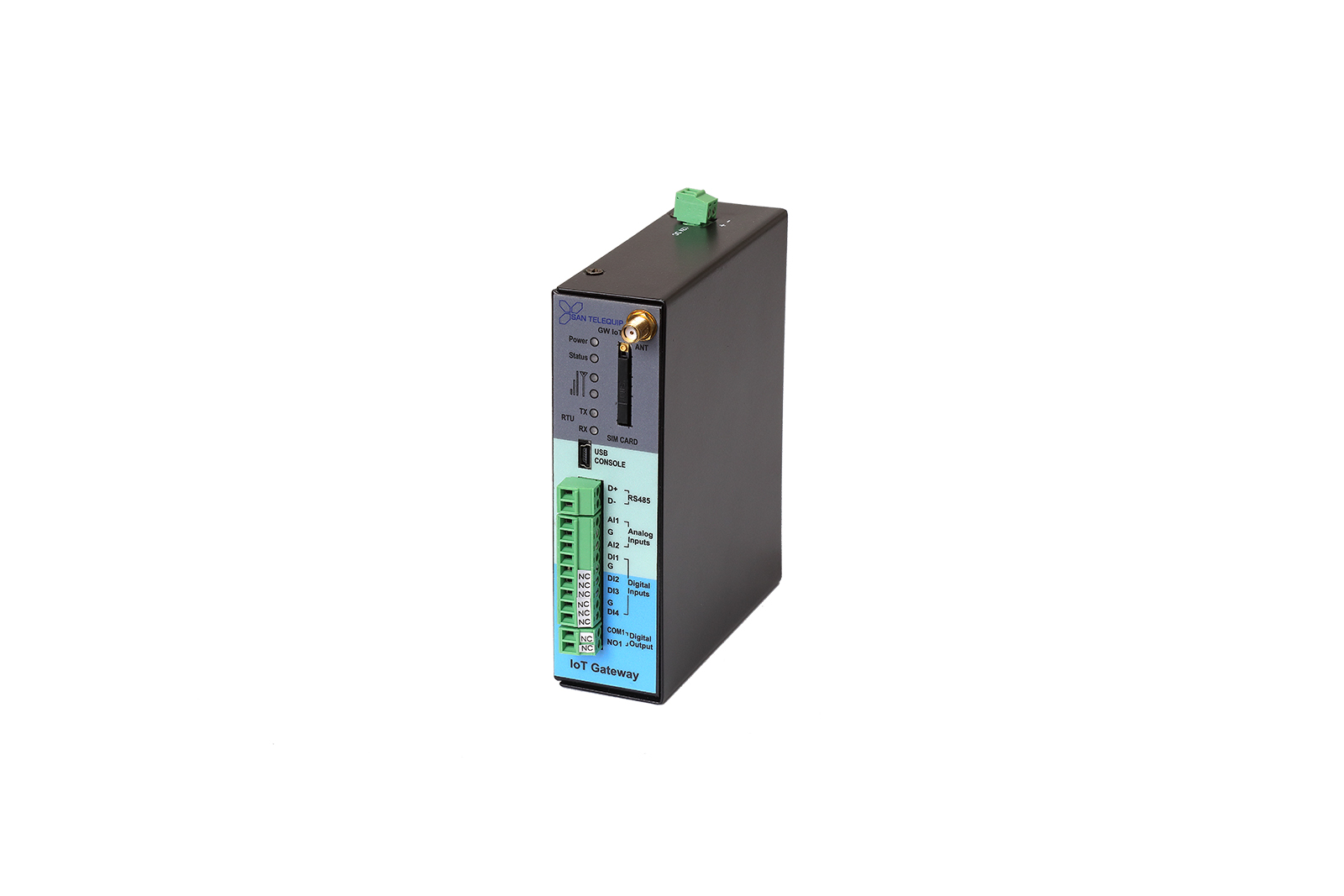

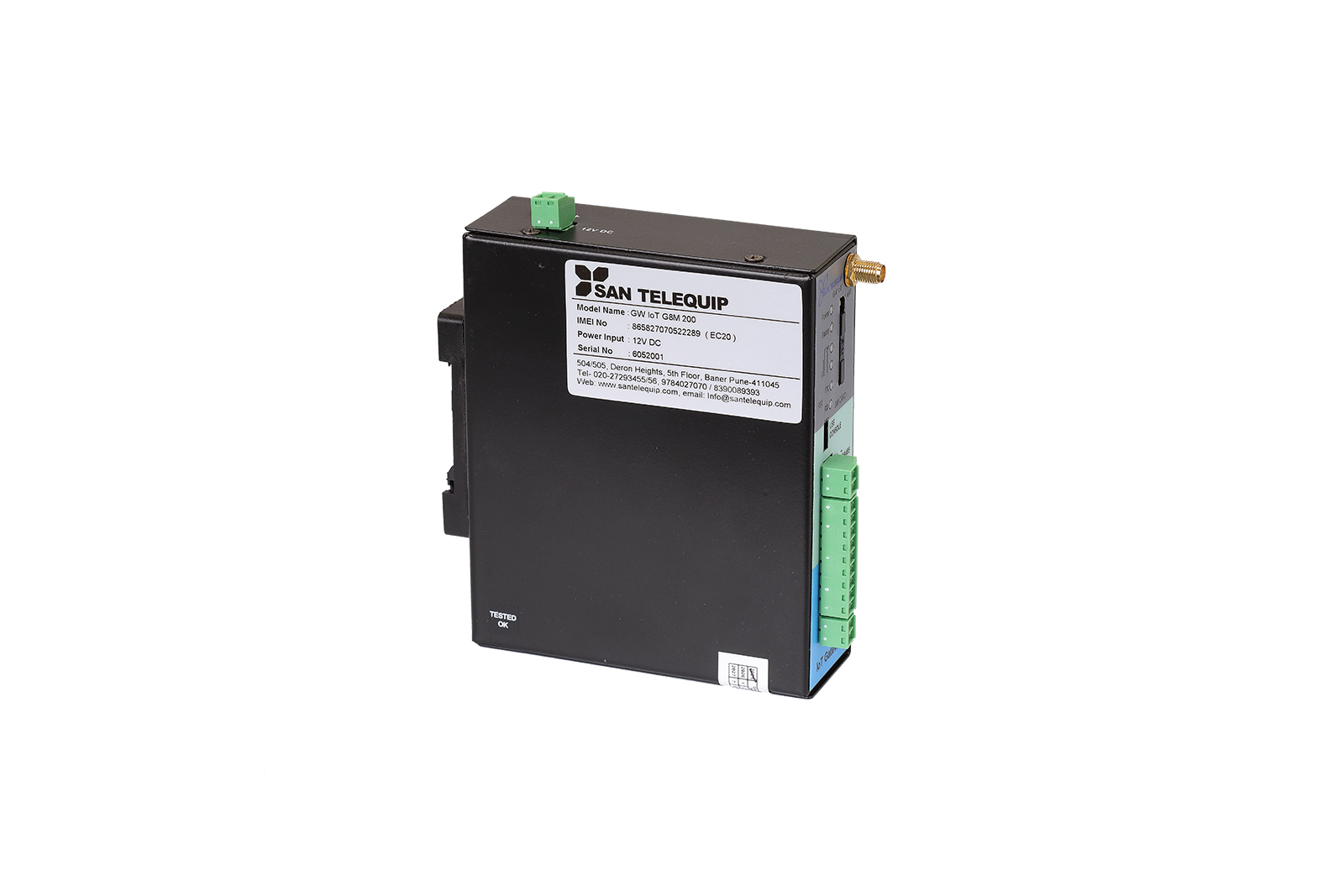

The GW IoT G8M 241 Gateway is a robust industrial device designed for remote monitoring, control, and data acquisition from multiple field equipments over 4G/LTE cellular networks. Acting as a Modbus RTU Master, it communicates with multiple Modbus slave devices at a single site and transmits structured JSON data to cloud or central monitoring servers using IoT protocols such as MQTT, HTTP, and FTP. In addition to serial communication, the gateway integrates 7 onboard I/Os—4 Digital Inputs, 2 Analog Inputs, and 1 Digital Outputs—enabling direct monitoring and remote operation of field signals and actuators. Designed for industrial panel installation, the gateway operates on a wide 12V DC power supply, ensuring reliable performance in demanding industrial environments.
Designed specifically for deployment within industrial panels, the GW IoT G8M 241 provides a dependable communication link for sites where physical access is difficult or costly. By seamlessly integrating Modbus devices and local I/O signals with cloud-based IoT platforms, it empowers organizations to monitor asset performance, track process and environmental parameters, and perform remote control actions with greater efficiency, reliability, and operational control.
Bandwidth:
• LTE FDD: Max. 150Mbps (DL) & 50Mbps (UL)
• LTE TDD: Max. 130Mbps (DL) & 35Mbps (UL)
• DC-HSDPA: Max. 42Mbps (DL)
• HSUPA: Max. 5.76Mbps (DL)
• WCDMA: Max. 384Kbps (DL) / Max. 384Kbps (DL)
• TD-SCDMA: Max. 4.2Mbps (DL) / Max. 2.2Mbps (UL)
• EVDO: Max. 3.1Mbps (DL) / Max. 1.8Mbps (UL)
• 1x Advanced: Max. 307.2Kbps (DL/UL)
• EDGE: Max. 296Kbps (DL) / Max. 236.8Kbps (UL)
• GPRS: Max. 107Kbps (DL) / Max. 85.6Kbps (UL)
Output Power: < 35 dBm
Sensitivity: < -110 dBm
Data Storage: 8 MB memory (upto 1000 records for IO’s, 1000 for Modbus)
Modbus Support: Upto 31 slave devices, 500 registers
Analog Inputs: 2 (Factory settable 4-20mA or 0-10V/0-5V), 10-bit resolution, Input Impedance: Current 100 ohm / Voltage 10 T ohms
Digital Inputs: 4 (Potential Free)
Digital Output: 1 (Relay Contact Rating: 24VDC @ 10A, 230VAC @ 5A)
Console: Mini USB port (USB 2.0 compatible)
Power Consumption (No Communication): 0.9 W @ 12V DC
Power Consumption (Data Communication): 1.92W @ 12V DC
Dimensions: 36 x 105 x 127 mm (Excluding antenna)
Relative Humidity: 90 % Rh non-condensing
