Key Features & Benefits
1.Modbus RTU master support for field devices
2.IoT protocol support: HTTP GET/POST & MQTT
3.Wi-Fi and WAN Ethernet connectivity
4.8 MB onboard buffer for outage data storage
5.USB console for local configuration & debugging
6.Battery-backed RTC for accurate timestamps
7.Configurable data upload scheduling
PRODUCT CATEGORIES
Introduction

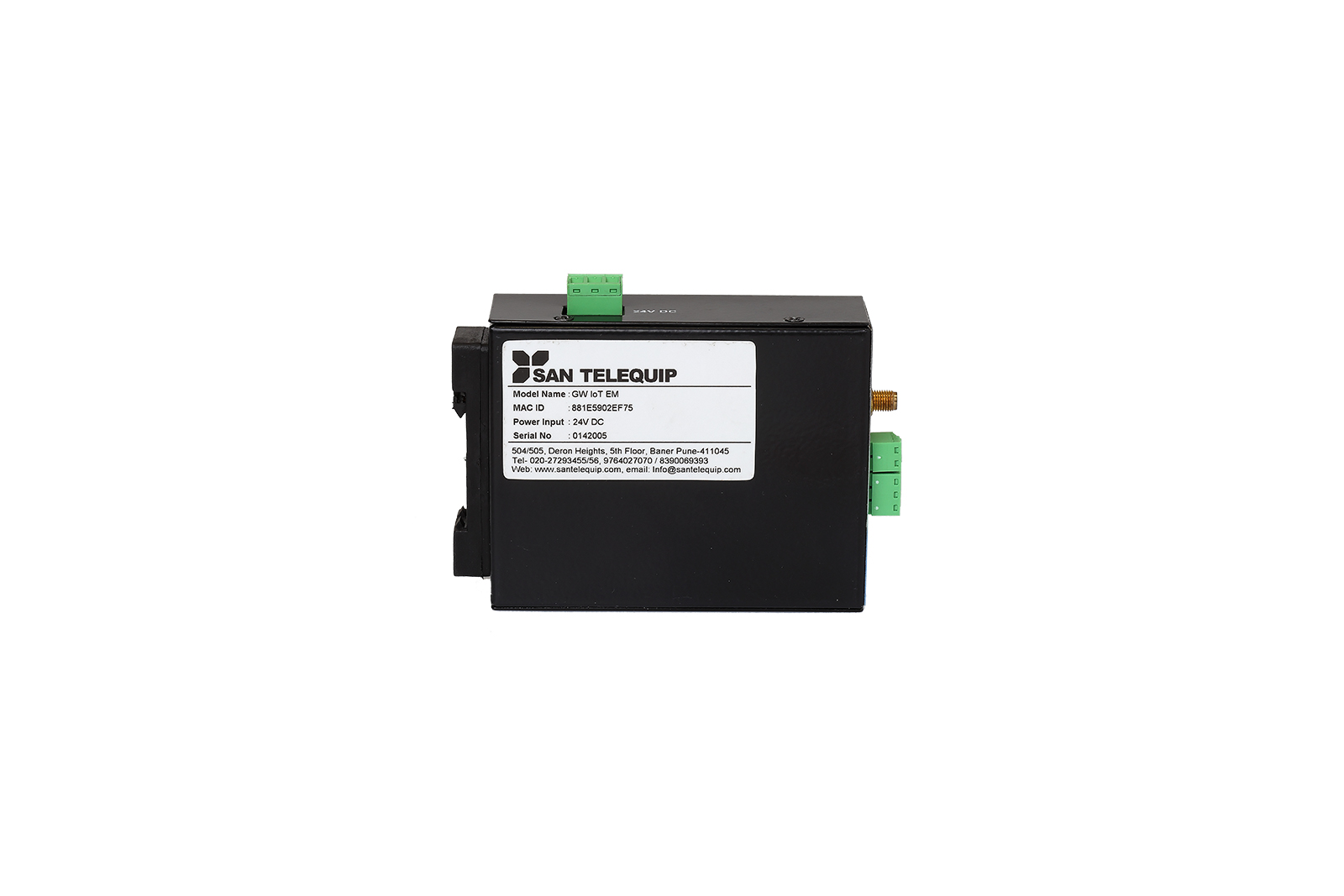

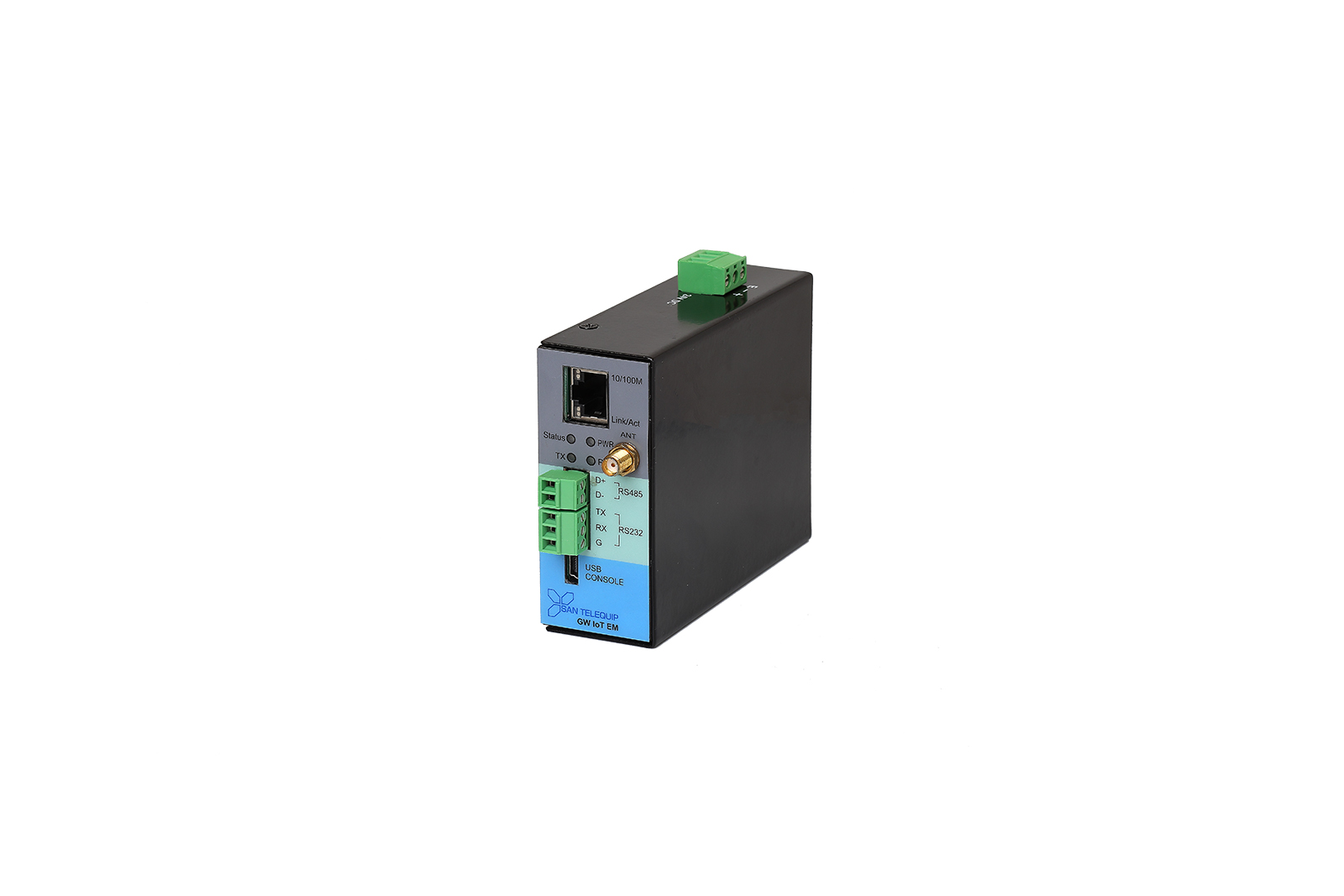

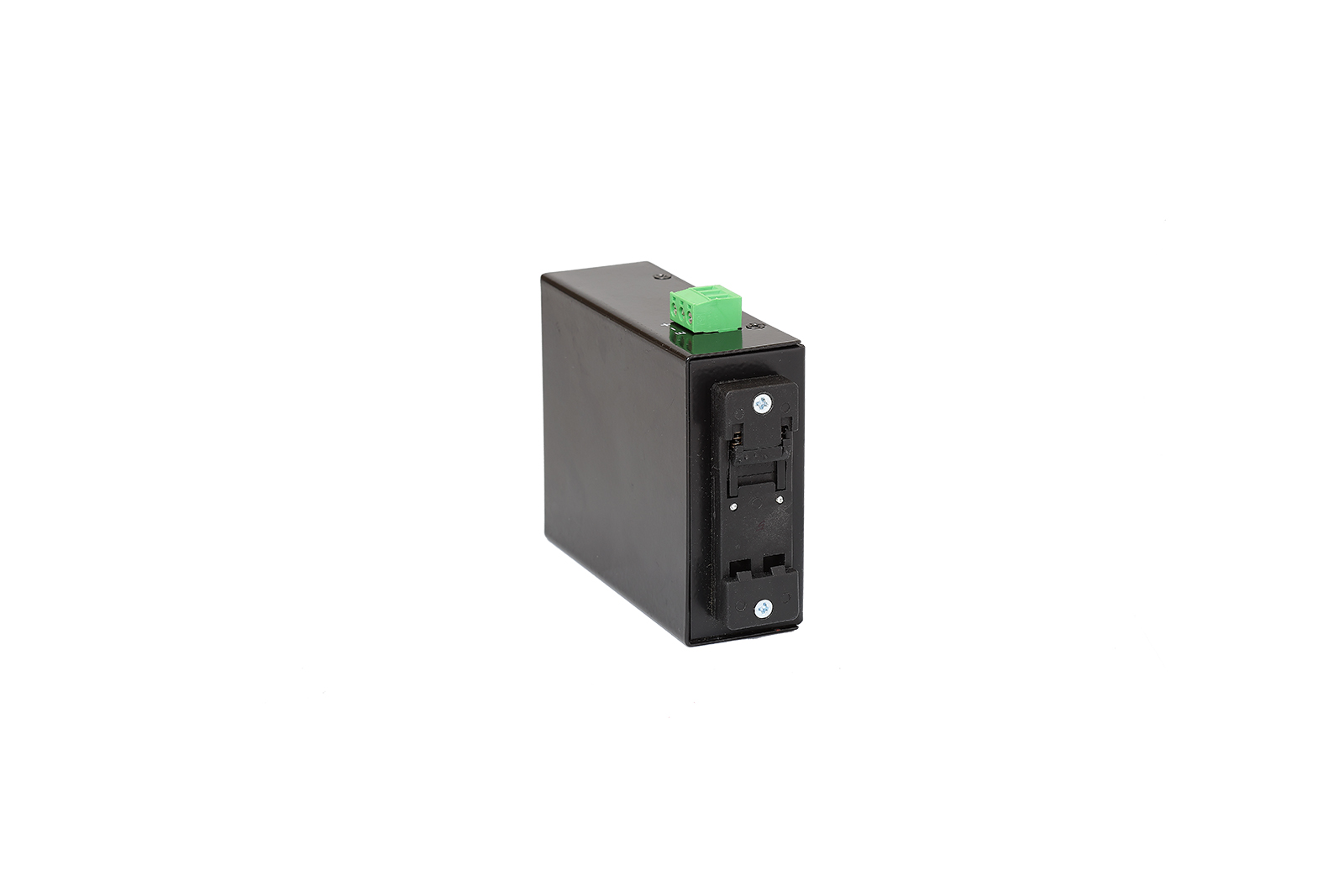

The GW IoT EM is an industrial gateway engineered specifically to solve these challenges. It serves as a rugged and reliable bridge connecting multiple Modbus slave devices in the field to a central, web-based application server. By leveraging both Ethernet WAN and WiFi for network connectivity, the GW IoT EM provides a flexible and powerful solution for remote data acquisition and monitoring. It consolidates data from various sensors, meters, and controllers, transmitting it securely to a public cloud or a private server. Configuration and diagnostics are simplified through an integrated internal web server, accessible via a standard browser.
Functioning as a Modbus master, the gateway communicates with field devices over a factory-settable RS232 or RS485 serial interface. The unit is designed for simple integration into industrial control panels, featuring a compact form factor and operating on a wide-range 9V-30V DC power supply. The following sections detail the specific features and technical specifications that make the GW IoT EM an ideal choice for demanding Industrial IoT (IIoT) applications.
Performance: 10 / 100 Mbps (Auto Detect), Auto MDI/MDI-X
Setup: HTTP Browser (IE)
Security: Login Password
Protection: Built-in 1.5KV Magnetic Isolation
Performance (Bandwidth): IEEE802.11 b/g: 54 Mbps (Max); IEEE802.11n: 150 Mbps (Max)
Security: WEP, WPA, WPA2 etc. Tx Power: 20dBm (11n), 24dBm (11g), 26dBm (11b)
RX Sensitivity: <-72dBm@54Mpbs
Connector: Screw type connector
Configuration: Data bits: 5,6,7,8; Stop bits: 1,2; Parity: None, Even, Odd
Performance (Baud Rate): 2400 to 115200 bps
Operating Range: 9V to 30V DC
(Note: Source also specifies 18V-36V for terminal block operation; confirm for specific application)
Connector: Screw type connector Adapter: External 230 AC adapter, 24V DC, 1A
Dimensions: 36 x 105 x 127 mm (Excluding Antenna)
Relative Humidity: 90 % Rh non-condensing
