Introduction

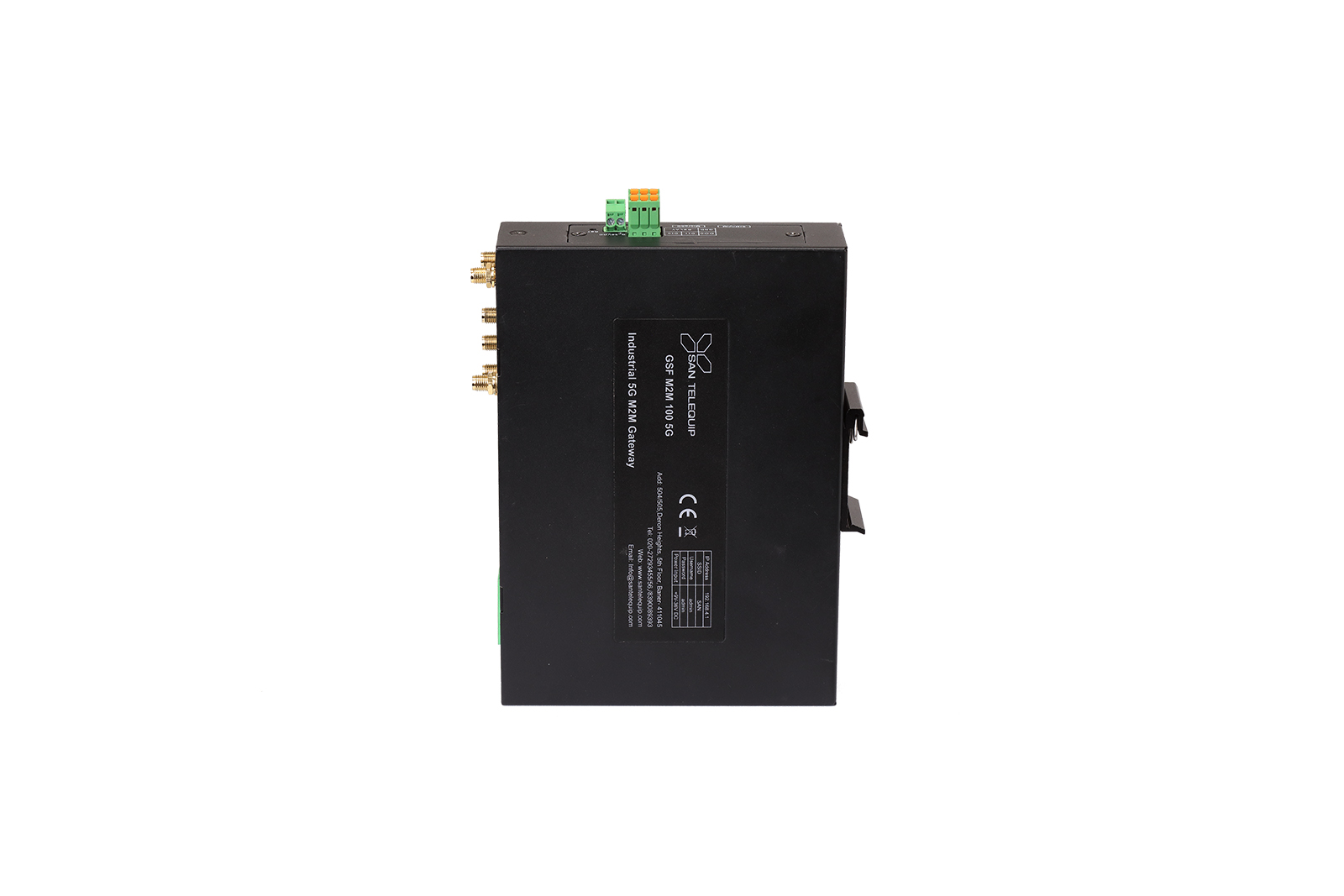

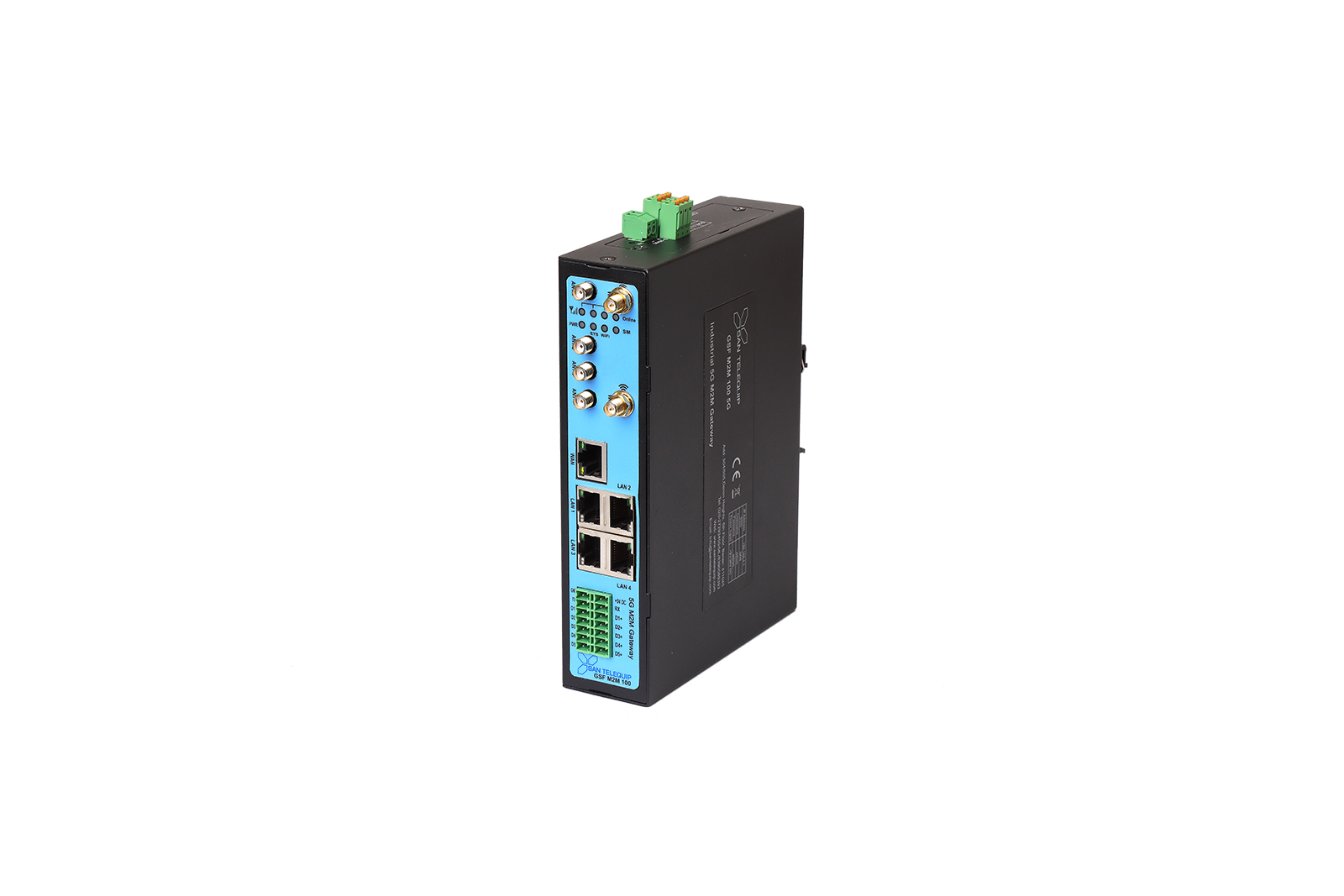

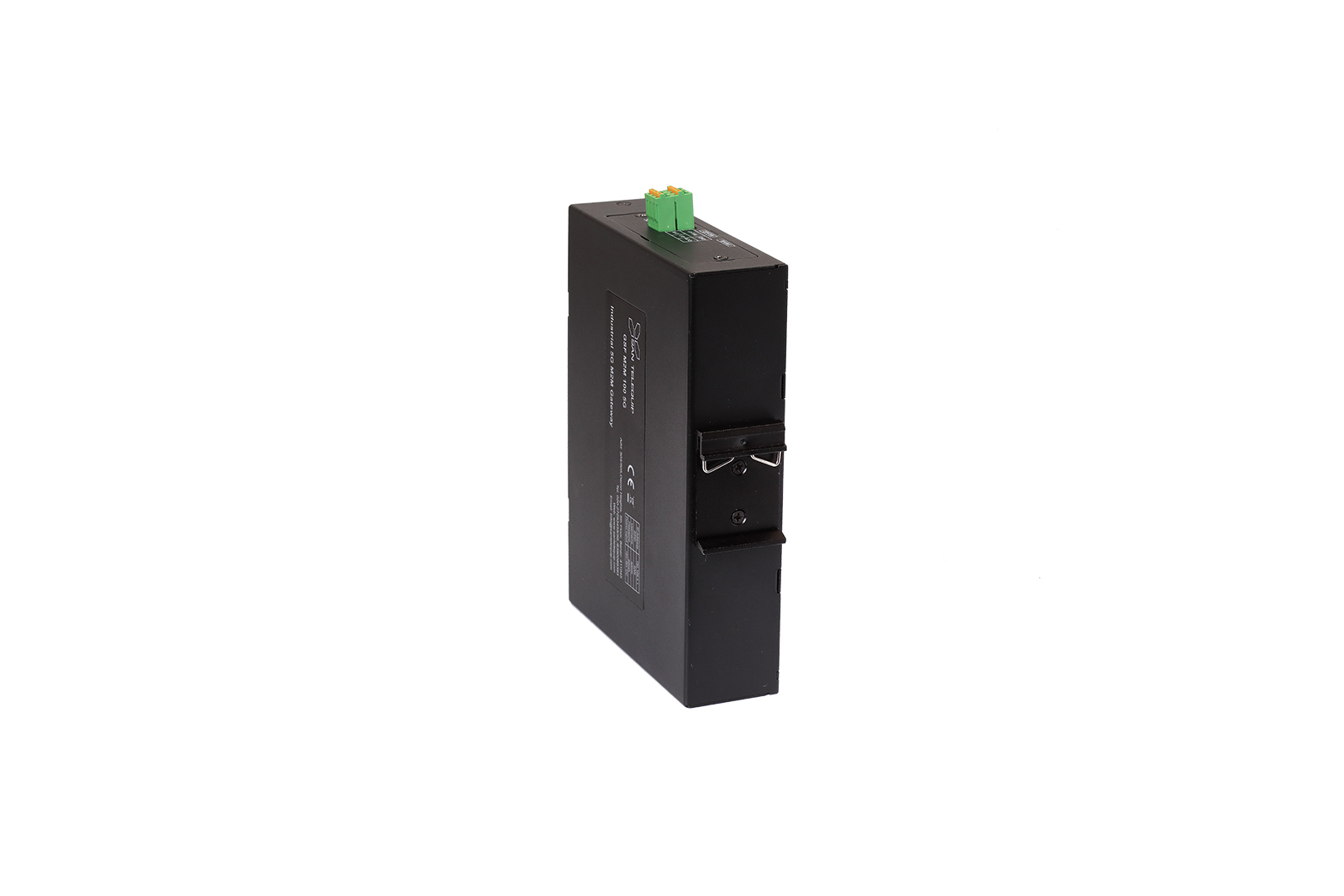

The GSF M2M 100 5G is a 5G IoT wireless intelligent gateway engineered to provide users with long-distance, high-volume data transmission over public 4G and 5G networks. At its core, the device is built upon a high-performance industrial-grade 32-bit communication processor and industrial-grade wireless modules. It operates on an embedded real-time operating system, ensuring stability and deterministic performance for mission-critical tasks.
To facilitate seamless integration into diverse industrial environments, the GSF M2M 100 5G is equipped with a comprehensive set of physical interfaces. These include one RS232 port, five RS485 ports for serial communication with legacy equipment, four Gigabit Ethernet LAN ports for local network connectivity, and one Gigabit WAN port for wired internet access. This combination of processing power and versatile connectivity establishes the GSF M2M 100 5G as a powerful and adaptable solution for demanding industrial applications. The following sections detail the specific features that enable this level of performance and reliability.
IEEE802.11n: 300Mbps
IEEE802.11ac: 780Mbps
5G NR: Downlink 3.4Gbps, Uplink 350Mbps
LTE Cat20: Downlink 2.0Gbps, Uplink 150Mbps
HSPA+: Downlink 42Mbps, Uplink 5.76 Mbps
Transmit Power: <23dBm
Receiving Sensitivity: <-97dBm
Hardware CPU: Industrial grade 32-bit communication processor
Memory: FLASH: 32MB
DDR3: 512MB
LAN Ports: 4 x 10/100/1000M Ethernet (RJ45), Adaptive MDI/MDIX, Built-in 1.5KV ESD Protection
Serial Ports: 1 x RS232, 5 x RS485 (One shared with RS232), Built-in 1.5KV ESD Protection
Serial Port Parameters
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5 (Optional), 2
Check: no, even, odd, SPACE (Optional), MARK (Optional)
Speed: 2400 to 115200bits/s
I/O Interface : 2xDI, 1xDO, 1xRelay (on 6-pin 3.5mm terminal block)
Input high level: 5 to 30 VDC
Input low level: 0 to 3 VDC
Load current: <50mA @ 30VDC
Relay load: 1A 250VAC / 30VDC
Antenna Connectors:
Cellular: 4 standard SMA female (5G version)
WIFI: 2 standard SMA male
SIM/UIM Interface: Standard drawer-type (2 SIM card), supports 1.8V/3V cards, Built-in 15KV ESD protection
Storage: Standard bullet TF card interface (or built-in eMMC)
USB: Standard USB 3.0 interface
Range: DC 9V to 36V
Power Protection Built-in power reverse phase protection
Power Consumption: <1.2A (12V)
Standby Current: <800mA (12V)
Dimensions: 172 x 122 x 38 mm (Excluding antennas and mounts)
Weight: 700g
Storage Temperature: -40°C to +85°C
Relative Humidity: 95% (No condensation)
